Flexplate Inspection

  1. Inspect the flexplate for:
    1. any cracks.
    2. worn ring gear teeth.
    3. chipped or cracked ring gear teeth.

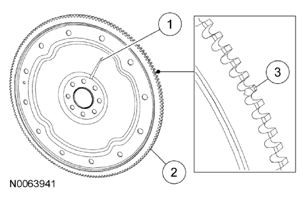

      Fig 1: Identifying Flexplate Cracks And Worn Ring Gear Teeth
      G07806436Courtesy of FORD MOTOR CO.
