Input Shaft Exploded View

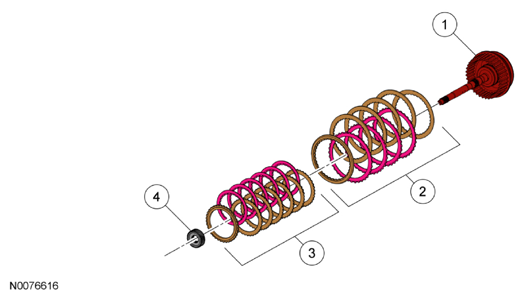

Fig 1: Exploded View Of Input Shaft
G07809287Courtesy of FORD MOTOR CO.
Item Part Number Description
1 7G384 Input shaft (part of direct/overdrive clutch assembly)
2 - Direct clutch
3 - Overdrive clutch
4 7D063 Center planetary sun gear
