Interior Lighting Control Module Connector - C2392

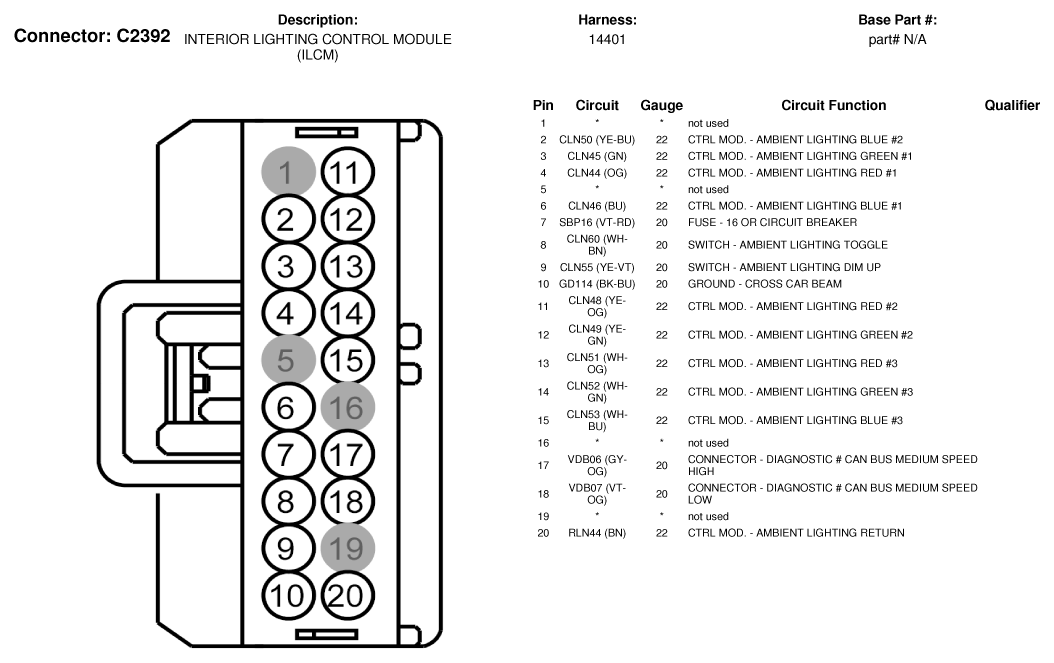

Fig 1: Interior Lighting Control Module Connector End View (C2392)

G07340139

Courtesy of FORD MOTOR CO.
