Home >> Ford >> 2011 >> Taurus SE >> Repair and Diagnosis (Single Page) >> Quick Lookups >> Wiring Diagrams >> OEM Connector End Views >> Connector Views >> Cruise Control Module Connector - C1582

Cruise Control Module Connector - C1582

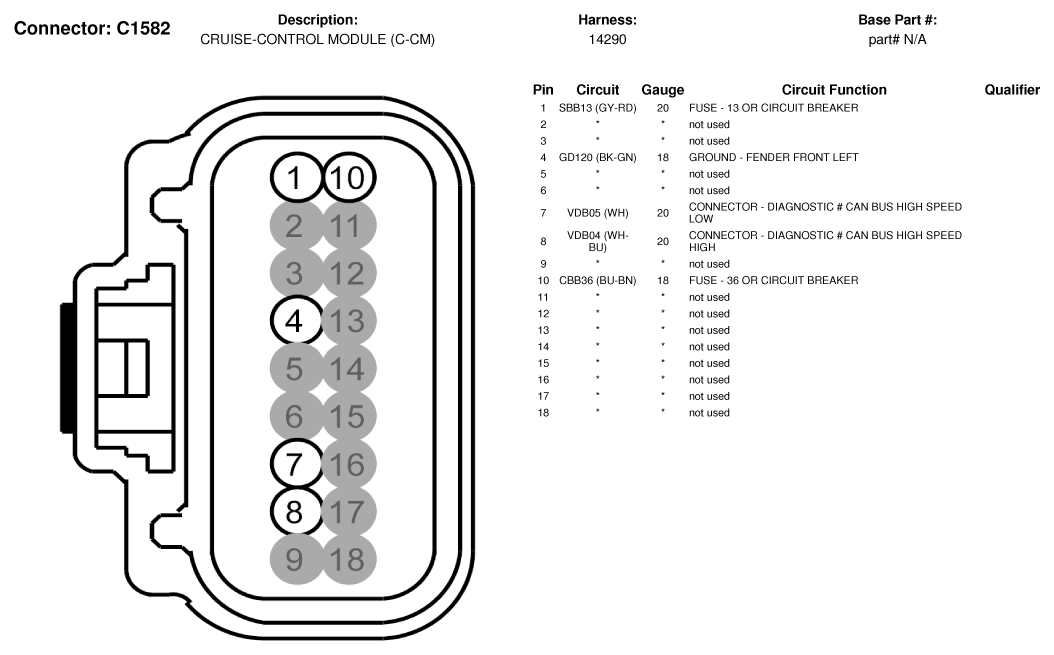

Fig 1: Cruise Control Module Connector End View (C1582)

G07340094

Courtesy of FORD MOTOR CO.
