Multifunction Switch, Wiper/Washer Portion: Schematic

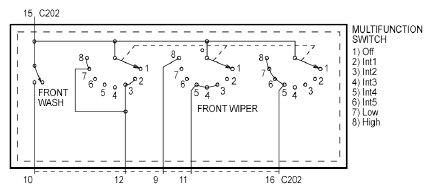

Fig 1: Multifunction Switch, Wiper/Washer Portion - Schematic

G07337044

Courtesy of FORD MOTOR CO.
