RH Splash Shield

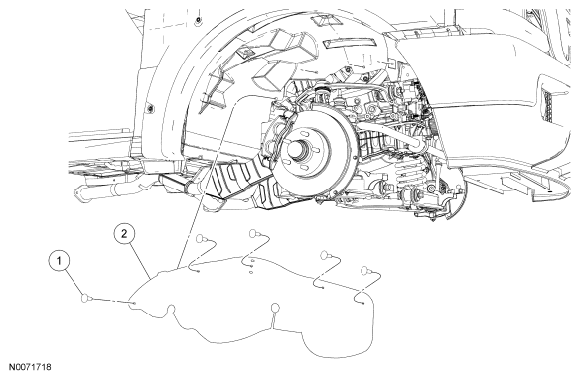

Fig 1: Identifying Splash Shield With Splash Shield Pushpins - RH
G06181625Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - RH splash shield pushpin (5 required)
2 16034 RH splash shield
  1. For additional information, refer to the appropriate procedures in this service information.
