Ignition System Components

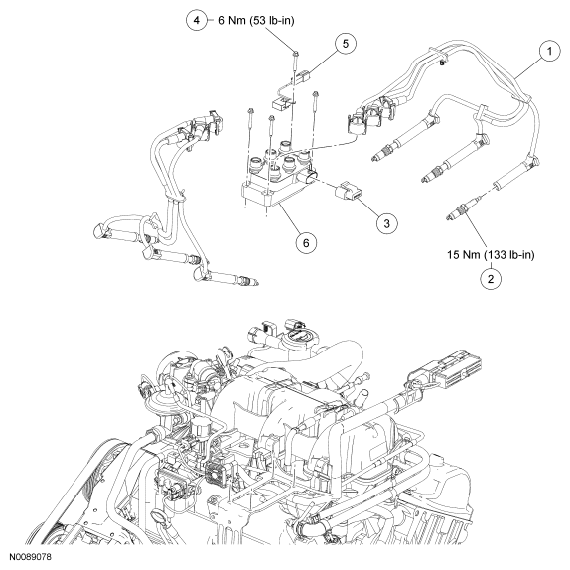

Fig 1: Exploded View Of Engine Ignition Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	12286	Spark plug wire (6 required)
2	12405	Spark plug (6 required)
3	14A464	Ignition coil electrical connector (part of 12B637)
4	W706216	Ignition coil bolt (4 required)
5	18801	Radio ignition interference capacitor
6	12029	Ignition coil
