Clutch System Components

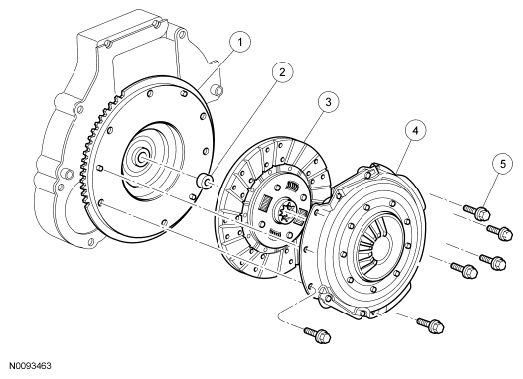

Fig 1: Exploded View Of Clutch System Components
G06183609Courtesy of FORD MOTOR CO.
Item Part Number Description
1 6375 Flywheel
2 7600 Pilot bearing
3 7550 Clutch disc
4 7563 Clutch pressure plate
5 - Clutch pressure plate bolt (6 required)
