Power Steering Fluid Cooler: Notes

MATERIAL

Item	Specification
MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada)	MERCON® V

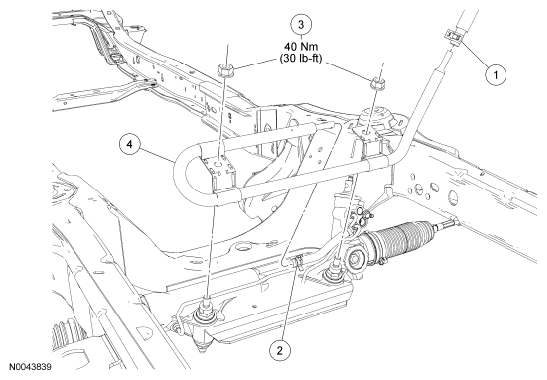

Fig 1: Exploded View Of Power Steering Fluid Cooler With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	3A713B	Power steering fluid cooler hose
2	3A713A	Power steering fluid cooler hose
3	N800169	Power steering fluid cooler nuts (2 required)
4	3F780	Power steering fluid cooler
