Transmission Control Switch Connector - C279
Transmission Control Switch Connector - C279

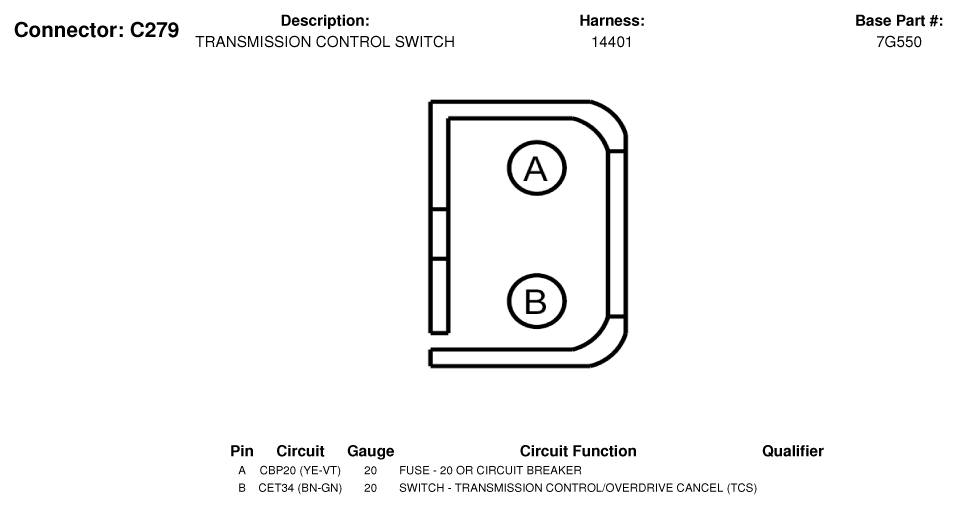

Fig 1: Transmission Control Switch Connector End View (C279)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
