Speed Control Set/Resume Switch Connector - C2177

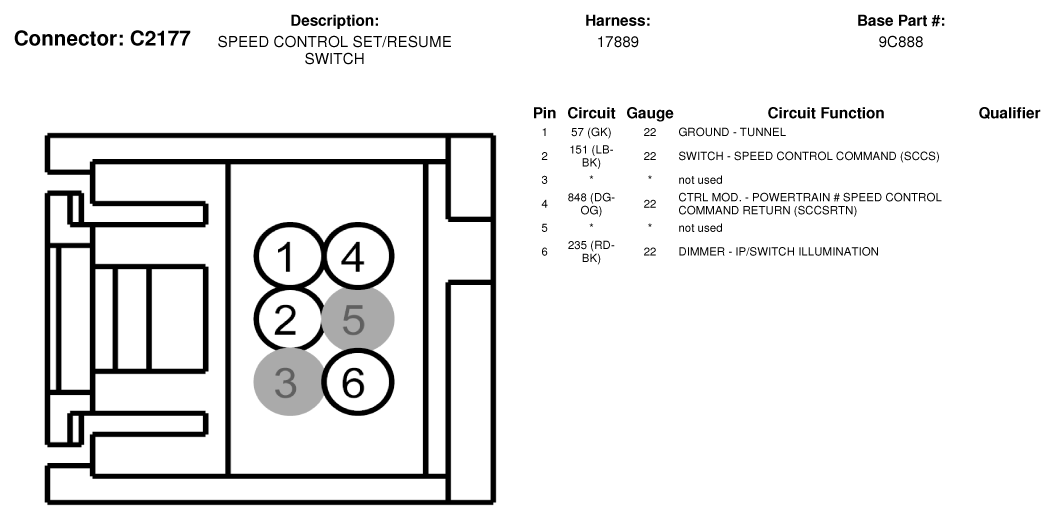

Fig 1: Speed Control Set/Resume Switch Connector End View (C2177)

G07337015

Courtesy of FORD MOTOR CO.
