Speed Control Servo Connector - C122

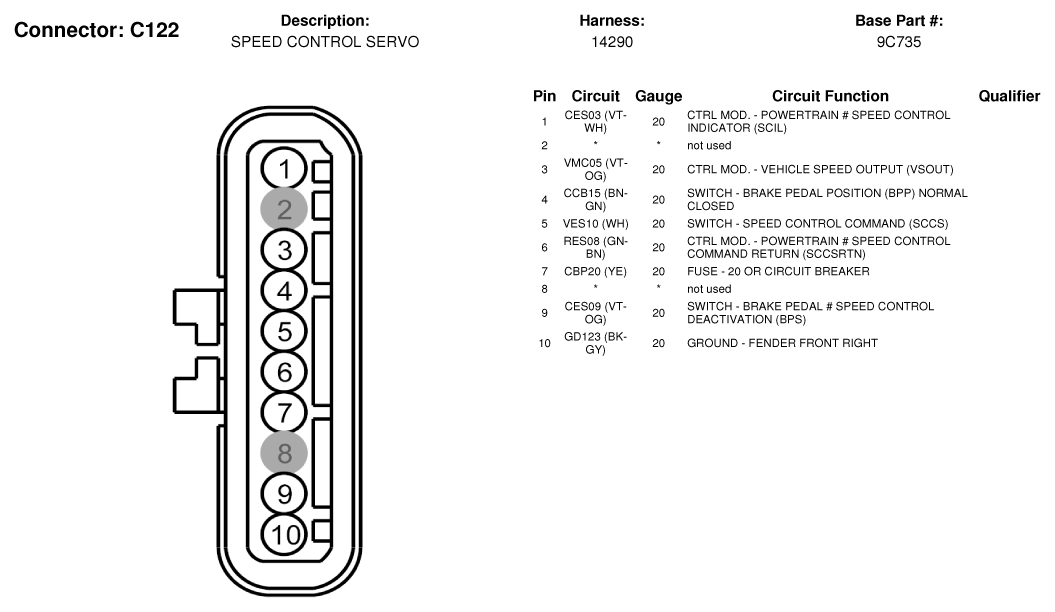

Fig 1: Speed Control Servo Connector End View (C122)

G07336840

Courtesy of FORD MOTOR CO.
