Seat Backrest - Front, 60 Percent: Notes
WARNING: This page is about a different car, the 2009 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

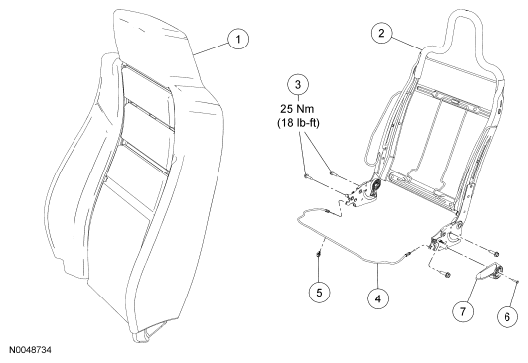

PART NUMBER REFERENCE
| Item | Part Number | Description |
|---|---|---|
| 1 | 64416/64810 | Backrest trim cover/foam pad |
| 2 | 61018 | Backrest frame |
| 3 | 60108 | Backrest-to-cushion bolts (4 required) |
| 4 | 624A54 | Backrest latch release cable |
| 5 | - | Pin-type retainer |
| 6 | 56904 | Recliner handle screw |
| 7 | 610A77 | Recliner handle |
