Satellite Digital Audio Receiver System (SDARS) Module: Notes
WARNING: This page is about a different car, the 2009 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

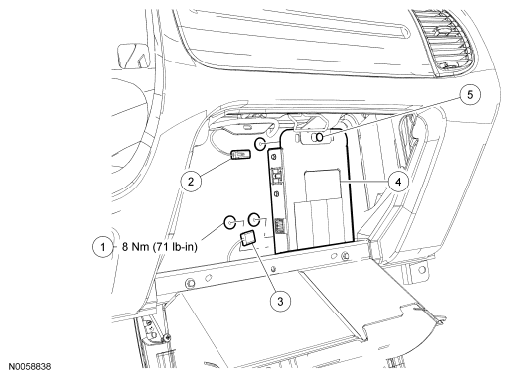

Fig 1: Satellite Digital Audio Receiver System (SDARS) Module Replacement Components With Torque Specifications
ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | N811309 | Satellite Digital Audio Receiver System (SDARS) module nuts (3 required) |
| 2 | - | Satellite antenna cable (part of 19A397) |
| 3 | - | SDARS module electrical connector (part of 14401) |
| 4 | 18C963 | SDARS module |
| 5 | W707293 | SDARS module J-stud (3 required) |
