Seat Position Sensor: Notes

WARNING: This page is about a different car, the 2009 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: 60 percent seat track shown in illustration, 40 percent similar.

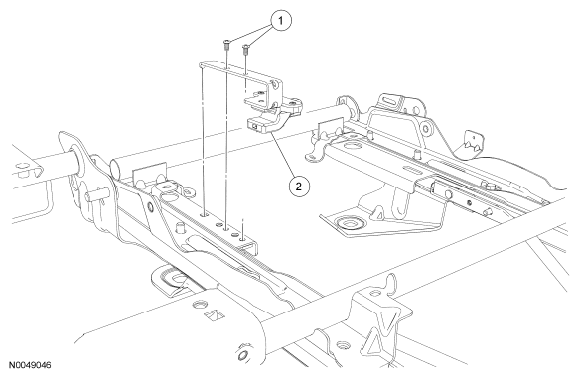

Fig 1: Identifying Seat Position Sensor Components

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	-	Seat position sensor bracket screws
2	14B416	Seat position sensor and bracket
