Special Tool(s)
WARNING: This page is about a different car, the 2009 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL(S) SPECIFICATION
| Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool |
NOTE:

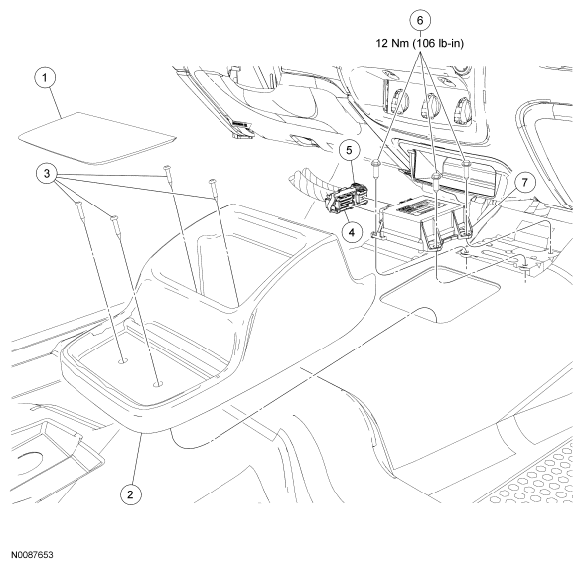

Vehicle with consolette tray shown in illustration.
ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Consolette tray mat (part of 045A36) |
| 2 | 045A36 | Consolette tray |
| 3 | - | Consolette tray screws (4 required) (part of 045A36) |
| 4 | - | Restraints Control Module (RCM) large electrical connector (part of 14401) |
| 5 | - | RCM small electrical connector (part of 14401) |
| 6 | W701963 | RCM bolts (3 required) |
| 7 | 14B321 | RCM |
