Driveshaft - Front
WARNING: This page is about a different car, the 2009 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

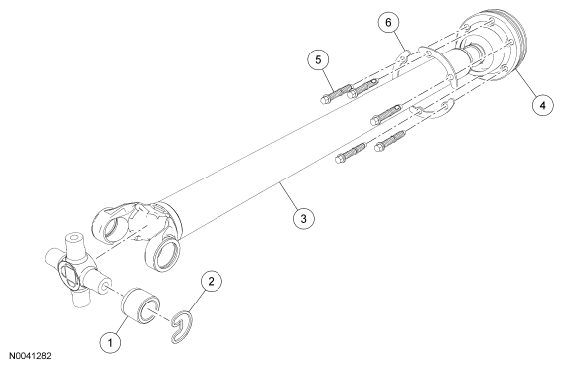

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 4635 | U-joint |
| 2 | - | Snap ring (part of 4635) (2 required) |
| 3 | 4A376 | Front driveshaft |
| 4 | - | CV joint (part of 4A376) |
| 5 | 4B496 | CV joint bolt and washer (6 required) |
| 6 | - | CV joint retainer (part of 4B496) (3 required) |
- For additional information, refer to the appropriate procedure .
