Manifold Absolute Pressure (MAP) Sensor - 2.3L: Notes

WARNING: This page is about a different car, the 2009 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

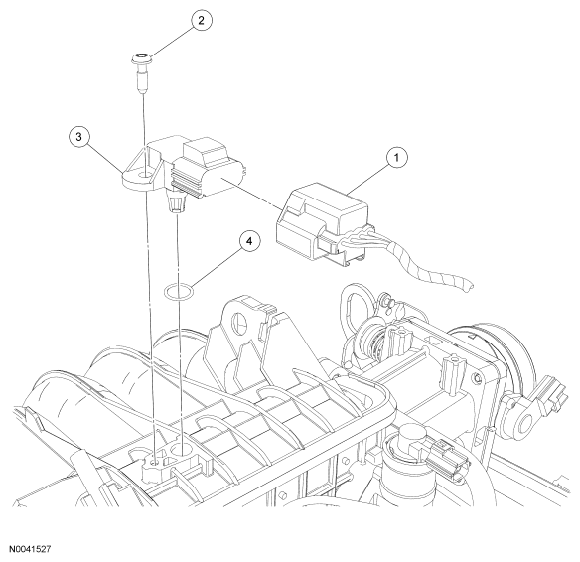

Fig 1: Identifying MAP Sensor With O-Ring Seal, Electrical Connector And Bolt

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	14A464	Manifold Absolute Pressure (MAP) sensor electrical connector
2	W701459	MAP sensor bolt
3	9F479	MAP sensor
4	-	MAP sensor O-ring seal
