Anti-Lock Brake System (ABS) Module: Notes

WARNING: This page is about a different car, the 2009 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

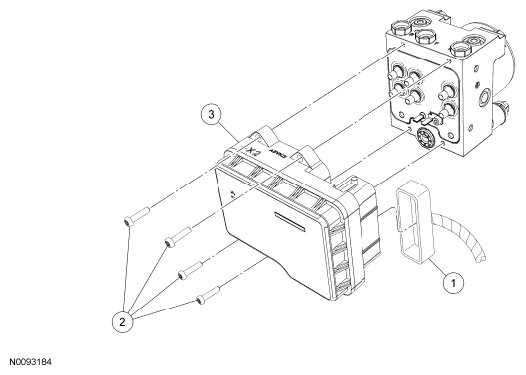

Fig 1: Identifying Anti-Lock Brake System (ABS) Module Components

ITEM PART NUMBER DESCRIPTION

Item	Part Number	Description
1	-	ABS module electrical connector (part of 14290)
2	-	ABS module bolts (4 required) (part of 2C219)
3	2C219	ABS module
