Front Brake Caliper Anchor Plate: Notes
WARNING: This page is about a different car, the 2009 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

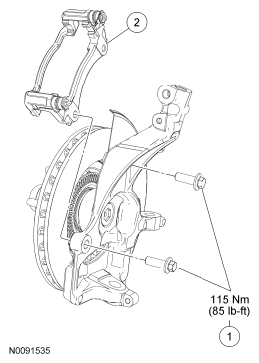

Rear Wheel Drive (RWD) shown in illustration, Four-Wheel Drive (4WD) similar.
Courtesy of FORD MOTOR CO. ITEM PART NUMBER DESCRIPTION
| Item |
Part Number |
Description |
| 1 |
W710701 |
Brake caliper anchor plate bolts |
| 2 |
2C396 |
Brake caliper anchor plate |
