Fuel Pump: Notes

SPECIAL TOOL(S)

G07800849
 Wrench, Fuel Tank Sender Unit
310-123

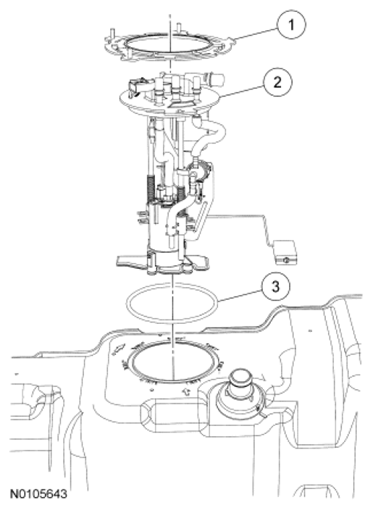

Fig 1: Exploded View Of Fuel Pump
G06516916Courtesy of FORD MOTOR CO.
Item Part Number Description
1 9C385 Fuel Pump (FP) locking ring
2 9H307 FP
3 9417 FP O-ring seal
