Component Location Charts

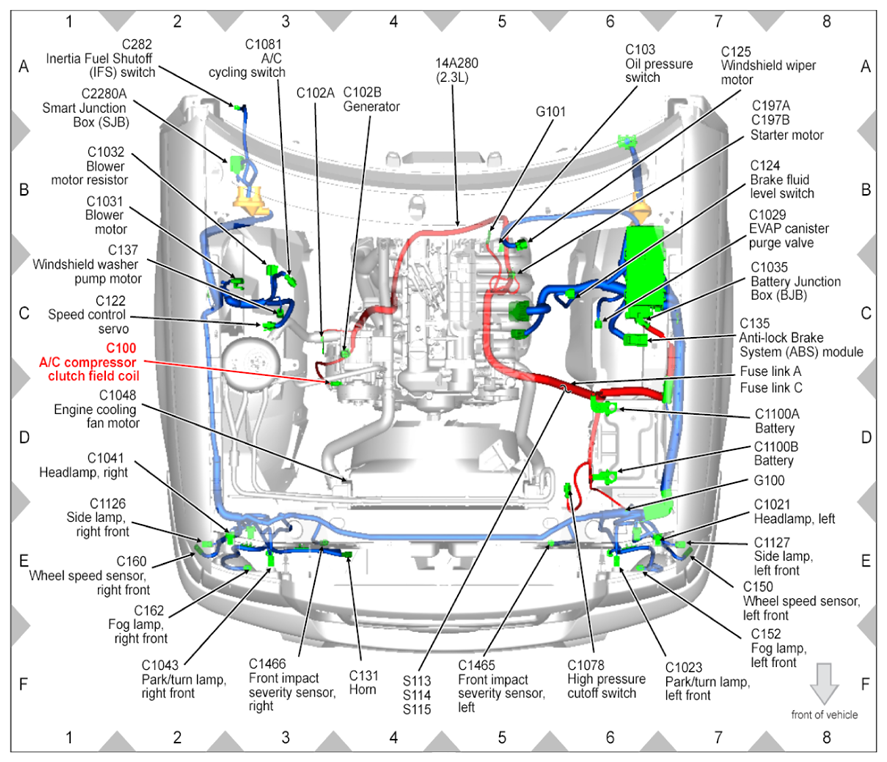

Fig 1: Identifying C100 A/C Compressor Clutch Field Coil Location - (2.3L) On Engine, Front, RH Side

Courtesy of FORD MOTOR CO.

Fig 2: Identifying C100 A/C Compressor Clutch Field Coil Location - (4.0L) Engine Compartment, LH Side, Front

Courtesy of FORD MOTOR CO.

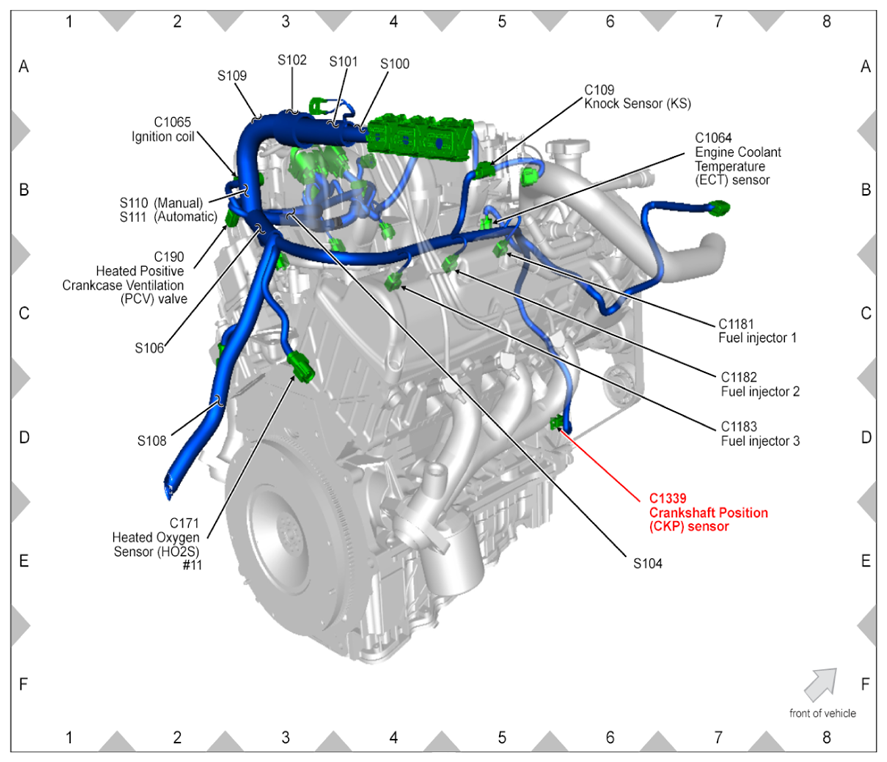

Fig 3: Identifying C101 Crankshaft Position (CKP) Sensor Location - (2.3L) On Engine

Courtesy of FORD MOTOR CO.

Fig 4: Identifying C102A Connector Location - (2.3L) Engine, Front, RH Side

Courtesy of FORD MOTOR CO.

Fig 5: Identifying C102A Generator Location - (4.0L) Engine, Front, RH Side

Courtesy of FORD MOTOR CO.

Fig 6: Identifying C102B Generator Location - (2.3L) Engine, Front, RH Side

Courtesy of FORD MOTOR CO.

Fig 7: Identifying C102B Connector Location - (4.0L) Engine, Front, RH Side

Courtesy of FORD MOTOR CO.

Fig 8: Identifying C103 Oil Pressure Switch Location - (2.3L) On Engine

Courtesy of FORD MOTOR CO.

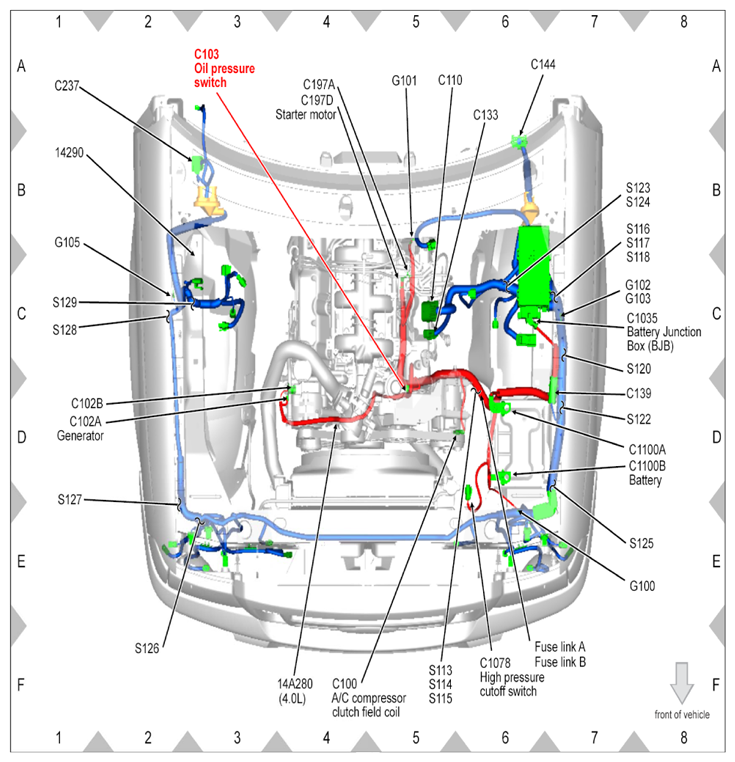

Fig 9: Identifying C103 Oil Pressure Switch Location - (4.0L) On Engine, LH Side, Front

Courtesy of FORD MOTOR CO.

Fig 10: Identifying C107 Cylinder Head Temperature (CHT) Sensor Location - (2.3L) On Engine

Courtesy of FORD MOTOR CO.

Fig 11: Identifying C108 Knock Sensor (KS) Location - (2.3L) On Engine

Courtesy of FORD MOTOR CO.

Fig 12: Identifying C109 Knock Sensor (KS) Location - (4.0L) On Engine

Courtesy of FORD MOTOR CO.

Fig 13: Identifying C110 Connector Location - Engine Compartment, LH Side

Courtesy of FORD MOTOR CO.

Fig 14: Identifying C110 Connector Location - (2.3L) Engine Compartment, LH Side

Courtesy of FORD MOTOR CO.

Fig 15: Identifying C110 Connector Location - (4.0L) Engine Compartment, LH Side

Courtesy of FORD MOTOR CO.

Fig 16: Identifying C122 Speed Control Servo Location - Engine Compartment, RH Side, Rear

Courtesy of FORD MOTOR CO.

Fig 17: Identifying C124 Brake Fluid Level Switch Location - Engine Compartment, LH Side, Rear

Courtesy of FORD MOTOR CO.

Fig 18: Identifying C125 Windshield Wiper Motor Location - Engine Compartment, LH Side, Rear

Courtesy of FORD MOTOR CO.

Fig 19: Identifying C131 Horn Location - Engine Compartment, RH Side, Front

Courtesy of FORD MOTOR CO.

Fig 20: Identifying C133 Connector Location - Engine Compartment, LH Side

Courtesy of FORD MOTOR CO.

Fig 21: Identifying C133 Connector Location - (2.3L) Engine Compartment, LH Side

Courtesy of FORD MOTOR CO.

Fig 22: Identifying C133 Connector Location - (4.0L) Engine Compartment, LH Side

Courtesy of FORD MOTOR CO.

Fig 23: Identifying C135 Anti-lock Brake System (ABS) Module Location - Engine Compartment, LH Side, Front

Courtesy of FORD MOTOR CO.

Fig 24: Identifying C137 Windshield Washer Pump Motor Location - Engine Compartment, RH Side, Rear

Courtesy of FORD MOTOR CO.

Fig 25: Identifying C139 Connector Location - Engine Compartment, LH Side

Courtesy of FORD MOTOR CO.

Fig 26: Identifying C141 Heated Oxygen Sensor (HO2S) #22 Location - In Exhaust System

Courtesy of FORD MOTOR CO.

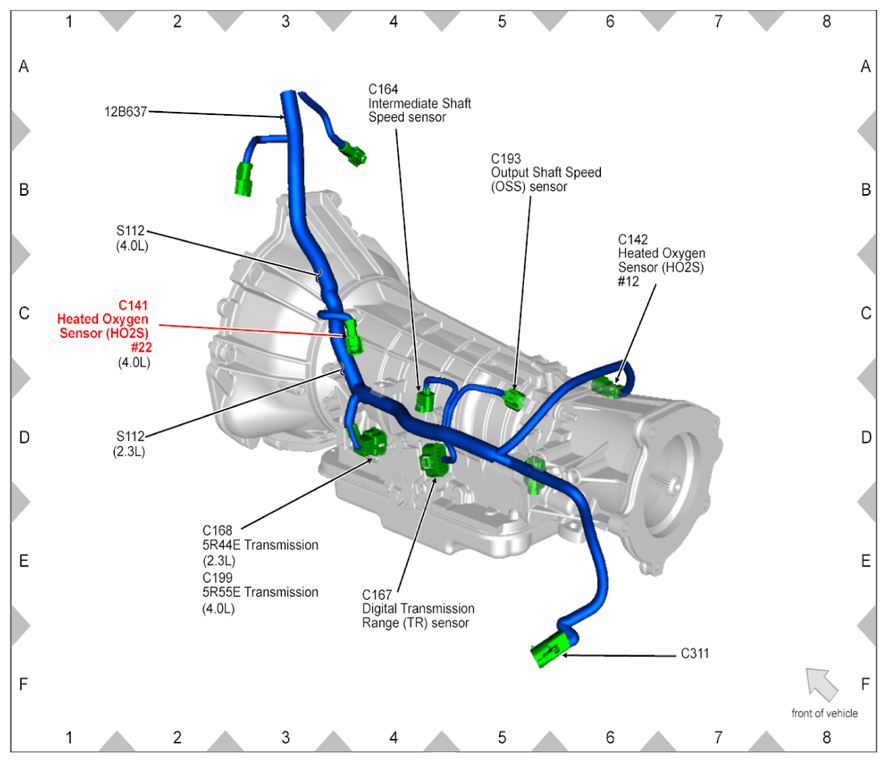

Fig 27: Identifying C141 Heated Oxygen Sensor (HO2S) #22 Location - (4.0L) In Exhaust System

Courtesy of FORD MOTOR CO.

Fig 28: Identifying C142 Heated Oxygen Sensor (HO2S) #12 Location - In Exhaust System

Courtesy of FORD MOTOR CO.

Fig 29: Identifying C144 Connector Location - Behind Dash Panel, LH Side

Courtesy of FORD MOTOR CO.

Fig 30: Identifying C150 Wheel Speed Sensor, Left Front Location - Engine Compartment, LH Side, Front

Courtesy of FORD MOTOR CO.

Fig 31: Identifying C152 Fag Lamp, Left Front Location - Engine Compartment, LH Side, Front

Courtesy of FORD MOTOR CO.

Fig 32: Identifying C160 Wheel Speed Sensor, Right Front Location - Engine Compartment, RH Side, Front

Courtesy of FORD MOTOR CO.

Fig 33: Identifying C162 Fag Lamp, Right Front Location - Engine Compartment, RH Side, Front

Courtesy of FORD MOTOR CO.

Fig 34: Identifying C164 Intermediate Shaft Speed Sensor Location - On Transmission

Courtesy of FORD MOTOR CO.

Fig 35: Identifying C167 Digital Transmission Range (TR) Sensor Location - On Transmission

Courtesy of FORD MOTOR CO.

Fig 36: Identifying C168 5R44E Transmission Location - (2.3L) Automatic Transmission

Courtesy of FORD MOTOR CO.

Fig 37: Identifying C169 Reversing Lamps Switch Location - On Transmission

Courtesy of FORD MOTOR CO.

Fig 38: Identifying C171 Heated Oxygen Sensor (HO2S) #11 Location - (2.3L) In Exhaust System

Courtesy of FORD MOTOR CO.

Fig 39: Identifying C171 Heated Oxygen Sensor (HO2S) #11 Location - (4.0L) In Exhaust System

Courtesy of FORD MOTOR CO.

Fig 40: Identifying C172 Heated Oxygen Sensor (HO2S) #21 Location - (4.0L) In Exhaust System

Courtesy of FORD MOTOR CO.

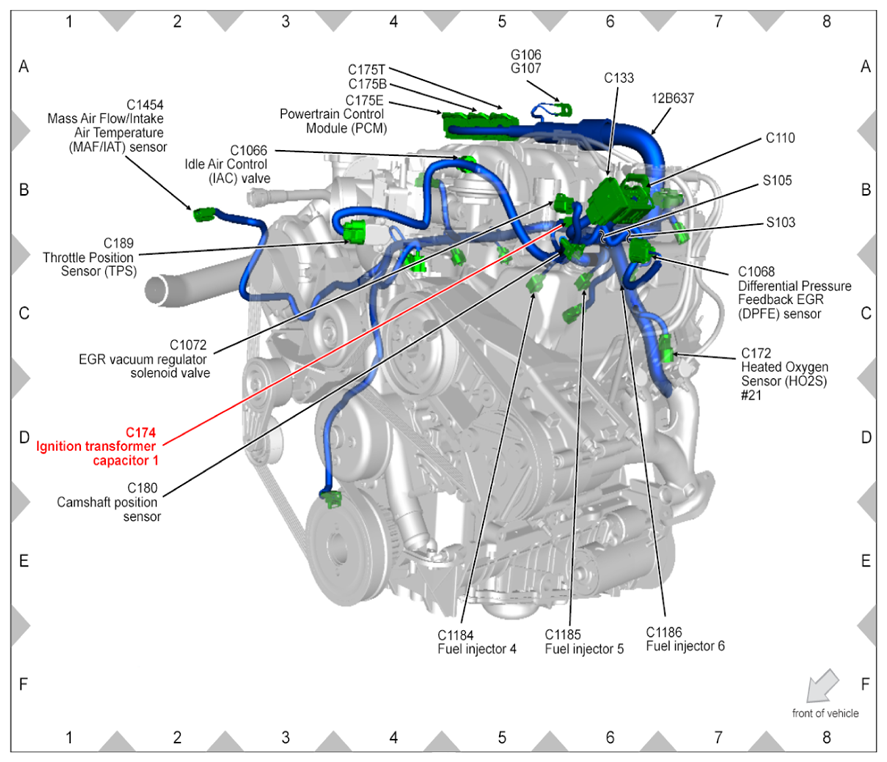

Fig 41: Identifying C174 Ignition Transformer Capacitor 1 Location - (2.3L) On Engine

Courtesy of FORD MOTOR CO.

Fig 42: Identifying C174 Ignition Transformer Capacitor 1 Location - (4.0L) On Engine

Courtesy of FORD MOTOR CO.

Fig 43: Identifying C175B Connector Location - (2.3L) Engine Compartment, Rear, Top

Courtesy of FORD MOTOR CO.

Fig 44: Identifying C175B Connector Location - (4.0L) Engine Compartment, Rear, Top

Courtesy of FORD MOTOR CO.

Fig 45: Identifying C175E Powertrain Control Module (PCM) Location - (2.3L) Engine Compartment, Rear, Top

Courtesy of FORD MOTOR CO.

Fig 46: Identifying C175E Powertrain Control Module (PCM) Location - (4.0L) Engine Compartment, Rear, Top

Courtesy of FORD MOTOR CO.

Fig 47: Identifying C175T Connector Location - (2.3L) Engine Compartment, Rear, Top

Courtesy of FORD MOTOR CO.

Fig 48: Identifying C175T Connector Location - (4.0L) Engine Compartment, Rear, Top

Courtesy of FORD MOTOR CO.

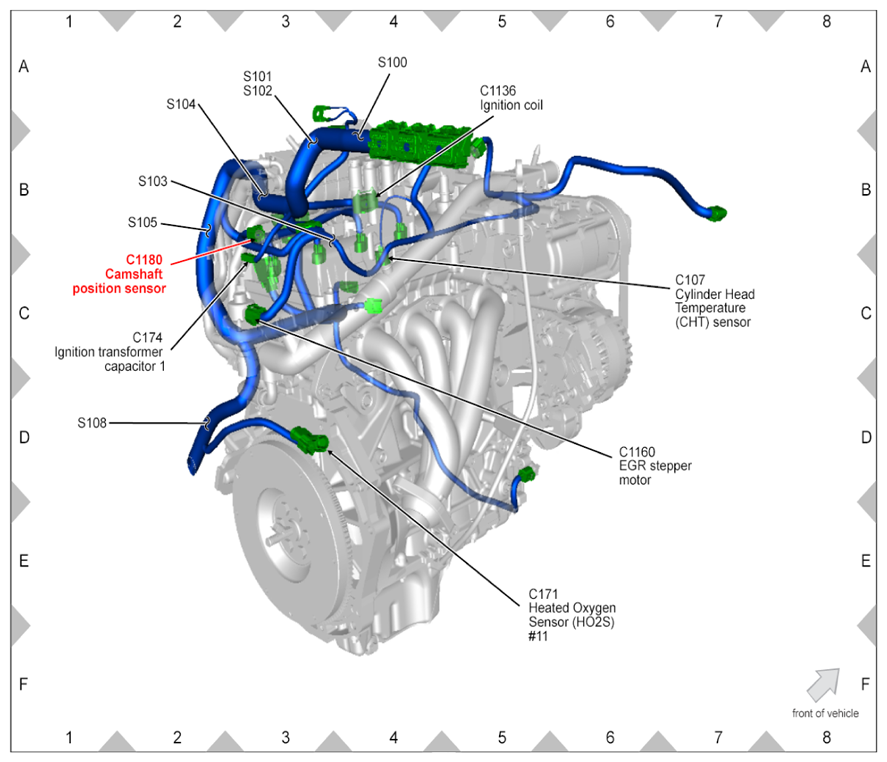

Fig 49: Identifying C180 Camshaft Position Sensor Location - (4.0L) On Engine

Courtesy of FORD MOTOR CO.

Fig 50: Identifying C189 Throttle Position Sensor (TPS) Location - (4.0L) On Engine

Courtesy of FORD MOTOR CO.

Fig 51: Identifying C190 Heated Positive Crankcase Ventilation (PCV) Valve Location - (4.0L) On Engine

Courtesy of FORD MOTOR CO.

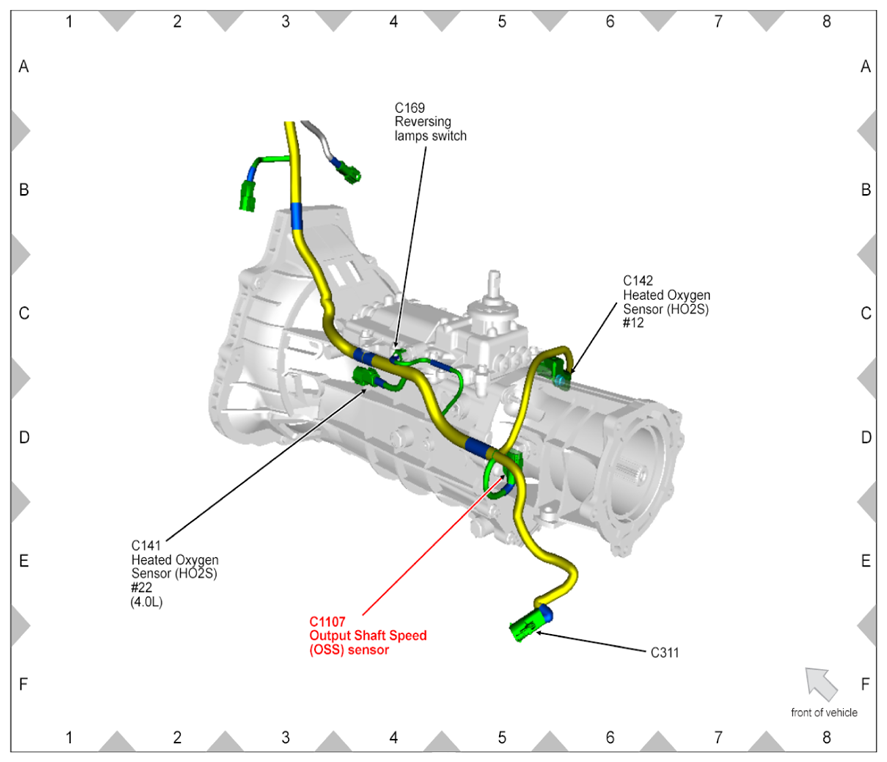

Fig 52: Identifying C193 Output Shaft Speed (OSS) Sensor Location - On Transmission

Courtesy of FORD MOTOR CO.

Fig 53: Identifying C197A Connector Location - (2.3L) LH Side Of Engine

Courtesy of FORD MOTOR CO.

Fig 54: Identifying C197A Connector Location - (4.0L) LH Side Of Engine

Courtesy of FORD MOTOR CO.

Fig 55: Identifying C197B Connector Location - (2.3L) LH Side Of Engine

Courtesy of FORD MOTOR CO.

Fig 56: Identifying C197D Starter Motor Location - (4.0L) LH Side Of Engine

Courtesy of FORD MOTOR CO.

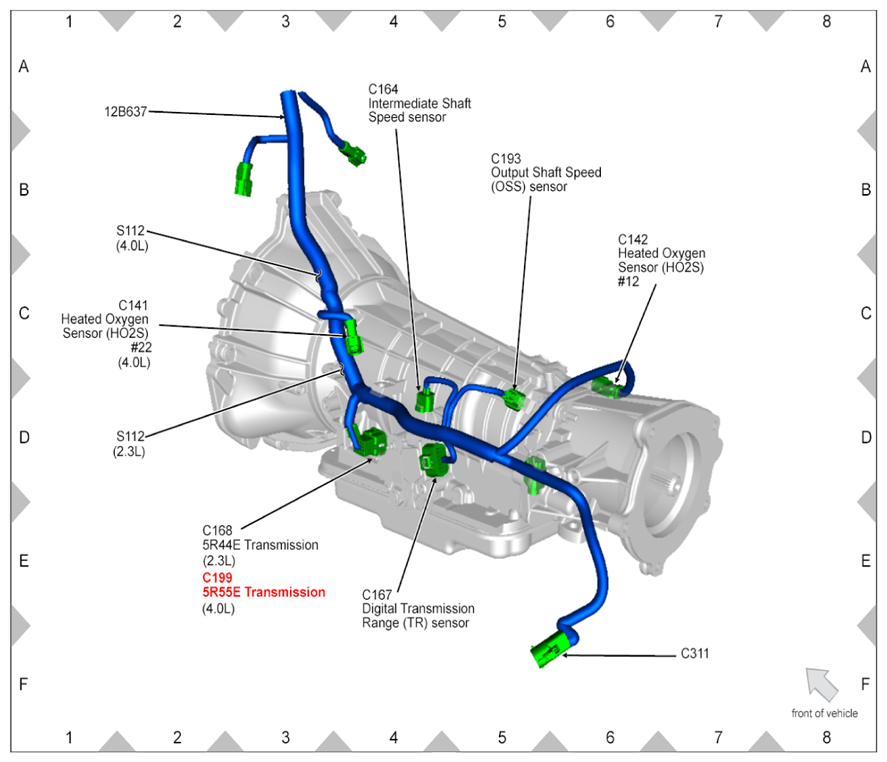

Fig 57: Identifying C199 5R55E Transmission Location - (4.0L) Automatic Transmission

Courtesy of FORD MOTOR CO.

Fig 58: Identifying C202A Multifunction Switch Location - On Steering Column

Courtesy of FORD MOTOR CO.

Fig 59: Identifying C202B Multifunction Switch Location - On Steering Column

Courtesy of FORD MOTOR CO.

Fig 60: Identifying C205 Main Light Switch Location - Behind Dash Panel, LH Side

Courtesy of FORD MOTOR CO.

Fig 61: Identifying C210 Connector Location - Behind Dash Panel, LH Side

Courtesy of FORD MOTOR CO.

Fig 62: Identifying C213 Connector Location - (With Power Equipment) Behind Dash Panel, RH Side

Courtesy of FORD MOTOR CO.

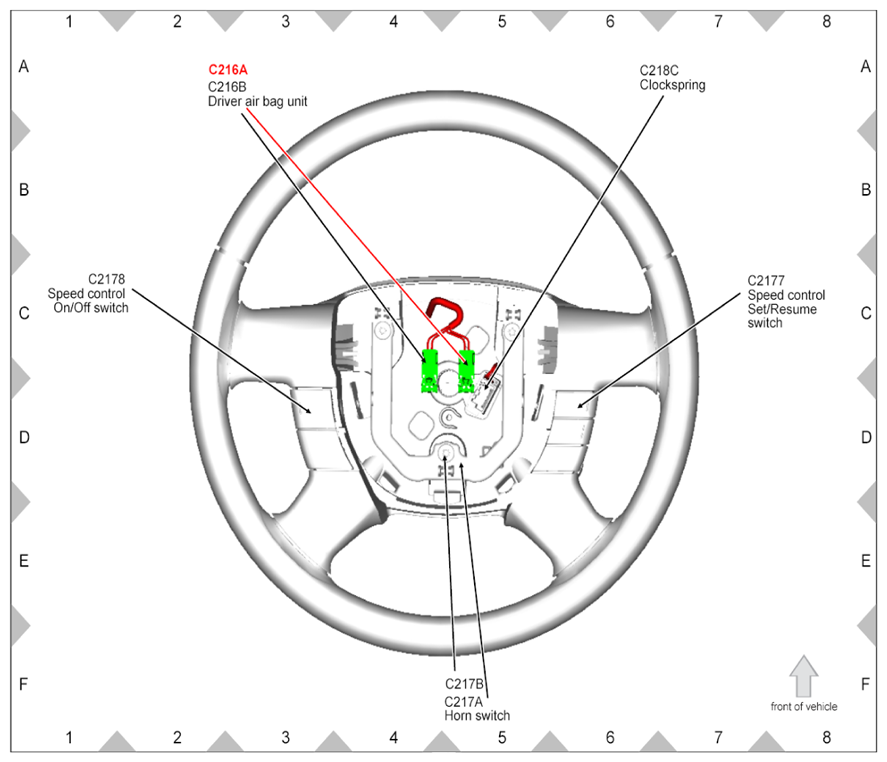

Fig 63: Identifying C216A Connector Location - In Steering Wheel

Courtesy of FORD MOTOR CO.

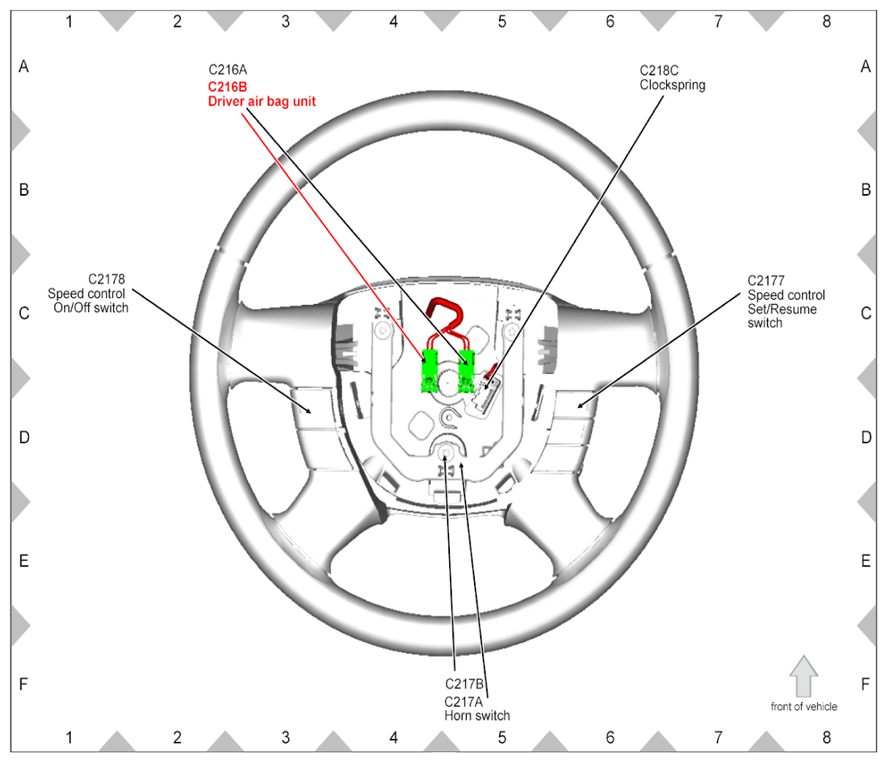

Fig 64: Identifying C216B Driver Air Bag Unit Location - In Steering Wheel

Courtesy of FORD MOTOR CO.

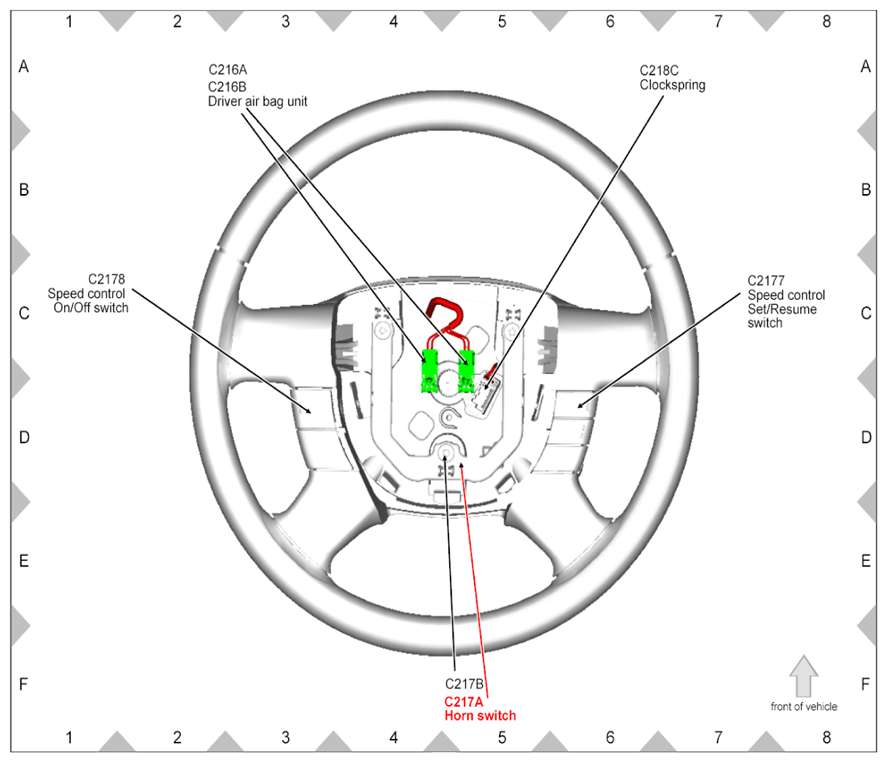

Fig 65: Identifying C217A Horn Switch Location - In Steering Wheel

Courtesy of FORD MOTOR CO.

Fig 66: Identifying C217B Connector Location - In Steering Wheel

Courtesy of FORD MOTOR CO.

Fig 67: Identifying C218A Connector Location - On Steering Column

Courtesy of FORD MOTOR CO.

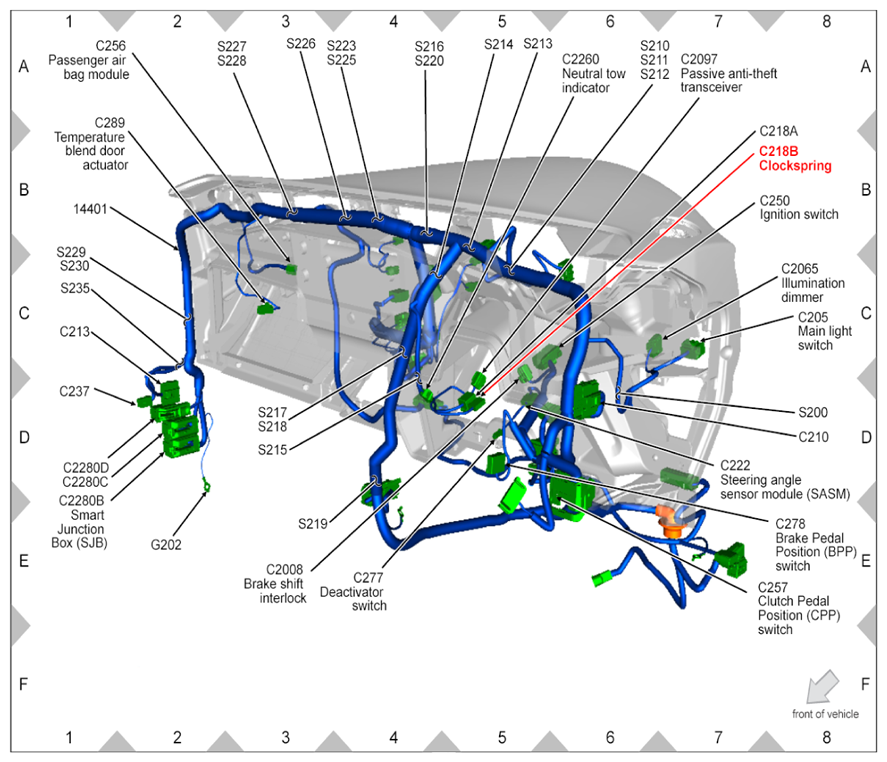

Fig 68: Identifying C218B Clockspring Location - On Steering Column

Courtesy of FORD MOTOR CO.

Fig 69: Identifying C218C Clockspring Location - In Steering Wheel

Courtesy of FORD MOTOR CO.

Fig 70: Identifying C220A Instrument Cluster (IC) Location - Behind Dash Panel, LH Side

Courtesy of FORD MOTOR CO.

Fig 71: Identifying C220B Connector Location - Behind Dash Panel, LH Side

Courtesy of FORD MOTOR CO.

Fig 72: Identifying C222 Steering Angle Sensor Module (SASM) Location - On Steering Column

Courtesy of FORD MOTOR CO.

Fig 73: Identifying C237 Connector Location - Behind Dash Panel, RH Side

Courtesy of FORD MOTOR CO.

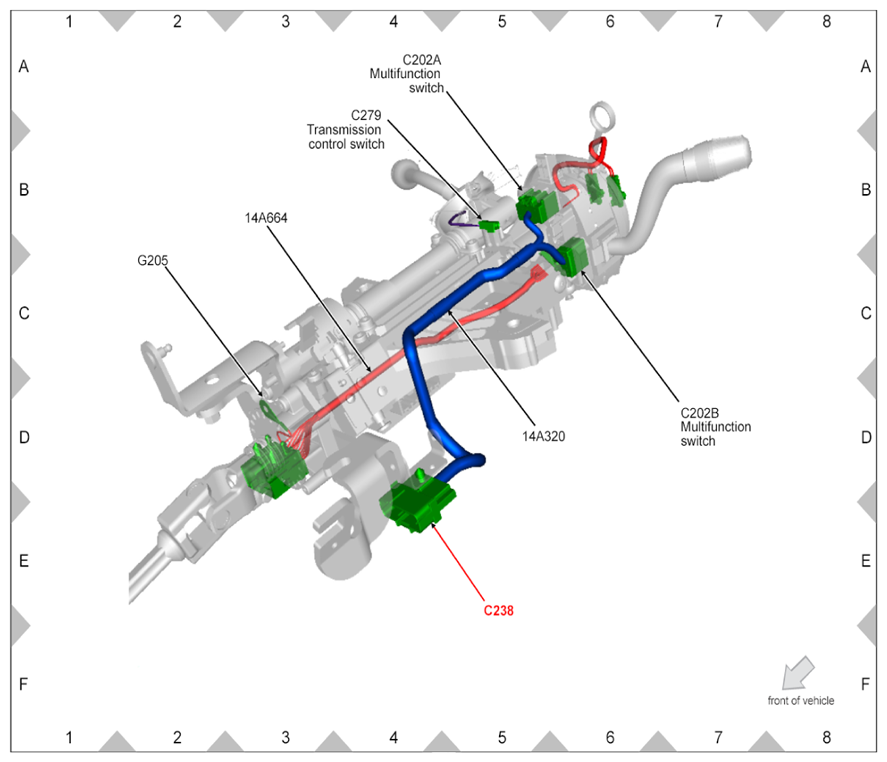

Fig 74: Identifying C238 Connector Location - On Steering Column

Courtesy of FORD MOTOR CO.

Fig 75: Identifying C250 Ignition Switch Location - On Steering Column

Courtesy of FORD MOTOR CO.

Fig 76: Identifying C251 Data Link Connector (DLC) Location - Behind Dash Panel, LH Side

Courtesy of FORD MOTOR CO.

Fig 77: Identifying C256 Passenger Air Bag Module Location - Behind Dash Panel, RH Side

Courtesy of FORD MOTOR CO.

Fig 78: Identifying C257 Clutch Pedal Position (CPP) Switch Location - On Brake Pedal Support

Courtesy of FORD MOTOR CO.

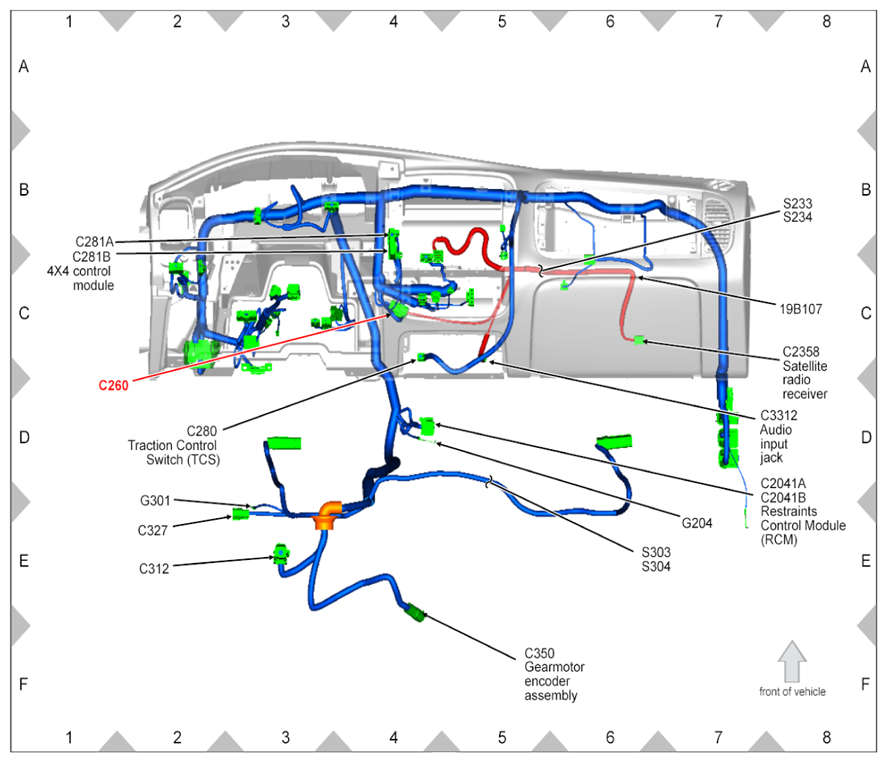

Fig 79: Identifying C260 Connector Location - Behind Dash Panel

Courtesy of FORD MOTOR CO.

Fig 80: Identifying C277 Deactivator Switch Location - On Brake Pedal Support

Courtesy of FORD MOTOR CO.

Fig 81: Identifying C278 Brake Pedal Position (BPP) Switch Location - On Brake Pedal Support

Courtesy of FORD MOTOR CO.

Fig 82: Identifying C279 Transmission Control Switch Location - On Steering Column

Courtesy of FORD MOTOR CO.

Fig 83: Identifying C280 Traction Control Switch (TCS) Location - Behind Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 84: Identifying C281A Connector Location - Behind Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 85: Identifying C281B 4 X 4 Control Module Location - Behind Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 86: Identifying C282 Inertia Fuel Shutoff (IFS) Switch Location - RH A-Pillar, Below Dash Panel

Courtesy of FORD MOTOR CO.

Fig 87: Identifying C284 Four-Wheel Drive Switch Location - Behind Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 88: Identifying C289 Temperature Blend Door Actuator Location - Behind Dash Panel, RH Side

Courtesy of FORD MOTOR CO.

Fig 89: Identifying C290A Connector Location - Behind Dash Panel, Center

Courtesy of FORD MOTOR CO.

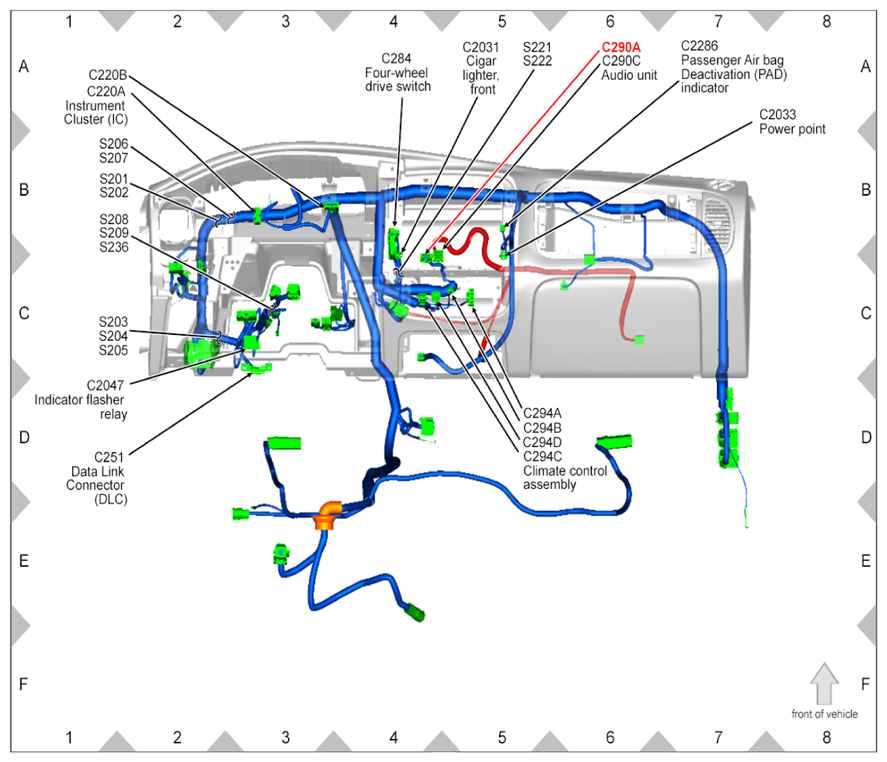

Fig 90: Identifying C290C Audio Unit Location - Behind Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 91: Identifying C294A Connector Location - Behind Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 92: Identifying C294B Connector Location - Behind Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 93: Identifying C294C Climate Control Assembly Location - Behind Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 94: Identifying C294D Connector Location - Behind Dash Panel, Center

Courtesy of FORD MOTOR CO.

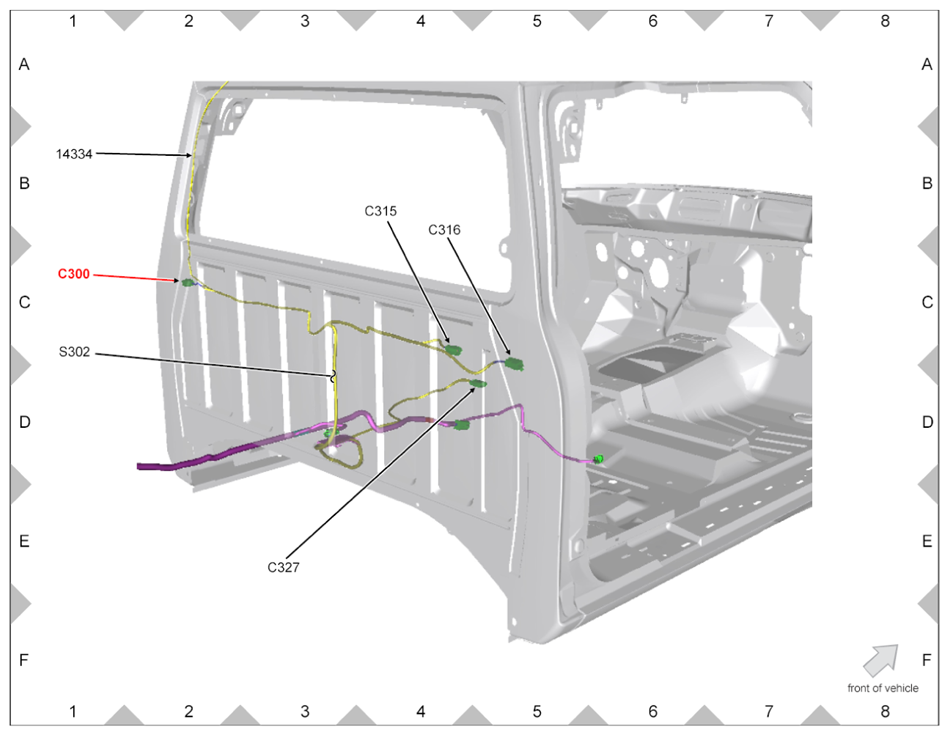

Fig 95: Identifying C300 Connector Location - LH B-Pillar

Courtesy of FORD MOTOR CO.

Fig 96: Identifying C300 Connector Location - (4-Door) LH B-Pillar

Courtesy of FORD MOTOR CO.

Fig 97: Identifying C300 Connector Location - (Super Cab) LH B-Pillar

Courtesy of FORD MOTOR CO.

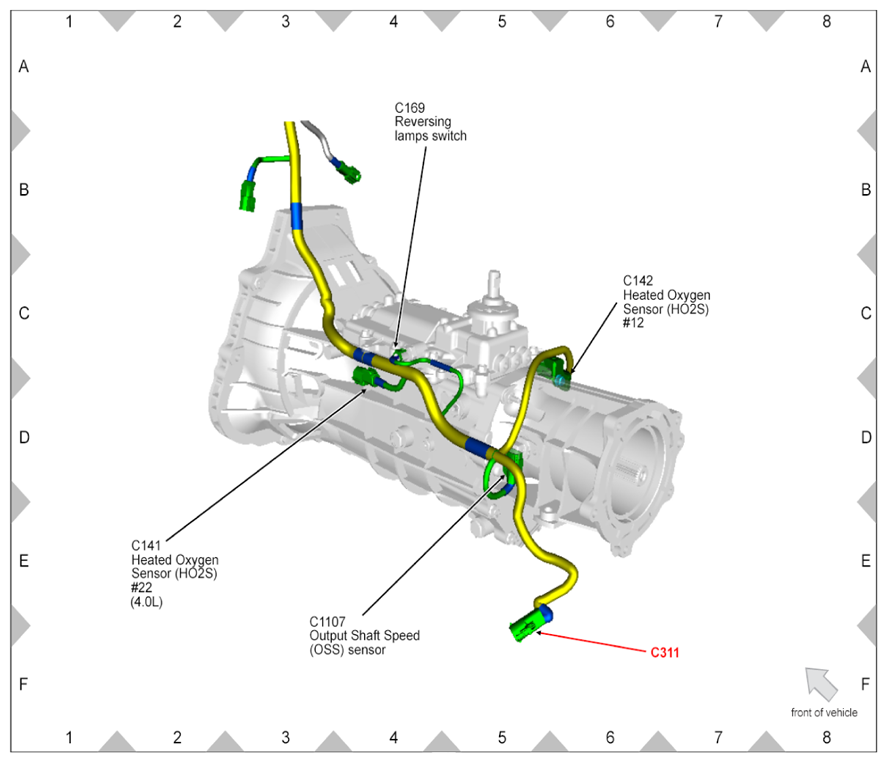

Fig 98: Identifying C311 Connector Location - Vehicle Underbody, Near Transmission

Courtesy of FORD MOTOR CO.

Fig 99: Identifying C312 Connector Location - Vehicle Underbody, Near Transmission

Courtesy of FORD MOTOR CO.

Fig 100: Identifying C313 Connector Location - In Driver Seat Base

Courtesy of FORD MOTOR CO.

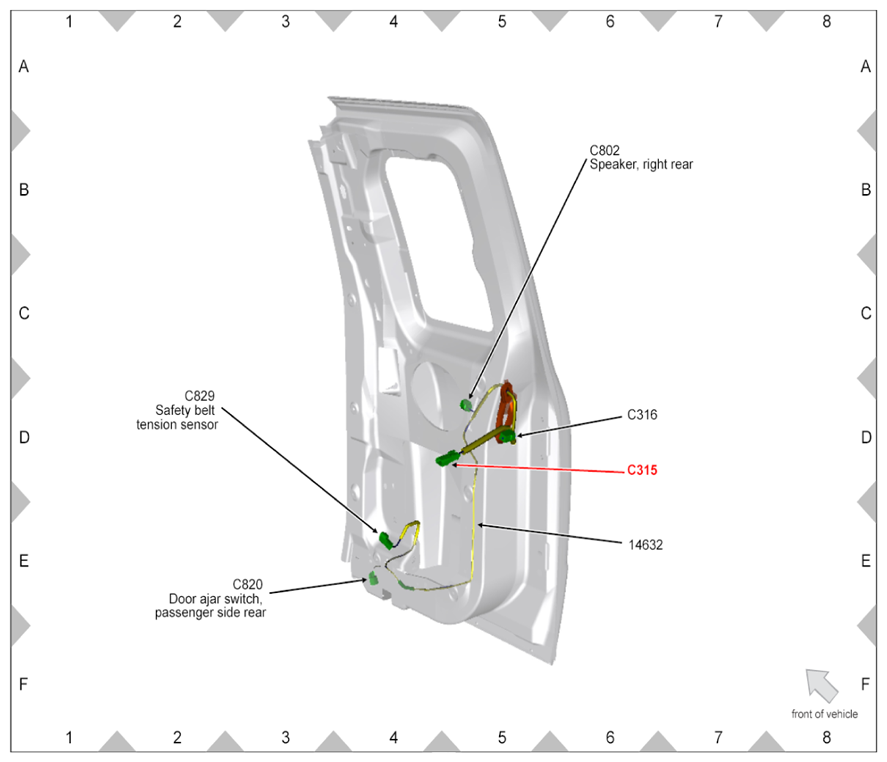

Fig 101: Identifying C315 Connector Location - Vehicle Interior, Near RH B-Pillar

Courtesy of FORD MOTOR CO.

Fig 102: Identifying C315 Connector Location - (4-Door) Vehicle Interior, Near RH B-Pillar

Courtesy of FORD MOTOR CO.

Fig 103: Identifying C315 Connector Location - (Super Cab) Vehicle Interior, Near RH B-Pillar

Courtesy of FORD MOTOR CO.

Fig 104: Identifying C316 Connector Location - Vehicle Interior, Near RH B-Pillar

Courtesy of FORD MOTOR CO.

Fig 105: Identifying C316 Connector Location - (4-Door) Vehicle Interior, Near RH B-Pillar

Courtesy of FORD MOTOR CO.

Fig 106: Identifying C316 Connector Location - (Super Cab) Vehicle Interior, Near RH B-Pillar

Courtesy of FORD MOTOR CO.

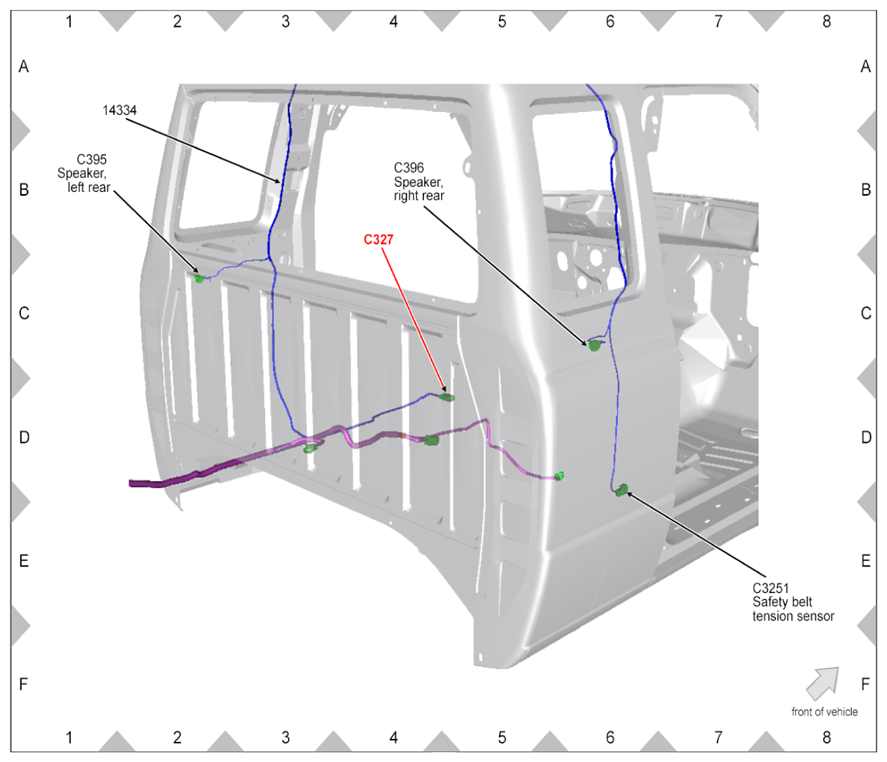

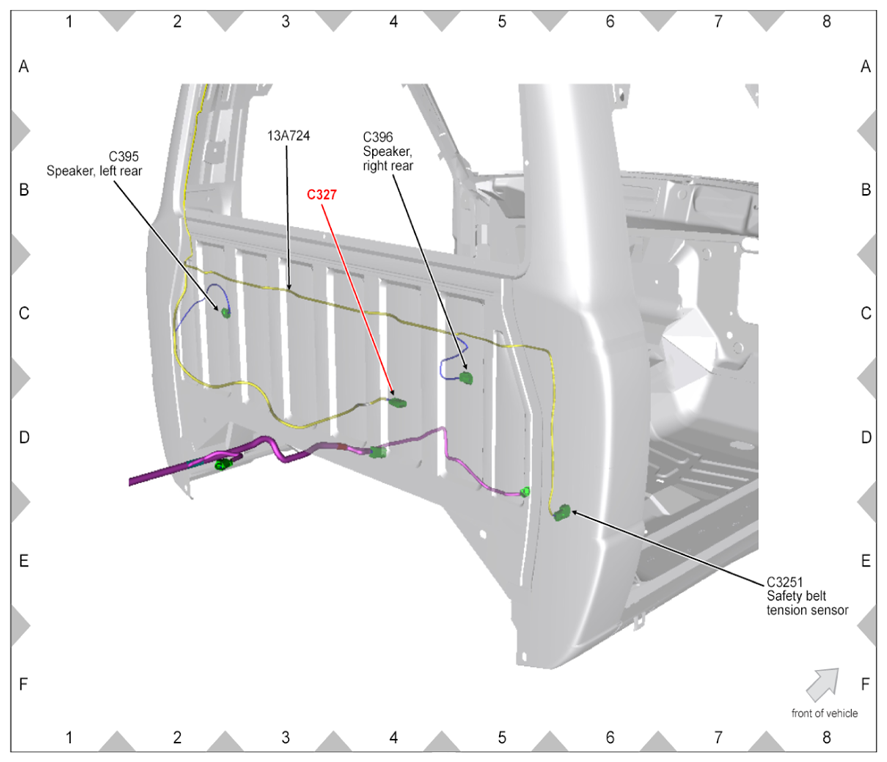

Fig 107: Identifying C327 Connector Location - Under Driver Seat

Courtesy of FORD MOTOR CO.

Fig 108: Identifying C327 Connector Location - (2-Door) Under Driver Seat

Courtesy of FORD MOTOR CO.

Fig 109: Identifying C327 Connector Location - (4-Door) Under Driver Seat

Courtesy of FORD MOTOR CO.

Fig 110: Identifying C327 Connector Location - (Regular Cab) Under Driver Seat

Courtesy of FORD MOTOR CO.

Fig 111: Identifying C327 Connector Location - (Super Cab) Under Driver Seat

Courtesy of FORD MOTOR CO.

Fig 112: Identifying C327 Connector Location - (Super Cab) Under Driver Seat

Courtesy of FORD MOTOR CO.

Fig 113: Identifying C328 Connector Location - In Driver Seat Base

Courtesy of FORD MOTOR CO.

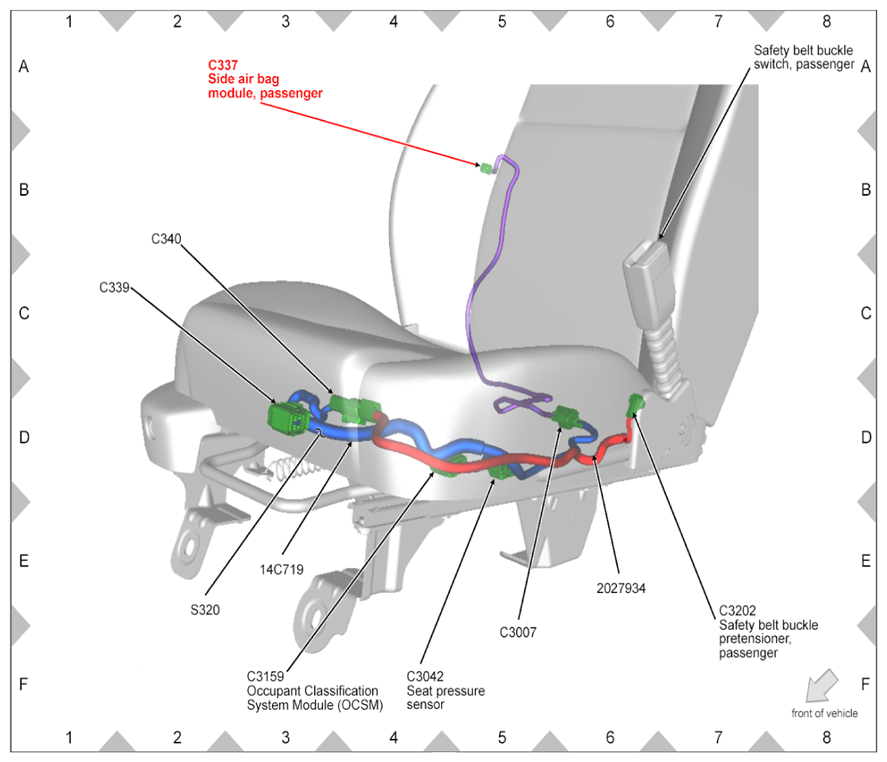

Fig 114: Identifying C337 Side Air Bag Module, Passenger Location - In Passenger Seat Back

Courtesy of FORD MOTOR CO.

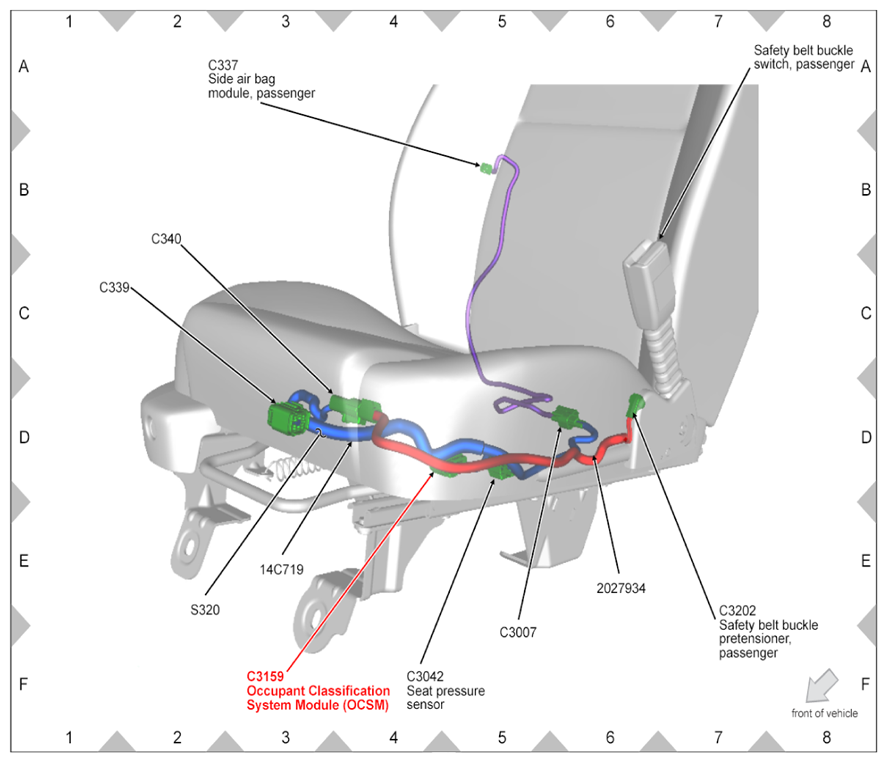

Fig 115: Identifying C339 Connector Location - In Passenger Seat Base

Courtesy of FORD MOTOR CO.

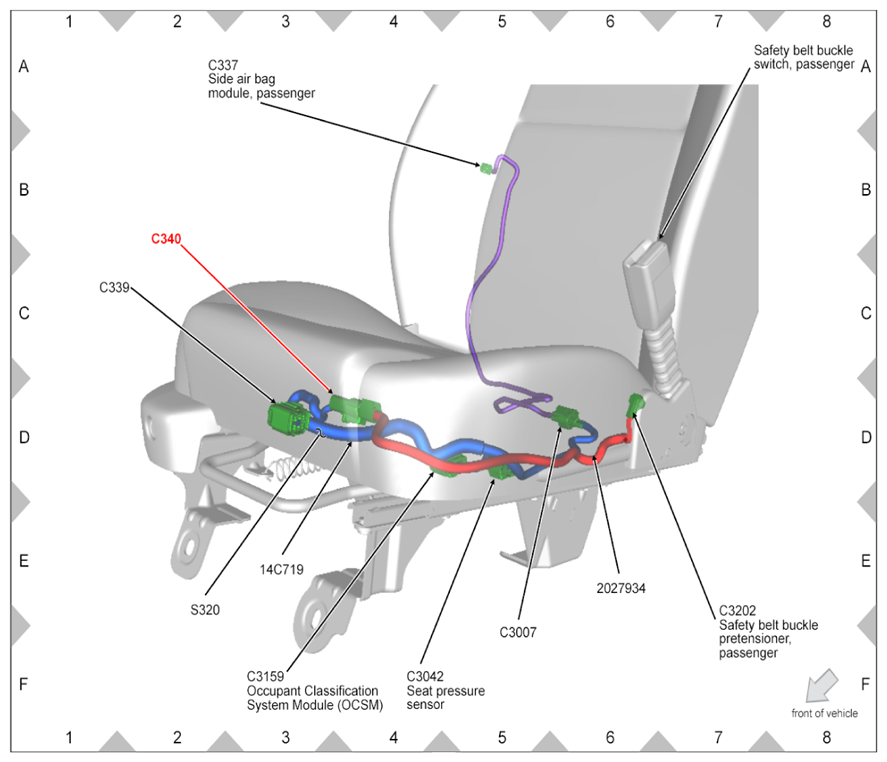

Fig 116: Identifying C340 Connector Location - In Passenger Seat Base

Courtesy of FORD MOTOR CO.

Fig 117: Identifying C350 Gearmotor Encoder Assembly Location - On Transfer Case

Courtesy of FORD MOTOR CO.

Fig 118: Identifying C356 Seat Position Sensor, Driver Location - In Driver Seat Base

Courtesy of FORD MOTOR CO.

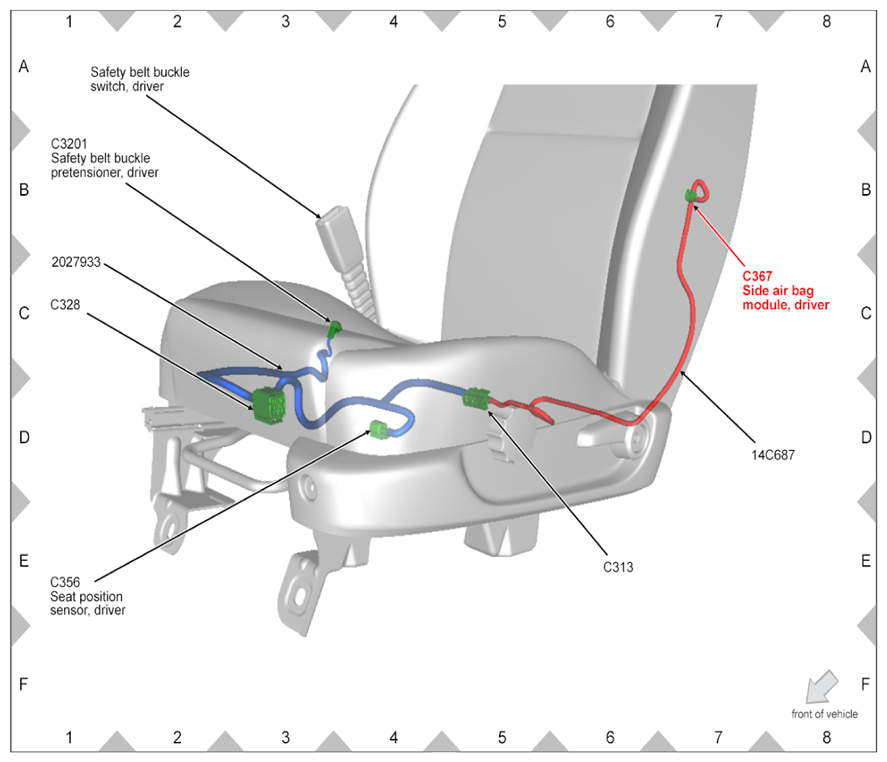

Fig 119: Identifying C367 Side Air Bag Module, Driver Location - In Driver Seat Back

Courtesy of FORD MOTOR CO.

Fig 120: Identifying C395 Speaker, Left Rear Location - (2-Door) LH B-Pillar

Courtesy of FORD MOTOR CO.

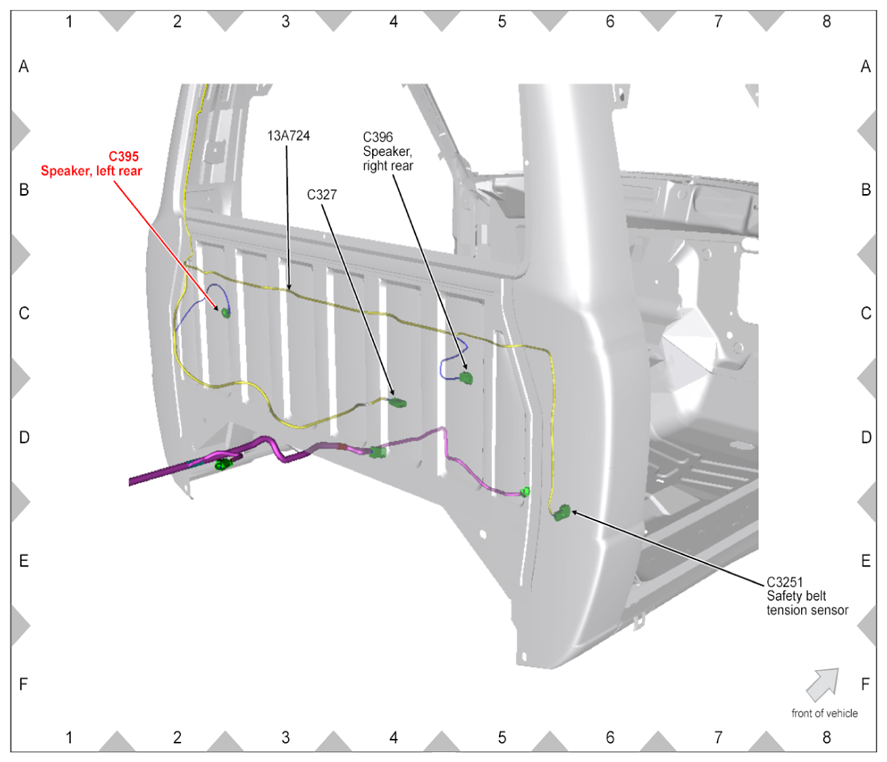

Fig 121: Identifying C395 Speaker, Left Rear Location - (Regular Cab) LH B-Pillar

Courtesy of FORD MOTOR CO.

Fig 122: Identifying C395 Speaker, Left Rear Location - (Super Cab) LH B-Pillar

Courtesy of FORD MOTOR CO.

Fig 123: Identifying C396 Speaker, Right Rear Location - (2-Door) RH B-Pillar

Courtesy of FORD MOTOR CO.

Fig 124: Identifying C396 Speaker, Right Rear Location - (Regular Cab) In Right Rear Door

Courtesy of FORD MOTOR CO.

Fig 125: Identifying C396 Speaker, Right Rear Location - (Super Cab) RH B-Pillar

Courtesy of FORD MOTOR CO.

Fig 126: Identifying C412 Park/Stop/Turn Lamp, Rear Location - (Except STX) Vehicle Rear End, LH Side

Courtesy of FORD MOTOR CO.

Fig 127: Identifying C415 Park/Stop/Turn Lamp, Right Rear Location - (Except STX) Vehicle Rear End, RH Side

Courtesy of FORD MOTOR CO.

Fig 128: Identifying C421 Connector Location - Vehicle Underbody, Rear

Courtesy of FORD MOTOR CO.

Fig 129: Identifying C426 Wheel Speed Sensor, Right Rear Location - Vehicle Rear End, RH Side, Near Right Tire

Courtesy of FORD MOTOR CO.

Fig 130: Identifying C435 Fuel Tank Pressure Sensor Location - Vehicle Underbody, On Fuel Tank

Courtesy of FORD MOTOR CO.

Fig 131: Identifying C439 Trailer Tow Connector Location - Vehicle Rear End, Center

Courtesy of FORD MOTOR CO.

Fig 132: Identifying C440 Wheel Speed Sensor, Left Rear Location - Vehicle Rear End, LH Side, Near Left Tire

Courtesy of FORD MOTOR CO.

Fig 133: Identifying C450 Evaporative Emission (EVAP) Canister Vent Valve Location - Vehicle Underbody, LH Side, Rear

Courtesy of FORD MOTOR CO.

Fig 134: Identifying C451 Reversing Lamp, Left Location - Vehicle Rear End, LH Side

Courtesy of FORD MOTOR CO.

Fig 135: Identifying C454 License Plate Lamp, Left Location - Vehicle Rear End, Center

Courtesy of FORD MOTOR CO.

Fig 136: Identifying C461 Reversing Lamp, Right Location - Vehicle Rear End, RH Side

Courtesy of FORD MOTOR CO.

Fig 137: Identifying C464 License Plate Lamp, Right Location - Vehicle Rear End, Center

Courtesy of FORD MOTOR CO.

Fig 138: Identifying C504 Master Window Adjust Switch Location - Left Front Door

Courtesy of FORD MOTOR CO.

Fig 139: Identifying C505 Door Lock Switch, Driver Side Location - Left Front Door

Courtesy of FORD MOTOR CO.

Fig 140: Identifying C522 Exterior Rear View Mirror, Left Location - Left Front Door

Courtesy of FORD MOTOR CO.

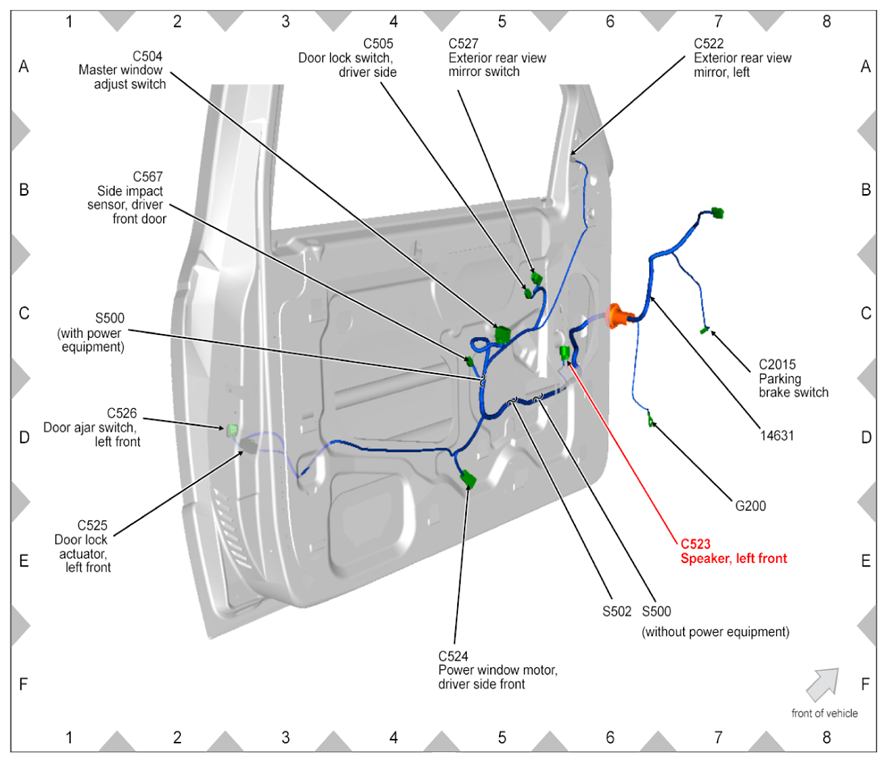

Fig 141: Identifying C523 Speaker, Left Front Location - Left Front Door

Courtesy of FORD MOTOR CO.

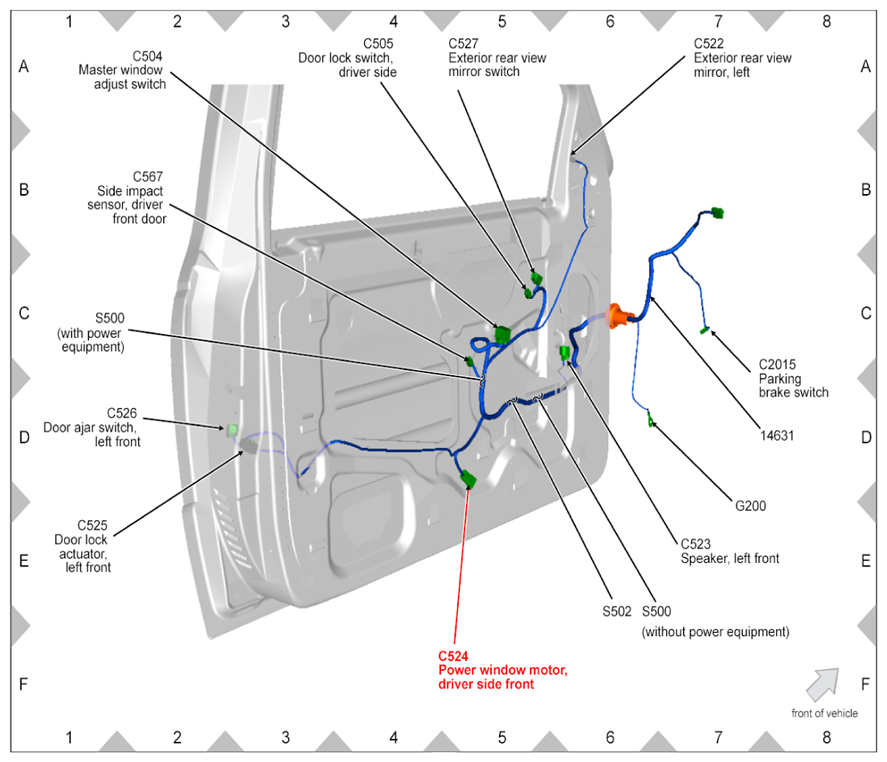

Fig 142: Identifying C524 Power Window Motor, Driver Side Front Location - Left Front Door

Courtesy of FORD MOTOR CO.

Fig 143: Identifying C525 Door Lock Actuator, Left Front Location - Left Front Door

Courtesy of FORD MOTOR CO.

Fig 144: Identifying C526 Door Ajar Switch, Left Front Location - Left Front Door

Courtesy of FORD MOTOR CO.

Fig 145: Identifying C527 Exterior Rear View Mirror Switch Location - Left Front Door

Courtesy of FORD MOTOR CO.

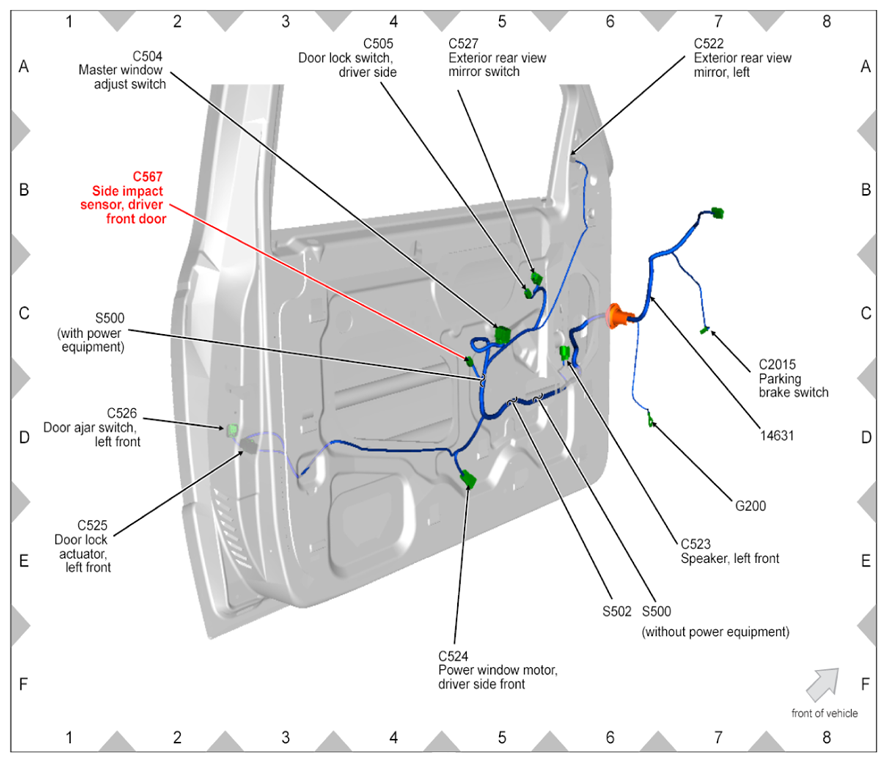

Fig 146: Identifying C567 Side Impact Sensor, Driver Front Door Location - Left Front Door

Courtesy of FORD MOTOR CO.

Fig 147: Identifying C602 Door Ajar Switch, Right Front Location - Right Front Door

Courtesy of FORD MOTOR CO.

Fig 148: Identifying C603 Door Lock Actuator, Right Front Location - Right Front Door

Courtesy of FORD MOTOR CO.

Fig 149: Identifying C604 Window Adjust Switch Passenger Side Location - Right Front Door

Courtesy of FORD MOTOR CO.

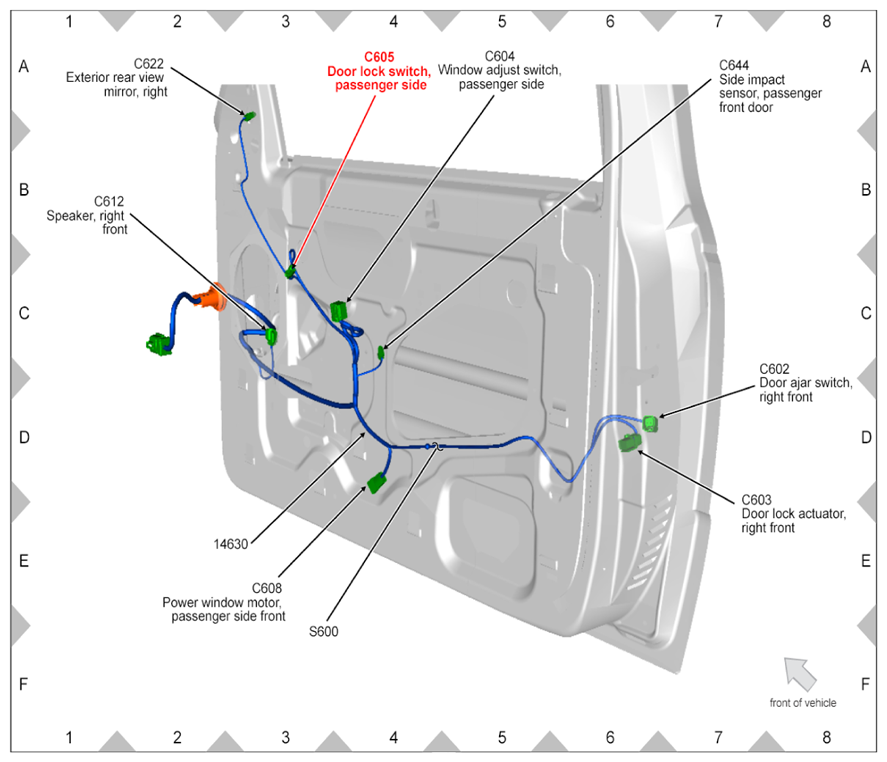

Fig 150: Identifying C605 Door Lock Switch, Passenger Side Location - Right Front Door

Courtesy of FORD MOTOR CO.

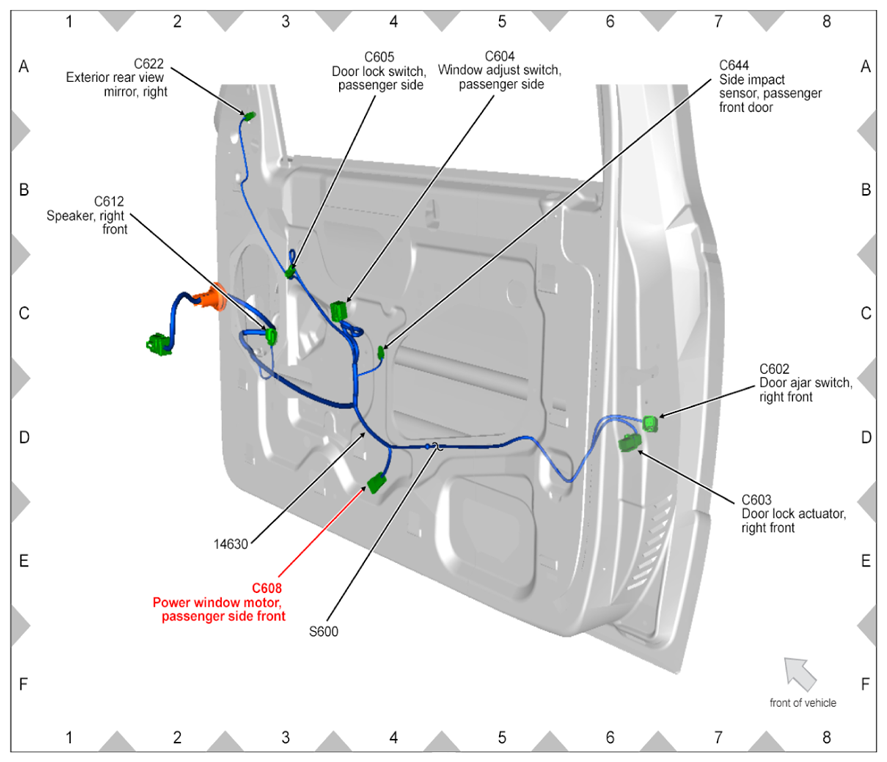

Fig 151: Identifying C608 Power Window Motor, Passenger Side Front Location - Right Front Door

Courtesy of FORD MOTOR CO.

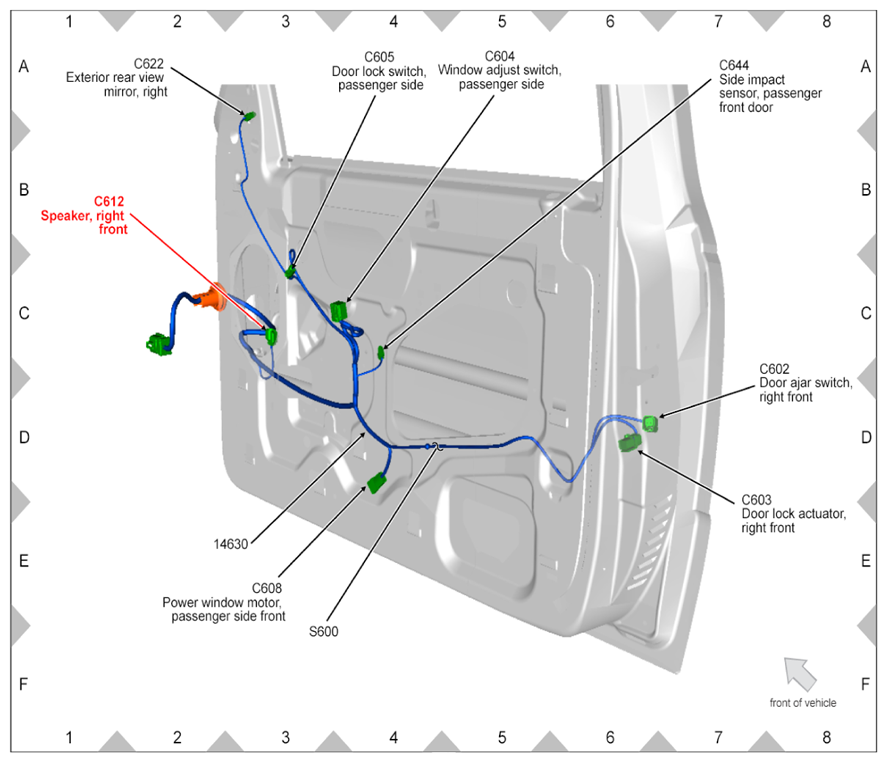

Fig 152: Identifying C612 Speaker, Right Front Location - Right Front Door

Courtesy of FORD MOTOR CO.

Fig 153: Identifying C622 Exterior Rear View Mirror Right Location - Right Front Door

Courtesy of FORD MOTOR CO.

Fig 154: Identifying C644 Side Impact Sensor, Passenger Front Door Location - Right Front Door

Courtesy of FORD MOTOR CO.

Fig 155: Identifying C702 Speaker, Left Rear Location - In Left Rear Door

Courtesy of FORD MOTOR CO.

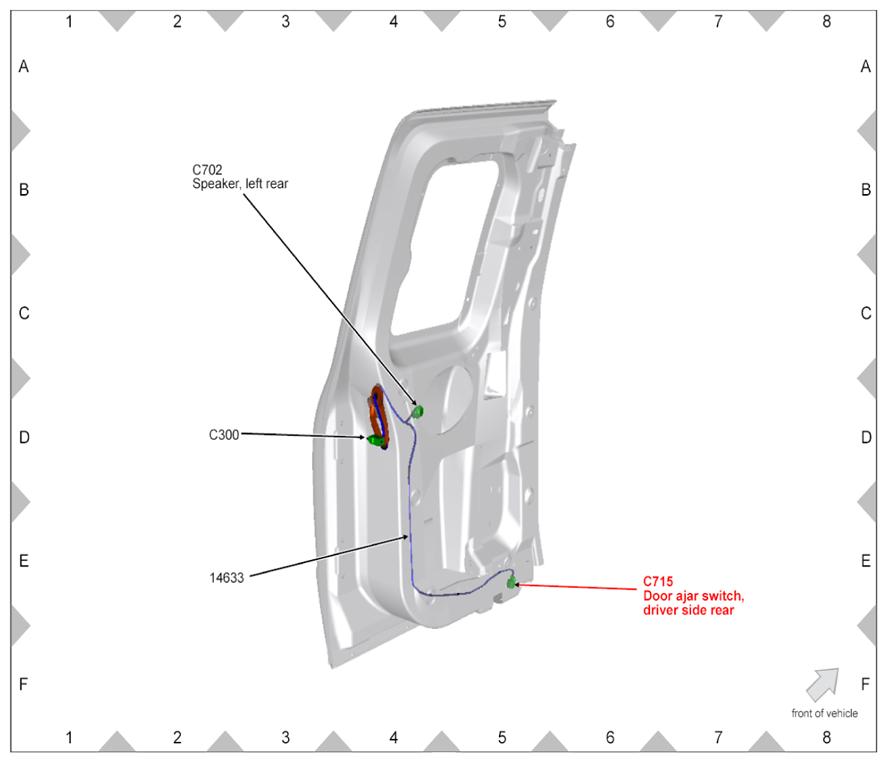

Fig 156: Identifying C715 Door Ajar Switch, Driver Side Rear Location - In Left Rear Door

Courtesy of FORD MOTOR CO.

Fig 157: Identifying C802 Speaker, Right Rear Location - In Right Rear Door

Courtesy of FORD MOTOR CO.

Fig 158: Identifying C820 Door Ajar Switch, Passenger Side Rear Location - In Right Rear Door

Courtesy of FORD MOTOR CO.

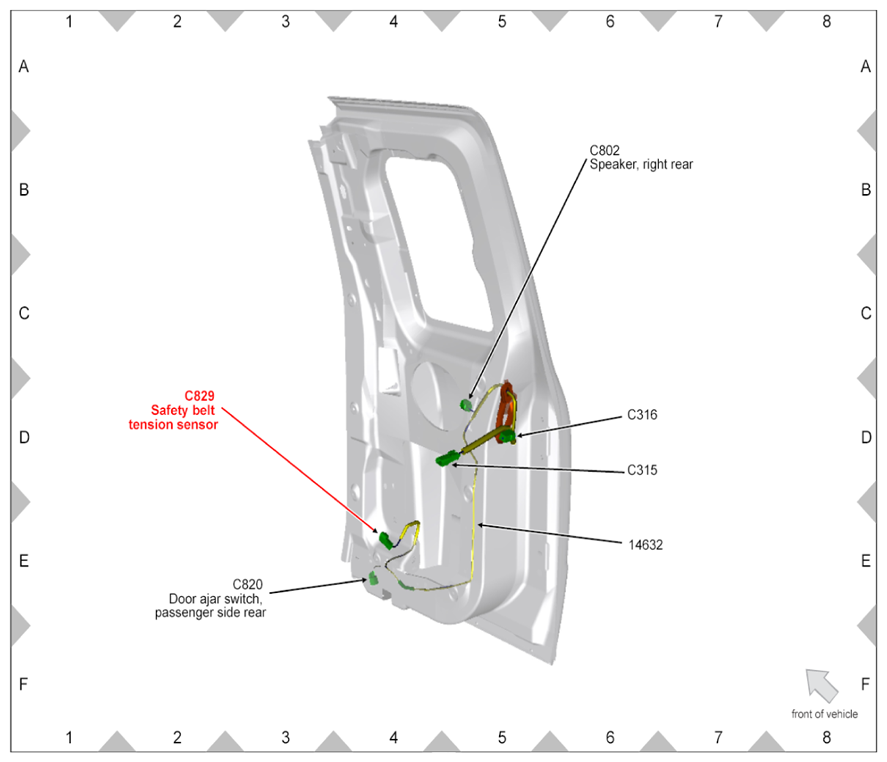

Fig 159: Identifying C829 Safety Belt Tension Sensor Location - In Right Rear Door

Courtesy of FORD MOTOR CO.

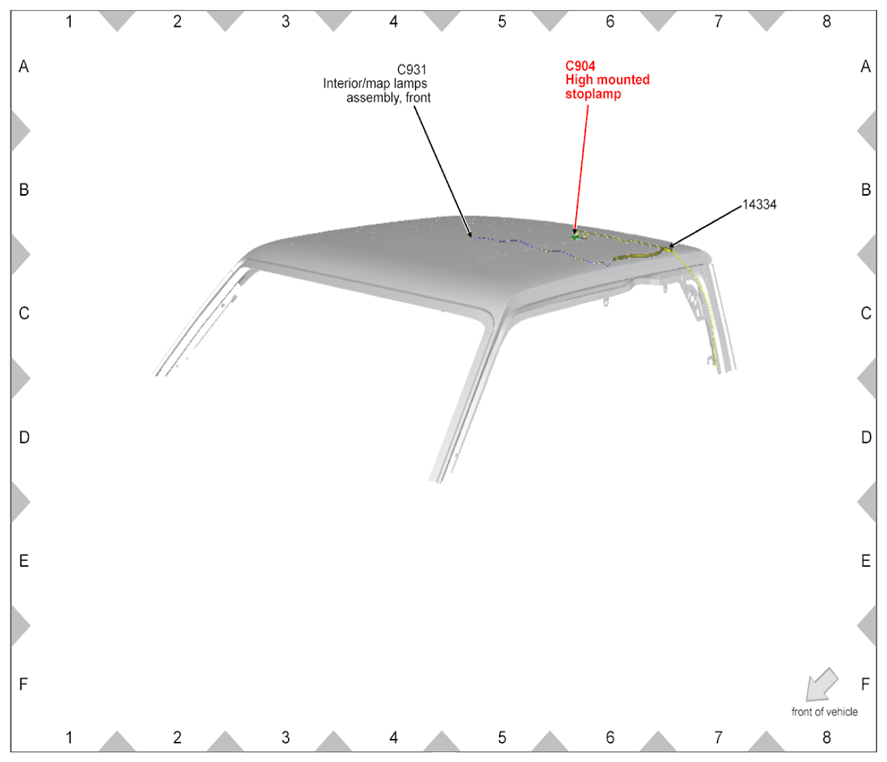

Fig 160: Identifying C904 High Mounted Stoplamp Location - (2-Door) In Roof Panel

Courtesy of FORD MOTOR CO.

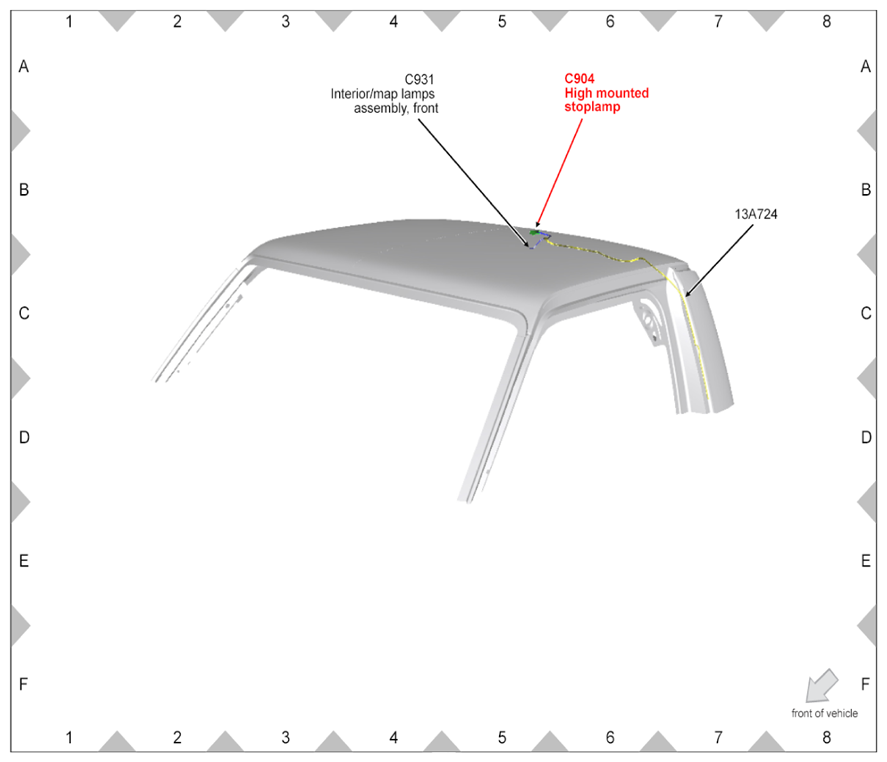

Fig 161: Identifying C904 High Mounted Stoplamp Location - (4-Door) In Roof Panel

Courtesy of FORD MOTOR CO.

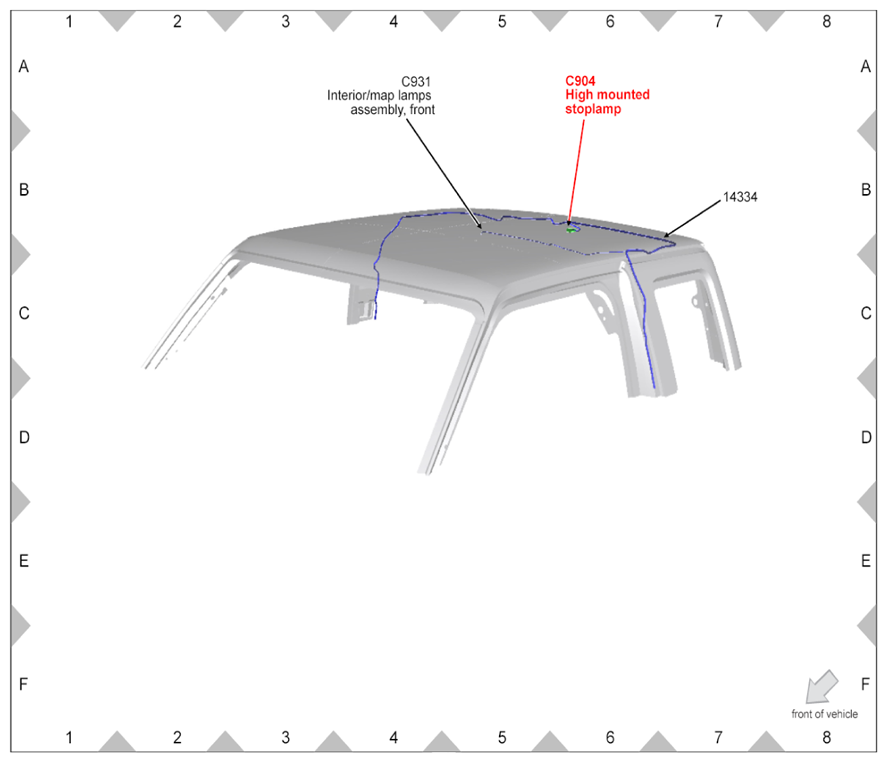

Fig 162: Identifying C904 High Mounted Stoplamp Location - (Regular Cab) In Roof Panel

Courtesy of FORD MOTOR CO.

Fig 163: Identifying C904 High Mounted Stoplamp Location - (Super Cab) In Roof Panel

Courtesy of FORD MOTOR CO.

Fig 164: Identifying C904 High Mounted Stoplamp Location - (Super Cab) In Roof Panel

Courtesy of FORD MOTOR CO.

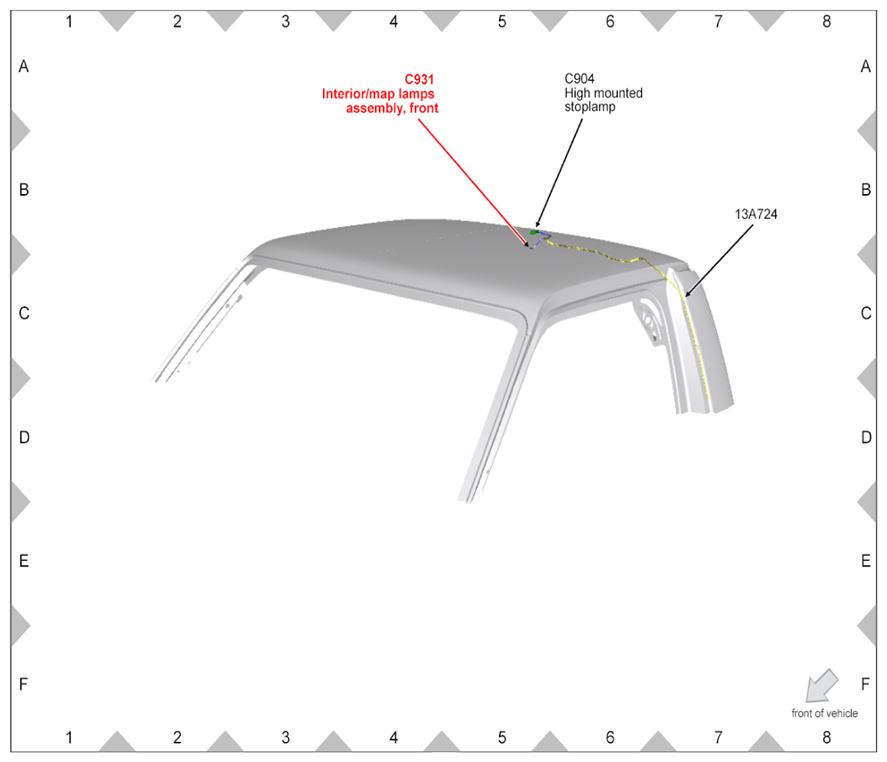

Fig 165: Identifying C931 Interior/Map Lamps Assembly, Front Location - (2-Door) In Roof Panel

Courtesy of FORD MOTOR CO.

Fig 166: Identifying C931 Interior/Map Lamps Assembly, Front Location - (4-Door) In Roof Panel

Courtesy of FORD MOTOR CO.

Fig 167: Identifying C931 Interior/Map Lamps Assembly, Front Location - (Regular Cab) In Roof Panel

Courtesy of FORD MOTOR CO.

Fig 168: Identifying C931 Interior/Map Lamps Assembly, Front Location - (Super Cab) In Roof Panel

Courtesy of FORD MOTOR CO.

Fig 169: Identifying C931 Interior/Map Lamps Assembly, Front Location - (Super Cab) In Roof Panel

Courtesy of FORD MOTOR CO.

Fig 170: Identifying C1021 Headlamp, Left Location - Engine Compartment, LH Side, Front

Courtesy of FORD MOTOR CO.

Fig 171: Identifying C1023 Park/Turn Lamp, Left Front Location - Engine Compartment, LH Side, Front

Courtesy of FORD MOTOR CO.

Fig 172: Identifying C1029 EVAP Canister Purge Valve Location - Engine Compartment, LH Side, Front

Courtesy of FORD MOTOR CO.

Fig 173: Identifying C1031 Blower Motor Location - Engine Compartment, RH Side, Rear

Courtesy of FORD MOTOR CO.

Fig 174: Identifying C1032 Blower Motor Resistor Location - Engine Compartment, RH Side, Rear

Courtesy of FORD MOTOR CO.

Fig 175: Identifying C1035 Battery Junction Box (BJB) Location - (2.3L) Engine Compartment, LH Side, Rear

Courtesy of FORD MOTOR CO.

Fig 176: Identifying C1035 Battery Junction Box (BJB) Location - (4.0L) Engine Compartment, LH Side, Rear

Courtesy of FORD MOTOR CO.

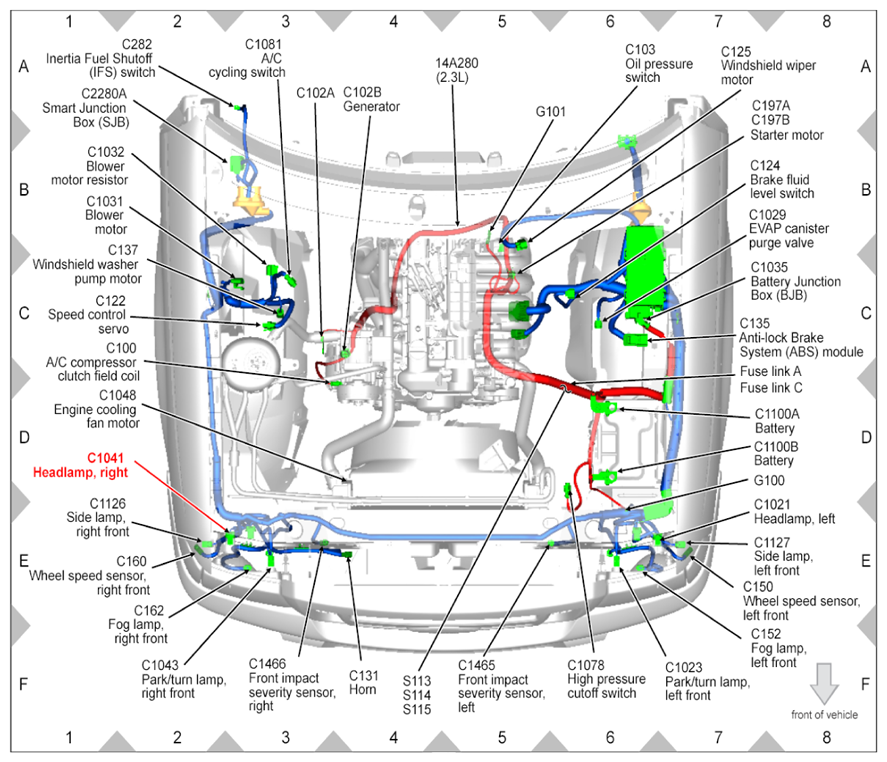

Fig 177: Identifying C1041 Headlamp, Right Location - Engine Compartment, RH Side, Front

Courtesy of FORD MOTOR CO.

Fig 178: Identifying C1043 Park/Turn Lamp, Right Front Location - Engine Compartment, RH Side, Front

Courtesy of FORD MOTOR CO.

Fig 179: Identifying C1048 Engine Cooling Fan Motor Location - (2.3L) Engine Compartment, RH Side, Front

Courtesy of FORD MOTOR CO.

Fig 180: Identifying C1064 Engine Coolant Temperature (ECT) Sensor Location - (4.0L) On Engine

Courtesy of FORD MOTOR CO.

Fig 181: Identifying C1065 Ignition Coil Location - (4.0L) On Engine

Courtesy of FORD MOTOR CO.

Fig 182: Identifying C1066 Idle Air Control (IAC) Valve Location - (2.3L) On Engine

Courtesy of FORD MOTOR CO.

Fig 183: Identifying C1066 Idle Air Control (IAC) Valve Location - (4.0L) On Engine

Courtesy of FORD MOTOR CO.

Fig 184: Identifying C1068 Differential Pressure Feedback EGR (DPFE) Sensor Location - (4.0L) On Engine

Courtesy of FORD MOTOR CO.

Fig 185: Identifying C1072 EGR Vacuum Regulator Solenoid Valve Location - (4.0L) On Engine

Courtesy of FORD MOTOR CO.

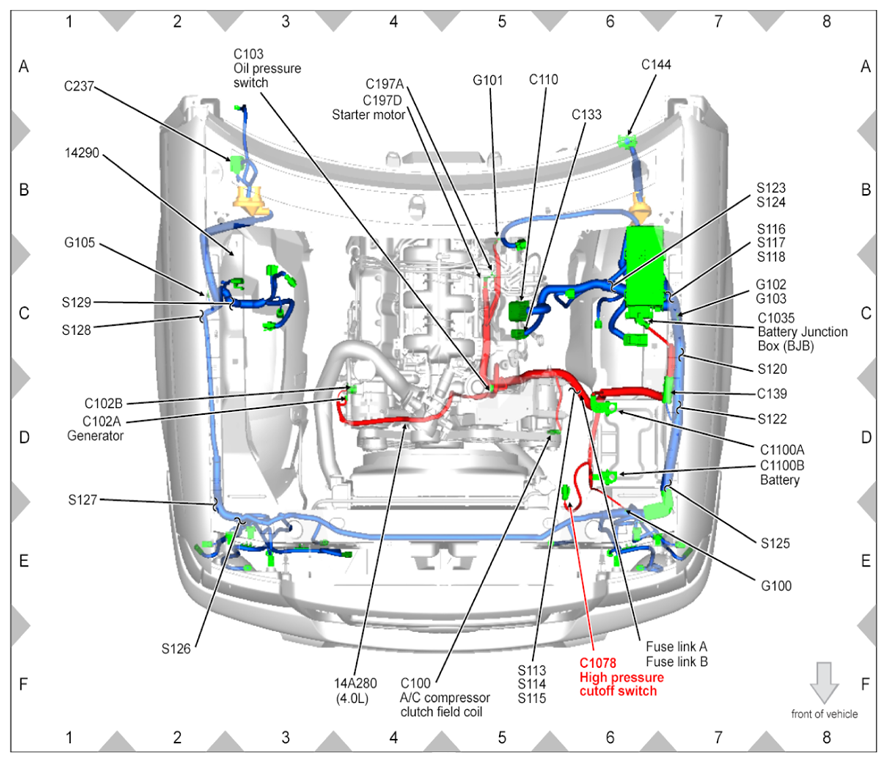

Fig 186: Identifying C1078 High Pressure Cutoff Switch Location - (2.3L) Engine Compartment, LH Side, Front

Courtesy of FORD MOTOR CO.

Fig 187: Identifying C1078 High Pressure Cutoff Switch Location - (4.0L) Engine Compartment, LH Side, Front

Courtesy of FORD MOTOR CO.

Fig 188: Identifying C1081 A/C Cycling Switch Location - Engine Compartment, RH Side, Rear

Courtesy of FORD MOTOR CO.

Fig 189: Identifying C1087 Manifold Absolute Pressure (MAP) Sensor Location - (2.3L) On Engine

Courtesy of FORD MOTOR CO.

Fig 190: Identifying C1100A Battery Location - (2.3L) Engine Compartment, LH Side, Front

Courtesy of FORD MOTOR CO.

Fig 191: Identifying C1100A Connector Location - (4.0L) Engine Compartment, LH Side, Front

Courtesy of FORD MOTOR CO.

Fig 192: Identifying C1100B Battery Location - (2.3L) Engine Compartment, LH Side, Front

Courtesy of FORD MOTOR CO.

Fig 193: Identifying C1100B Battery Location - (4.0L) Engine Compartment, LH Side, Front

Courtesy of FORD MOTOR CO.

Fig 194: Identifying C1107 Output Shaft Speed (OSS) Sensor Location - On Transmission

Courtesy of FORD MOTOR CO.

Fig 195: Identifying C1121 Power Steering Pressure Switch Location - (2.3L) On Engine

Courtesy of FORD MOTOR CO.

Fig 196: Identifying C1126 Side Lamp, Right Front Location - Engine Compartment, RH Side, Front

Courtesy of FORD MOTOR CO.

Fig 197: Identifying C1127 Side Lamp, Left Front Location - Engine Compartment, LH Side, Front

Courtesy of FORD MOTOR CO.

Fig 198: Identifying C1136 Ignition Coil Location - (2.3L) On Engine

Courtesy of FORD MOTOR CO.

Fig 199: Identifying C1160 EGR Stepper Motor Location - (2.3L) On Engine

Courtesy of FORD MOTOR CO.

Fig 200: Identifying C1180 Camshaft Position Sensor Location - (2.3L) On Engine

Courtesy of FORD MOTOR CO.

Fig 201: Identifying C1181 Fuel Injector 1 Location - (2.3L) On Engine

Courtesy of FORD MOTOR CO.

Fig 202: Identifying C1181 Fuel Injector 1 Location - (4.0L) On Engine

Courtesy of FORD MOTOR CO.

Fig 203: Identifying C1182 Fuel Injector 2 Location - (2.3L) On Engine

Courtesy of FORD MOTOR CO.

Fig 204: Identifying C1182 Fuel Injector 2 Location - (4.0L) On Engine

Courtesy of FORD MOTOR CO.

Fig 205: Identifying C1183 Fuel Injector 3 Location - (2.3L) On Engine

Courtesy of FORD MOTOR CO.

Fig 206: Identifying C1183 Fuel Injector 3 Location - (4.0L) On Engine

Courtesy of FORD MOTOR CO.

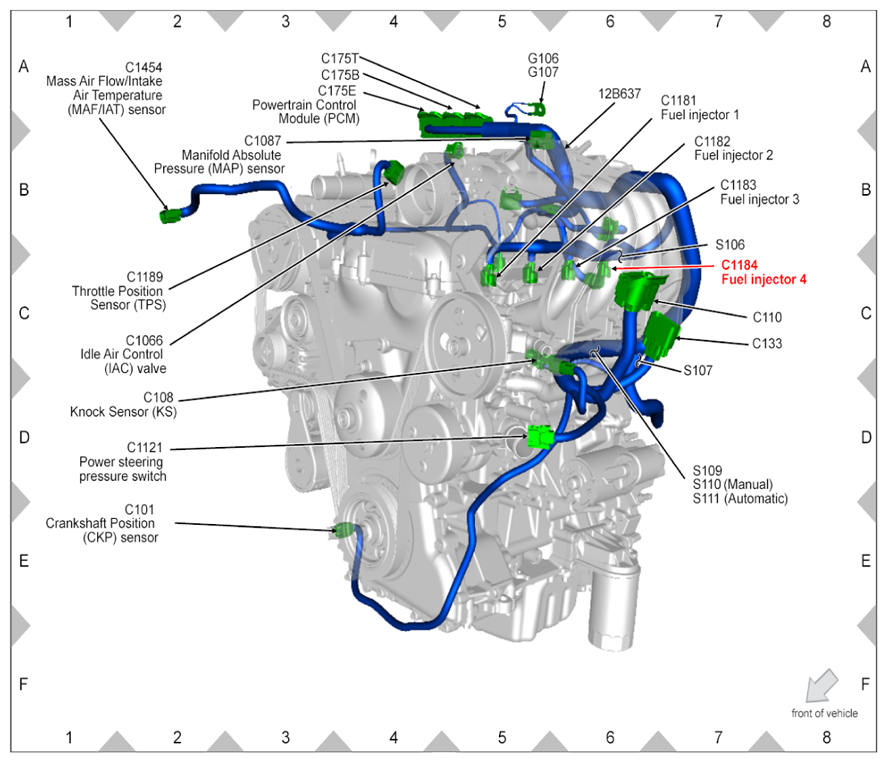

Fig 207: Identifying C1184 Fuel Injector 4 Location - (2.3L) On Engine

Courtesy of FORD MOTOR CO.

Fig 208: Identifying C1184 Fuel Injector 4 Location - (4.0L) On Engine

Courtesy of FORD MOTOR CO.

Fig 209: Identifying C1185 Fuel Injector 5 Location - (4.0L) On Engine

Courtesy of FORD MOTOR CO.

Fig 210: Identifying C1186 Fuel Injector 6 Location - (4.0L) On Engine

Courtesy of FORD MOTOR CO.

Fig 211: Identifying C1189 Throttle Position Sensor (TPS) Location - (2.3L) On Engine

Courtesy of FORD MOTOR CO.

Fig 212: Identifying C1339 Crankshaft Position (CKP) Sensor Location - (4.0L) On Engine

Courtesy of FORD MOTOR CO.

Fig 213: Identifying C1454 Mass Air Flow/Intake Air Temperature (MAF/IAT) Sensor Location - (2.3L) On Engine

Courtesy of FORD MOTOR CO.

Fig 214: Identifying C1454 Mass Air Flow/Intake Air Temperature (MAF/IAT) Sensor Location - (4.0L) On Engine

Courtesy of FORD MOTOR CO.

Fig 215: Identifying C1465 Front Impact Severity Sensor, Left Location - Engine Compartment, LH Side, Front

Courtesy of FORD MOTOR CO.

Fig 216: Identifying C1466 Front Impact Severity Sensor, Right Location - Engine Compartment, RH Side, Front

Courtesy of FORD MOTOR CO.

Fig 217: Identifying C2008 Brake Shift Interlock Location - On Steering Column

Courtesy of FORD MOTOR CO.

Fig 218: Identifying C2015 Parking Brake Switch Location - LH A-Pillar, Below Dash Panel

Courtesy of FORD MOTOR CO.

Fig 219: Identifying C2031 Cigar Lighter, Front Location - Behind Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 220: Identifying C2033 Power Point Location - Behind Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 221: Identifying C2041A Restraints Control Module (RCM) Location - Vehicle Floor, Center, Below Dash Panel

Courtesy of FORD MOTOR CO.

Fig 222: Identifying C2041B Restraints Control Module (RCM) Location - Vehicle Floor, Center, Below Dash Panel

Courtesy of FORD MOTOR CO.

Fig 223: Identifying C2047 Indicator Flasher Relay Location - Behind Dash Panel, LH Side

Courtesy of FORD MOTOR CO.

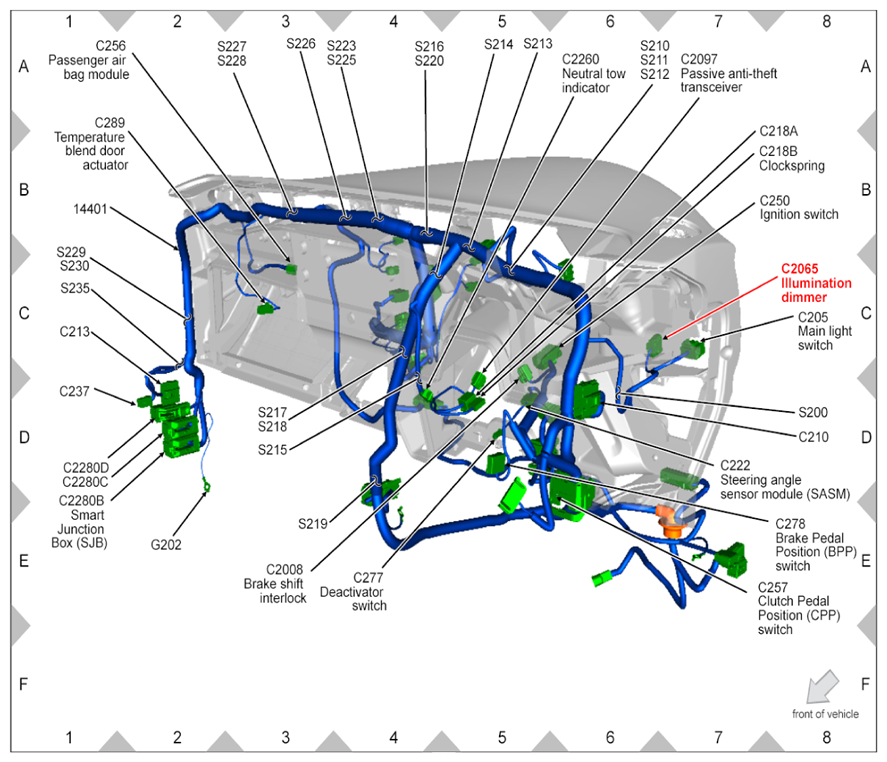

Fig 224: Identifying C2065 Illumination Dimmer Location - Behind Dash Panel, LH Side

Courtesy of FORD MOTOR CO.

Fig 225: Identifying C2097 Passive Anti-theft Transceiver Location - On Steering Column

Courtesy of FORD MOTOR CO.

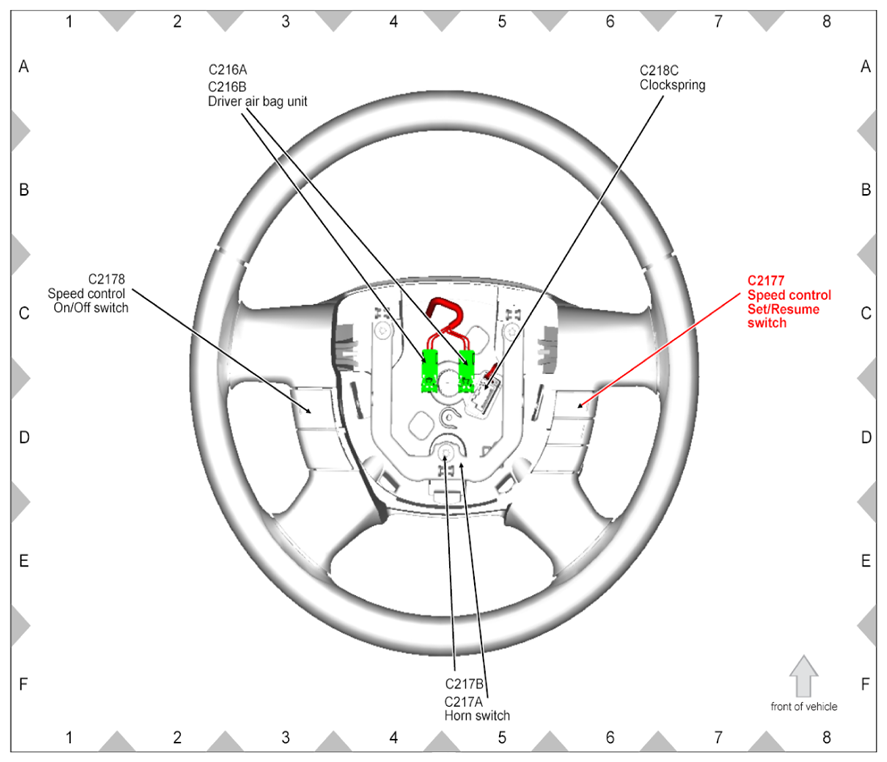

Fig 226: Identifying C2177 Speed Control Set/Resume Switch Location - In Steering Wheel

Courtesy of FORD MOTOR CO.

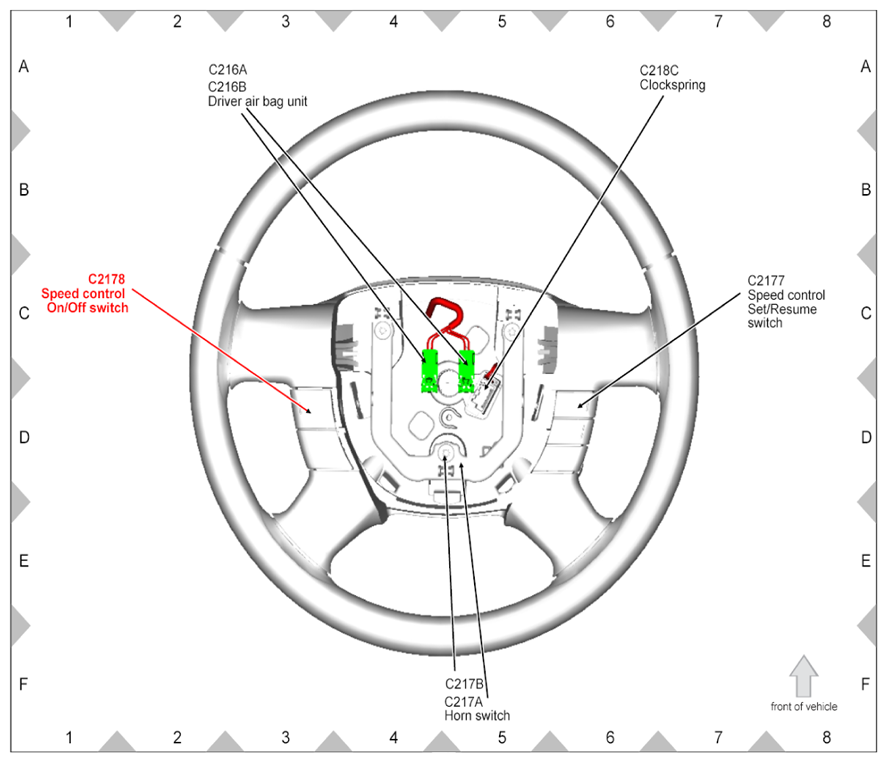

Fig 227: Identifying C2178 Speed Control On/Off Switch Location - In Steering Wheel

Courtesy of FORD MOTOR CO.

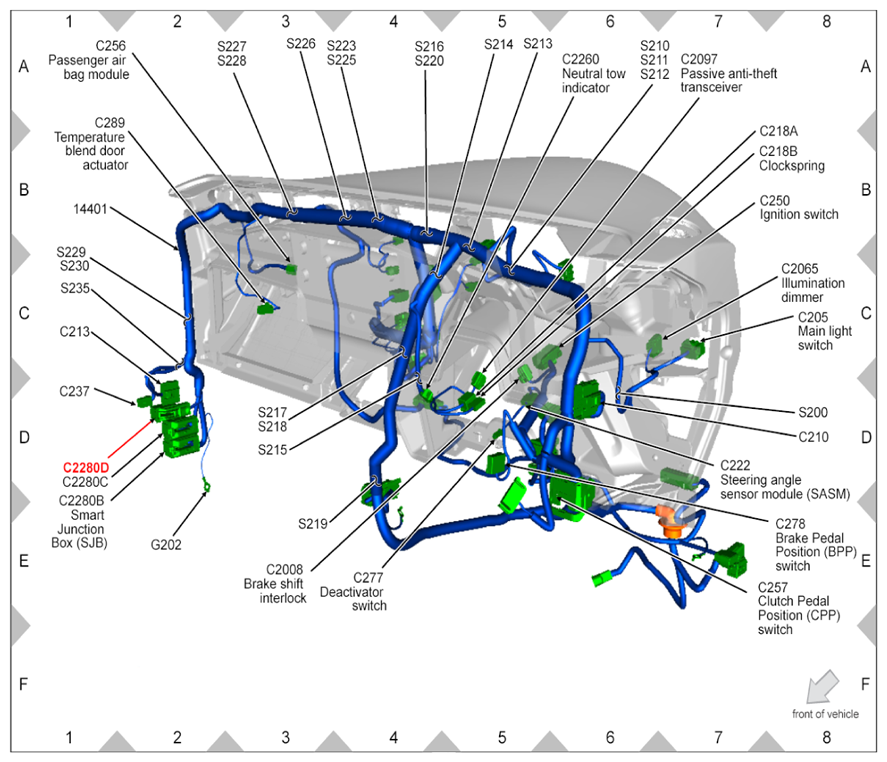

Fig 228: Identifying C2260 Neutral Tow Indicator Location - Near Steering Column

Courtesy of FORD MOTOR CO.

Fig 229: Identifying C2280A Smart Junction Box (SJB) Location - RH A-Pillar, Below Dash Panel

Courtesy of FORD MOTOR CO.

Fig 230: Identifying C2280B Smart Junction Box (SJB) Location - RH A-Pillar, Below Dash Panel

Courtesy of FORD MOTOR CO.

Fig 231: Identifying C2280C Connector Location - RH A-Pillar, Below Dash Panel

Courtesy of FORD MOTOR CO.

Fig 232: Identifying C2280D Connector Location - RH A-Pillar, Below Dash Panel

Courtesy of FORD MOTOR CO.

Fig 233: Identifying C2286 Passenger Air Bag Deactivation (PAD) Indicator Location - Bash Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 234: Identifying C2358 Satellite Radio Receiver Location - Behind Dash Panel

Courtesy of FORD MOTOR CO.

Fig 235: Identifying C3007 Connector Location - In Passenger Seat Base

Courtesy of FORD MOTOR CO.

Fig 236: Identifying C3042 Seat Pressure Sensor Location - In Passenger Seat Base

Courtesy of FORD MOTOR CO.

Fig 237: Identifying C3159 Occupant Classification System Module (OCSM) Location - In Passenger Seat Base

Courtesy of FORD MOTOR CO.

Fig 238: Identifying C3201 Safety Belt Buckle Pretensioner, Driver Location - In Driver Seat Base, RH Side

Courtesy of FORD MOTOR CO.

Fig 239: Identifying C3202 Safety Belt Buckle Pretensioner, Passenger Location - In Passenger Seat Base, LH Side

Courtesy of FORD MOTOR CO.

Fig 240: Identifying C3251 Safety Belt Tension Sensor Location - (2-Door) Passenger Compartment, Right Rear

Courtesy of FORD MOTOR CO.

Fig 241: Identifying C3251 Safety Belt Tension Sensor Location - (Regular Cab) Passenger Compartment, Right Rear

Courtesy of FORD MOTOR CO.

Fig 242: Identifying C3251 Safety Belt Tension Sensor Location - (Super Cab) Passenger Compartment, Right Rear

Courtesy of FORD MOTOR CO.

Fig 243: Identifying C3312 Audio Input Jack Location - Behind Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 244: Identifying C4033 Fuel Tank Unit Location - Vehicle Underbody, LH Side

Courtesy of FORD MOTOR CO.
