Main Light Switch, Exterior Lamps: Schematic

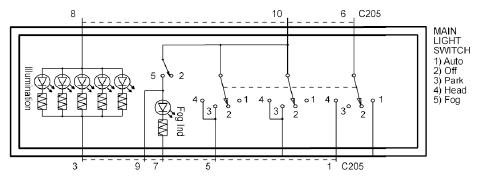

Fig 1: Identifying Main Light Switch, Exterior Lamps - Schematic

G07336804

Courtesy of FORD MOTOR CO.
