Transmission Control (TC) Switch: Notes

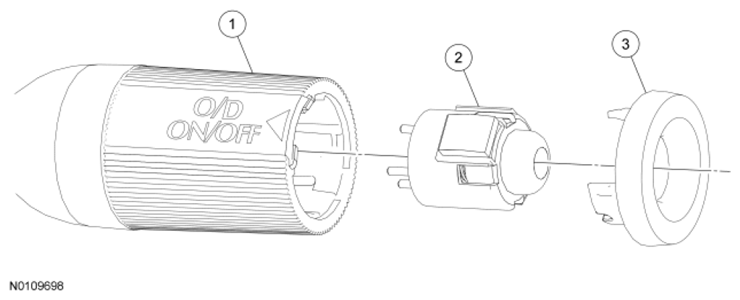

Fig 1: Identifying Transmission Control (TC) Switch, Transmission Selector Lever And TCS Cover
G06516420Courtesy of FORD MOTOR CO.
Item Part Number Description
1 7210 Transmission selector lever
2 7G550 Transmission Control Switch (TCS)
3 7A214 TCS cover
