Selector Lever: Notes

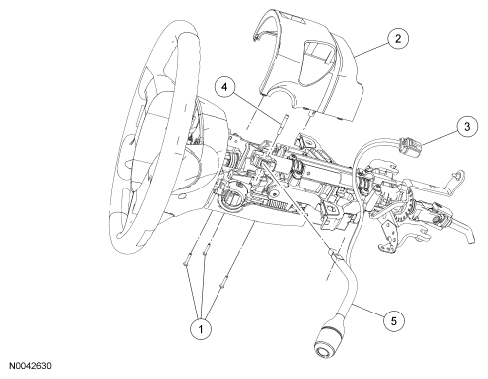

Fig 1: Exploded View Of Selector Lever
G06182067Courtesy of FORD MOTOR CO.
Item Part Number Description
1 391727-S Steering column shroud screws
2 3530-A Steering column upper shroud
3 7G550 Transmission Control Switch (TCS) electrical connector
4 7G357 Selector lever pin
5 7210 Selector lever
