Selector Lever Cable and Bracket: Installation

  1. Install the selector lever cable bracket.
    • Tighten to 40 Nm (30 lb-ft).
      Fig 1: Locating Selector Lever Cable Bracket With Mounting Bolts
      G06183181Courtesy of FORD MOTOR CO.
    2. NOTE: To prevent selector lever cable damage, do not apply force to the selector lever cable between the manual control lever and the selector lever cable bracket.
    NOTE: When installing the selector lever cable, make sure that the selector lever cable locking tabs are locked in place. Press the selector lever cable into the selector lever cable bracket and listen for the selector lever cable retainer to click into place. Pull back on the selector lever cable to make sure that the selector lever is locked into the selector lever cable bracket.
    Fig 2: Locating Selector Lever Cable Clip
    G06183179Courtesy of FORD MOTOR CO.
  2. Install the selector lever cable into the selector lever cable bracket.
    3. NOTE: To prevent selector lever cable damage, do not apply force to the selector lever cable between the manual control lever and the selector lever cable bracket.
    NOTE: When installing the selector lever cable end, make sure that the selector lever cable end is correctly installed onto the manual control lever ball stud. Pull back on the selector lever cable to make sure that the selector cable end is correctly installed onto the manual control lever ball stud.
    Fig 3: Installing Selector Lever Cable End Onto Manual Control Lever Ball Stud
    G06183138Courtesy of FORD MOTOR CO.
  3. Install the selector lever cable end onto the manual control lever ball stud.
  4. Connect the selector lever cable into the locating clip.
  5. Push the rubber grommet and selector lever cable through the bulkhead back into the vehicle.
    6. NOTE: When installing the selector lever cable, make sure that the selector lever cable locking tabs are locked in place and the cable end is snapped onto the ball stud. Press the selector lever cable into the bracket and listen for the cable to click into place. Pull back on the selector lever cable to make sure that it is locked into the bracket. Also, make sure that the selector lever cable end is correctly installed onto the ball stud. Pull back on the selector lever cable to make sure that the cable end is correctly installed.
  6. Connect the selector lever cable to the steering column.
    1. Connect the selector lever cable to the steering column bracket.
    2. Connect the selector lever cable eyelet to the steering column shift selector tube.

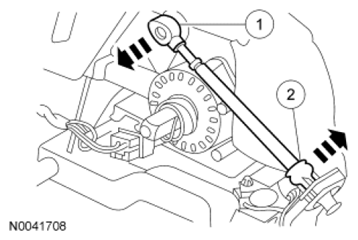

      Fig 4: Connecting Selector Lever Cable Eyelet To Steering Column Shift Selector Tube
      G06516416Courtesy of FORD MOTOR CO.
  7. Adjust the selector lever cable. For additional information, REFER to SELECTOR LEVER CABLE ADJUSTMENT .
