Steering Column Shroud: Notes

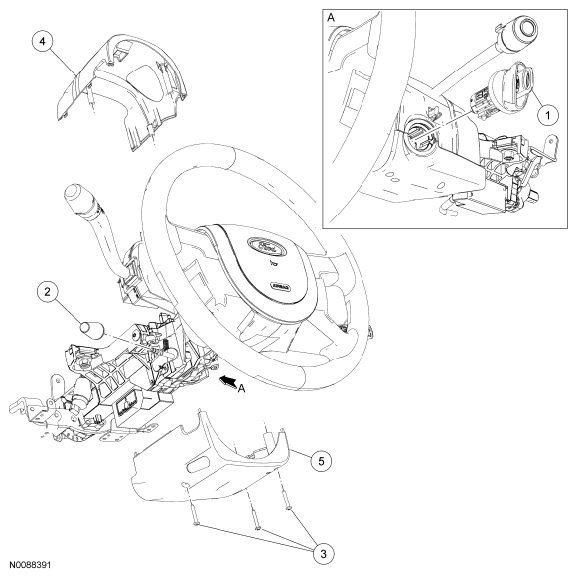

Fig 1: Exploded View Of Steering Column Shroud
G06185592Courtesy of FORD MOTOR CO.
Item Part Number Description
1 11582 Ignition lock cylinder
2 3F609 Tilt release lever/handle
3 391727 Steering column shroud screws (3 required)
4 3530 Upper steering column shroud
5 3533 Lower steering column shroud
