Power Steering Pump - 4.0L: Notes

SPECIAL TOOL(S)

Installer Set, Teflon® Seal
211-D027 (D90P-3517-A) or equivalent

MATERIAL

Item	Specification
MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada)	MERCON® V

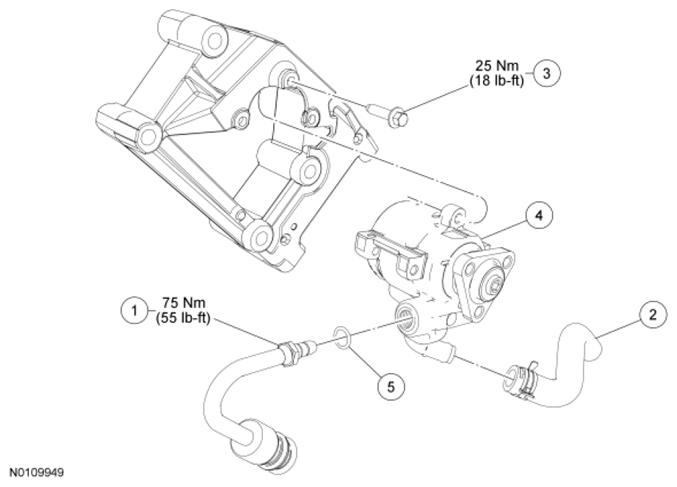

Fig 1: Exploded View Of Power Steering Pump With Torque Specifications - 4.0L

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	3A719	Pressure line-to-pump fitting
2	3659	Power steering pump supply hose
3	W700839	Power steering pump bolt (3 required)
4	3A674	Power steering pump
5	N803257	Teflon® seal
