Starter Motor - 4.0L: Notes

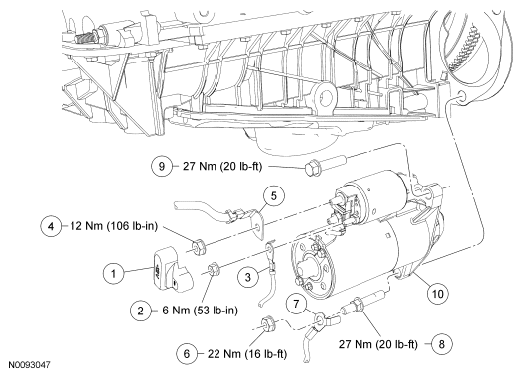

Fig 1: Exploded View Of Starter Motor With Torque Specifications - 4.0L
G06186247Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14488 Starter solenoid terminal cover
2 N805320 Starter motor solenoid wire nut
3 - Starter motor solenoid wire (part of 14A280)
4 W706414 Starter motor solenoid battery cable nut
5 - Starter motor solenoid battery cable (part of 14A280)
6 N605789 Ground cable nut
7 - Ground cable (part of 14A280)
8 W500320 Starter motor stud bolt
9 W710601 Starter motor bolt
10 11000 Starter motor
