Valve Stem Diameter
NOTE:
Refer to the ENGINE MECHANICAL - 2.3L
or ENGINE MECHANICAL - 4.0L SOHC
article(s)
for the specification.

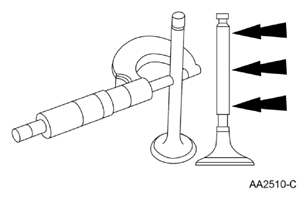

- Measure the diameter of each intake and exhaust valve stem at the points shown in illustration. Verify the diameter is within specification.
