Valve Spring Free Length

NOTE: Refer to the ENGINE MECHANICAL - 2.3L or ENGINE MECHANICAL - 4.0L SOHC article(s) for the specification.
  1. Measure the free length of each valve spring.

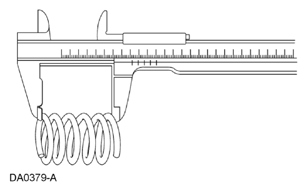

    Fig 1: Measuring Free Length Of Valve Spring
    G07798504Courtesy of FORD MOTOR CO.
