Piston Pin Diameter

NOTE: Refer to the ENGINE MECHANICAL - 2.3L or ENGINE MECHANICAL - 4.0L SOHC article(s) for the specification.

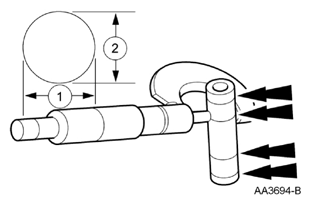

  1. Measure the piston pin diameter in 2 directions at the points shown in illustration. Verify the diameter is within specification.
    Fig 1: Measuring Piston Pin Diameter
    G07798479Courtesy of FORD MOTOR CO.
