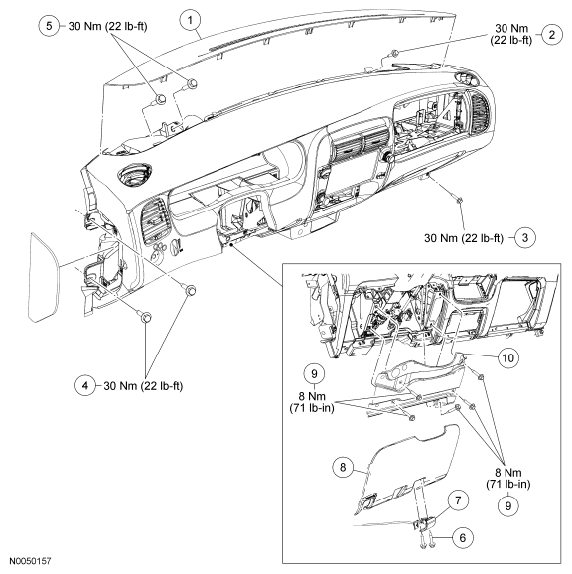

Instrument Panel - Exploded View
| Item | Part Number | Description |
|---|---|---|
| 1 | 044E82 | Instrument panel defroster opening grille |
| 2 | N811560 | Instrument panel cowl top bolt |
| 3 | N811560 | Instrument panel bolt |
| 4 | N811560 | Instrument panel bolts (2 required) |
| 5 | N811560 | Instrument panel cowl top bolts (2 required) |
| 6 | N804693 | Hood release handle bolt (2 required) |
| 7 | 16B975 | Hood release handle |
| 8 | 04459 | Steering column opening trim panel |
| 9 | W705962 | Steering column opening cover reinforcement bolts (5 required) |
| 10 | 017A28 | Steering column opening cover reinforcement |
- For additional information, refer to the appropriate procedure in this service information.
