Component Location Views

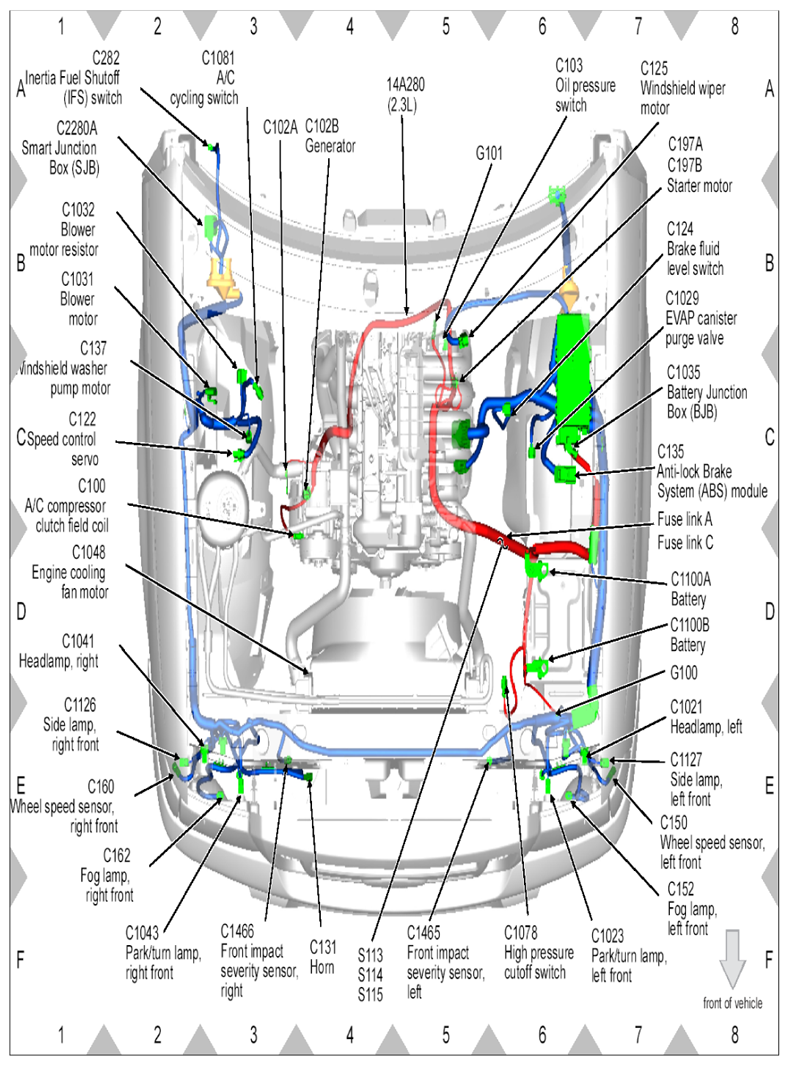

Fig 1: Identifying Engine Compartment Wiring Harness Connectors Location (1 Of 2)

G07881800

Courtesy of FORD MOTOR CO.

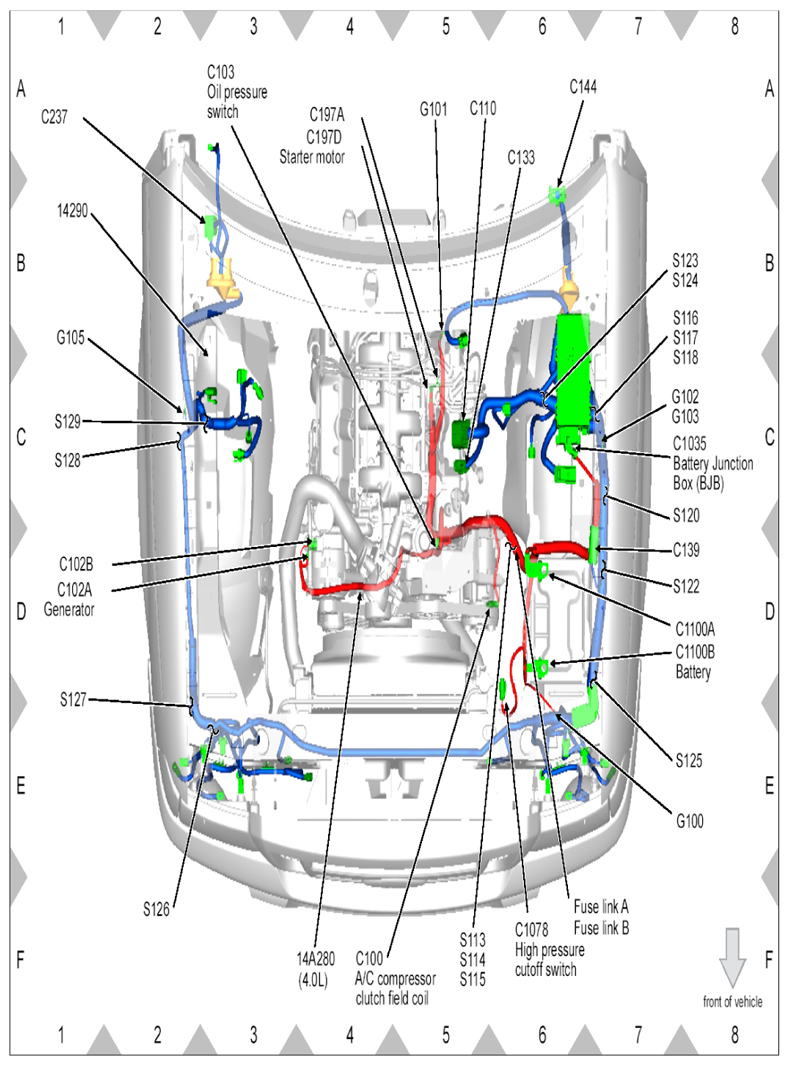

Fig 2: Identifying Engine Compartment Wiring Harness Connectors Location (2 Of 2)

G07881801

Courtesy of FORD MOTOR CO.

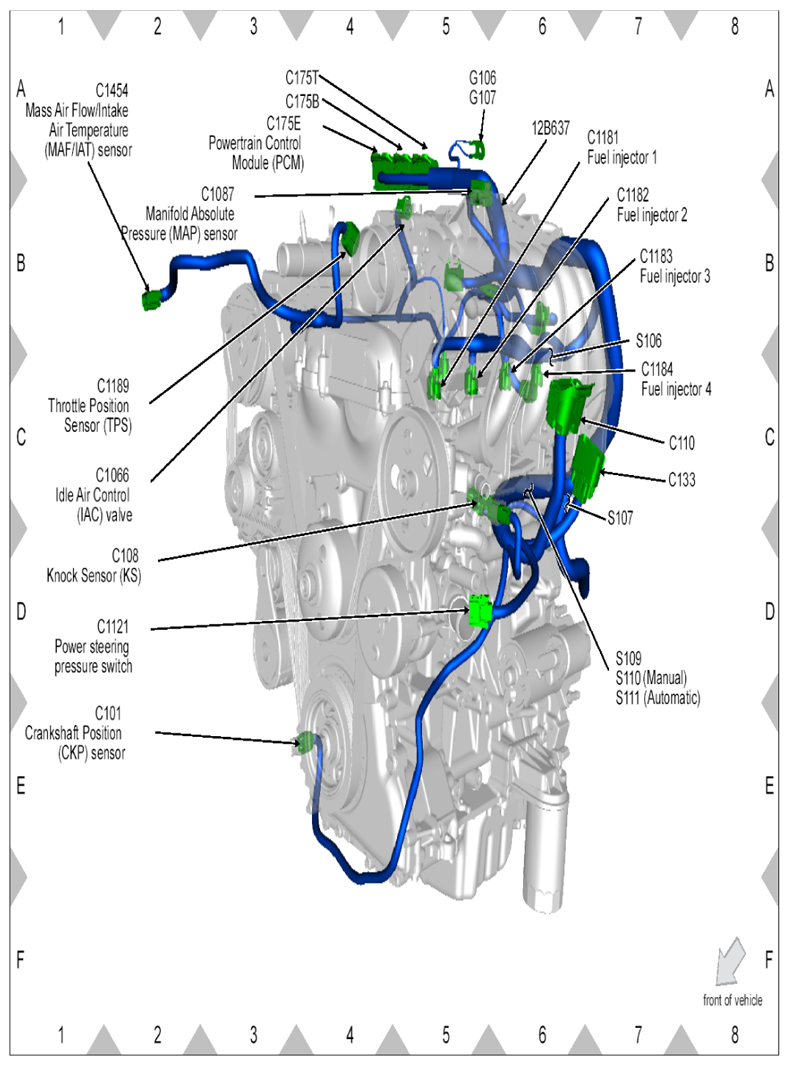

Fig 3: Identifying Engine Wiring Harness Connectors Location (1 Of 4)

G07881802

Courtesy of FORD MOTOR CO.

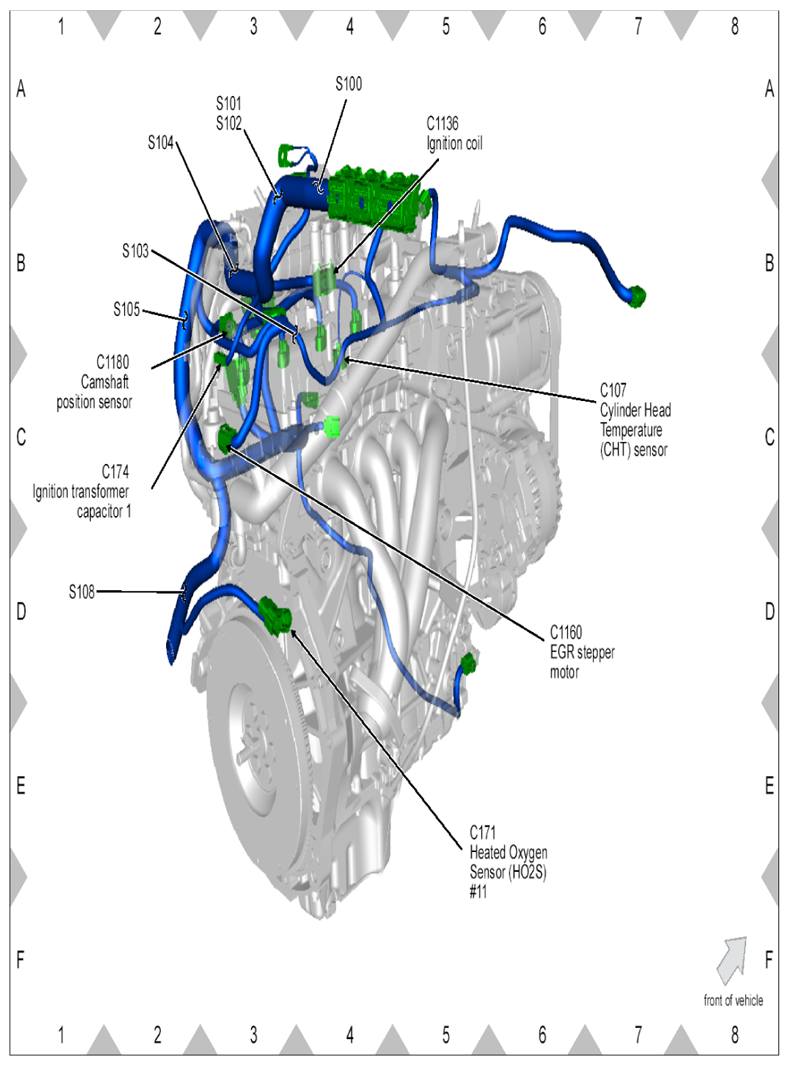

Fig 4: Identifying Engine Wiring Harness Connectors Location (2 Of 4)

G07881803

Courtesy of FORD MOTOR CO.

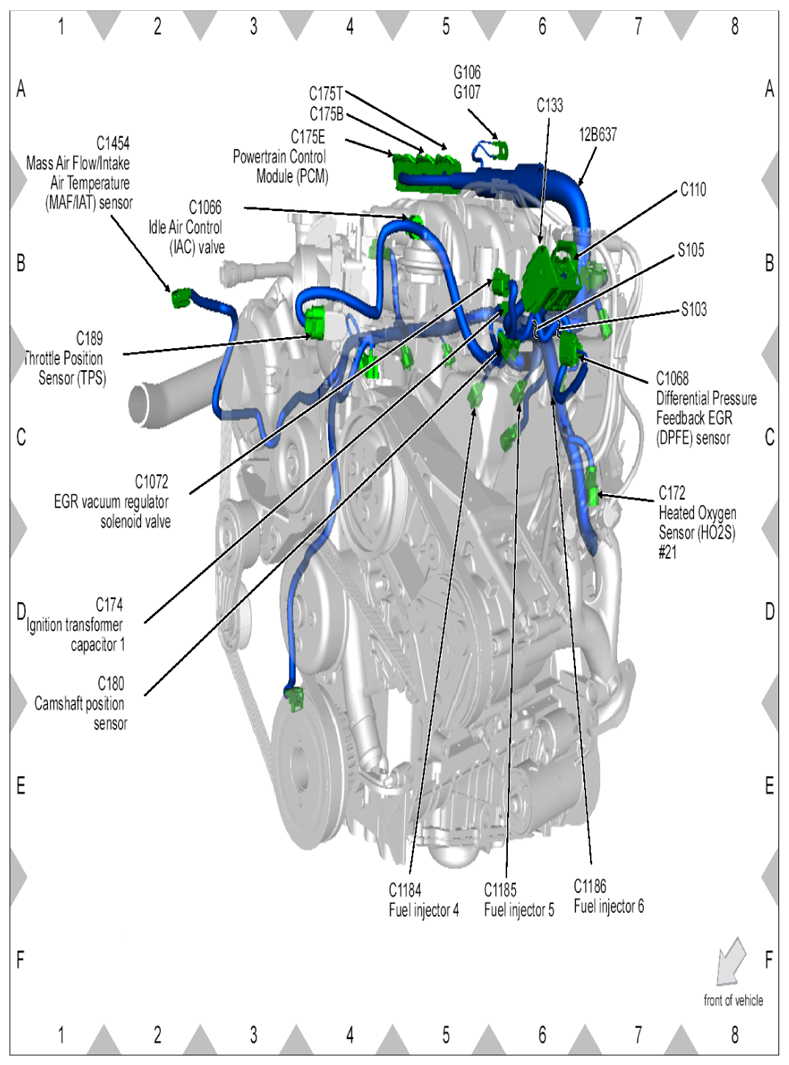

Fig 5: Identifying Engine Wiring Harness Connectors Location (3 Of 4)

G07881804

Courtesy of FORD MOTOR CO.

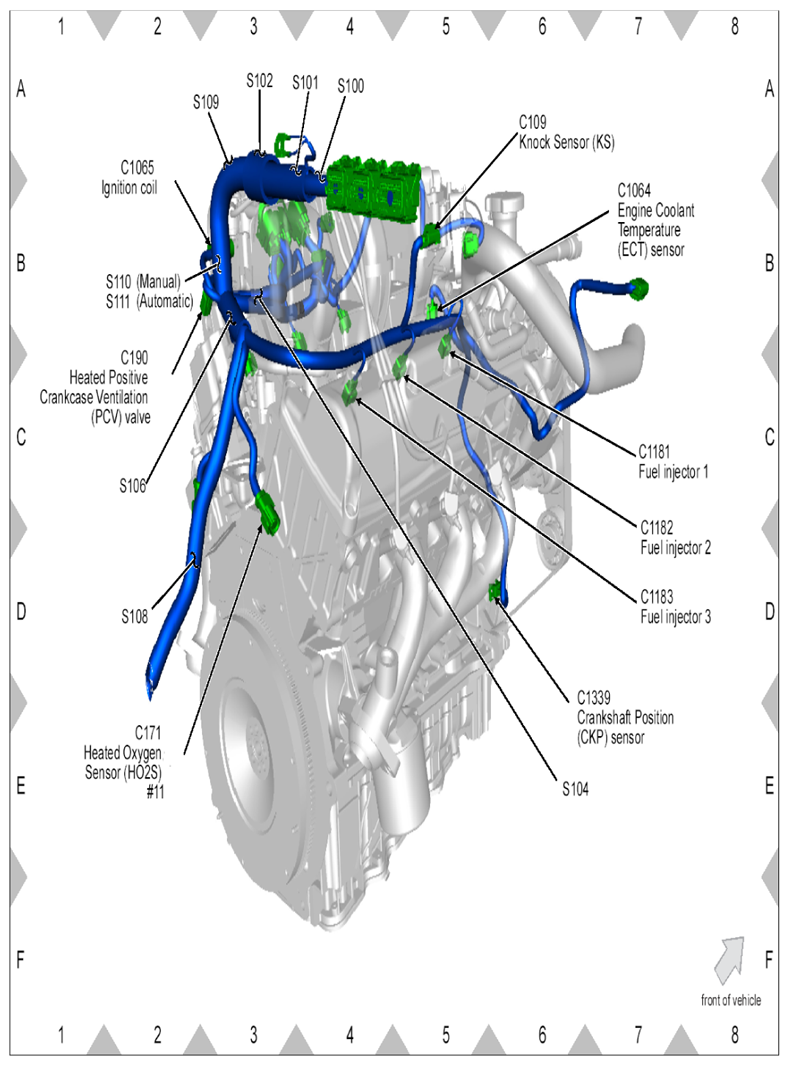

Fig 6: Identifying Engine Wiring Harness Connectors Location (4 Of 4)

G07881805

Courtesy of FORD MOTOR CO.

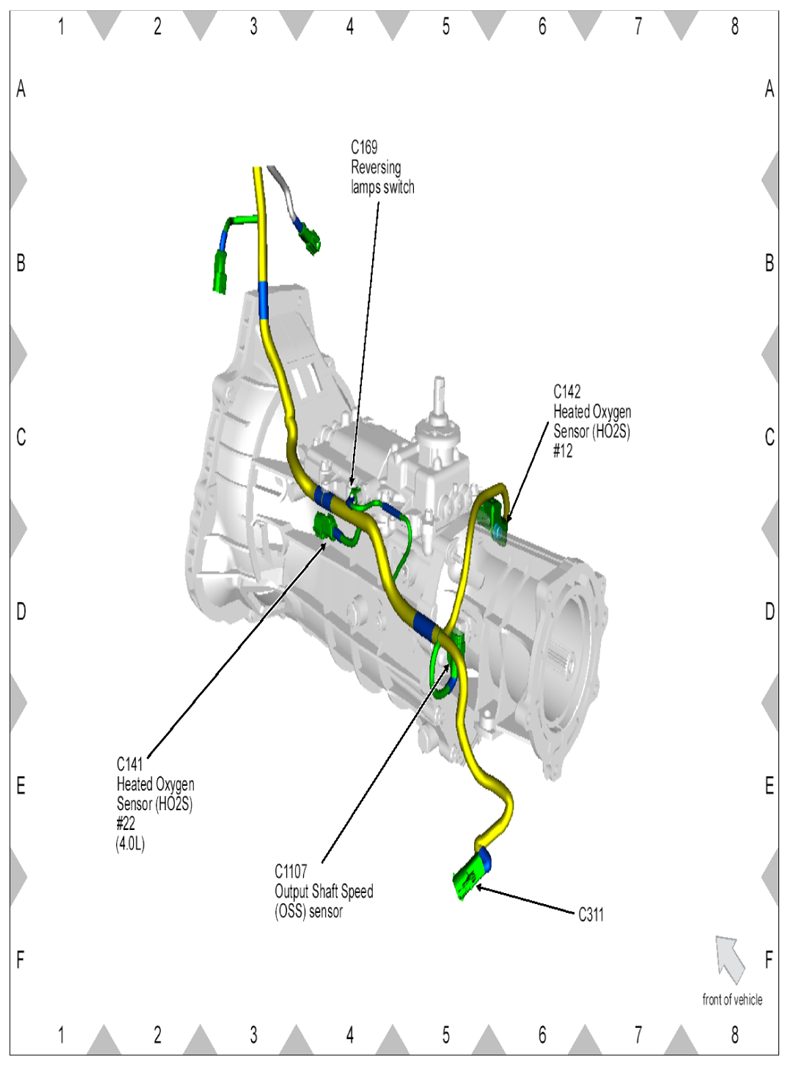

Fig 7: Identifying Engine Transmission Wiring Harness Connectors Location (1 Of 2)

G07881806

Courtesy of FORD MOTOR CO.

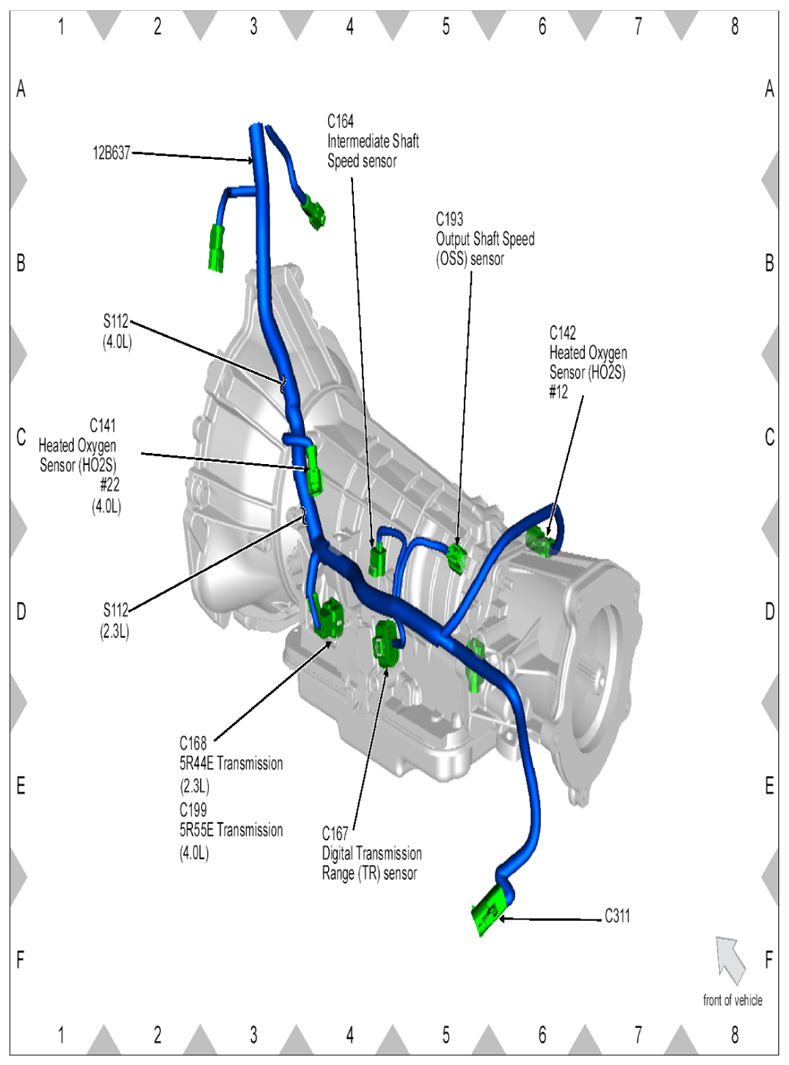

Fig 8: Identifying Engine Transmission Wiring Harness Connectors Location (2 Of 2)

G07881807

Courtesy of FORD MOTOR CO.

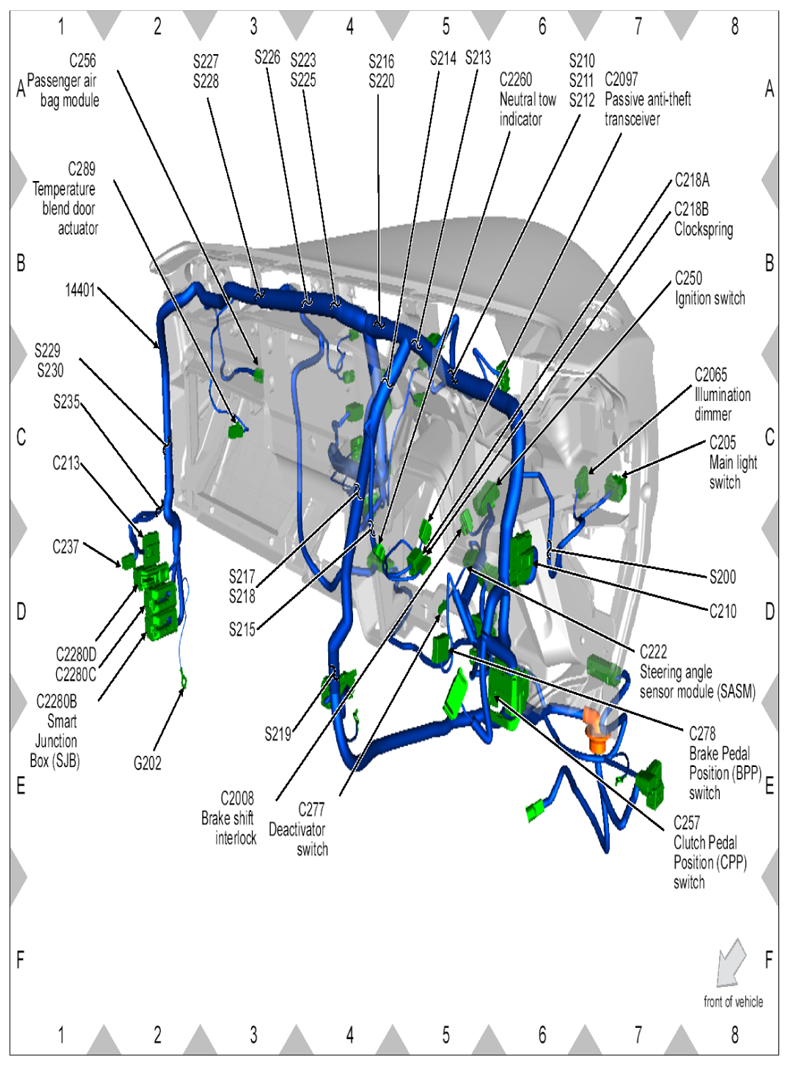

Fig 9: Identifying Dash Panel Wiring Harness Connectors Location (1 Of 3)

G07881808

Courtesy of FORD MOTOR CO.

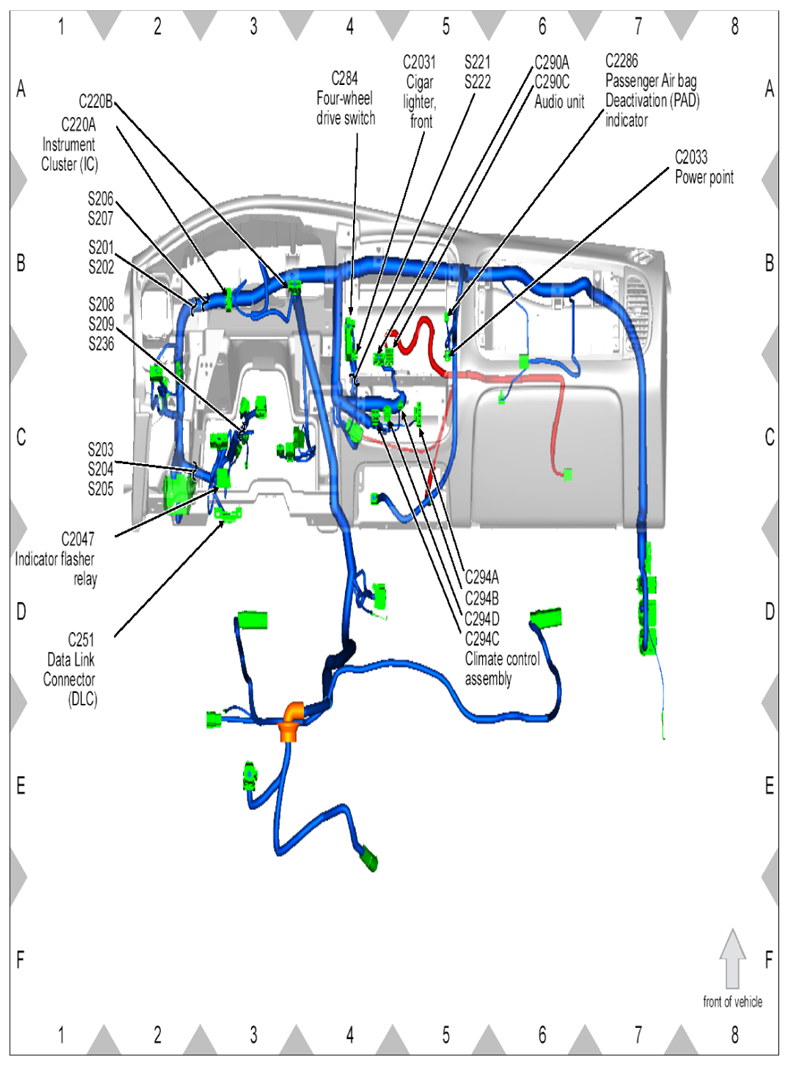

Fig 10: Identifying Dash Panel Wiring Harness Connectors Location (2 Of 3)

G07881809

Courtesy of FORD MOTOR CO.

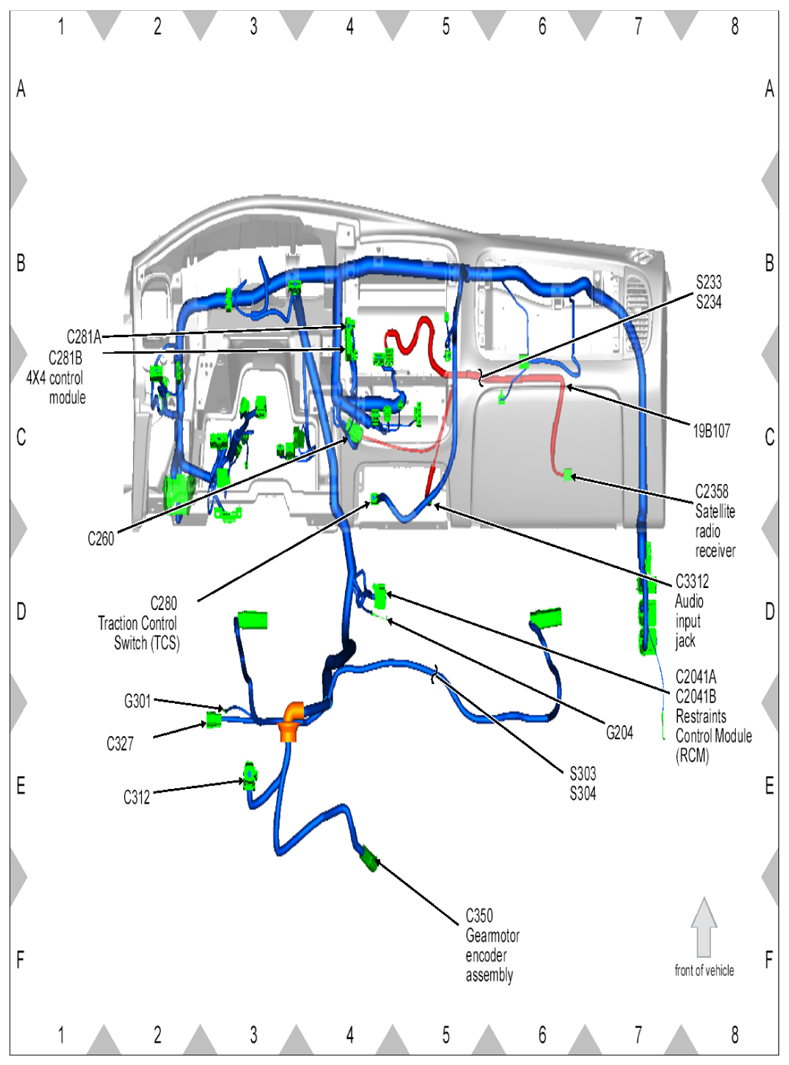

Fig 11: Identifying Dash Panel Wiring Harness Connectors Location (3 Of 3)

G07881810

Courtesy of FORD MOTOR CO.

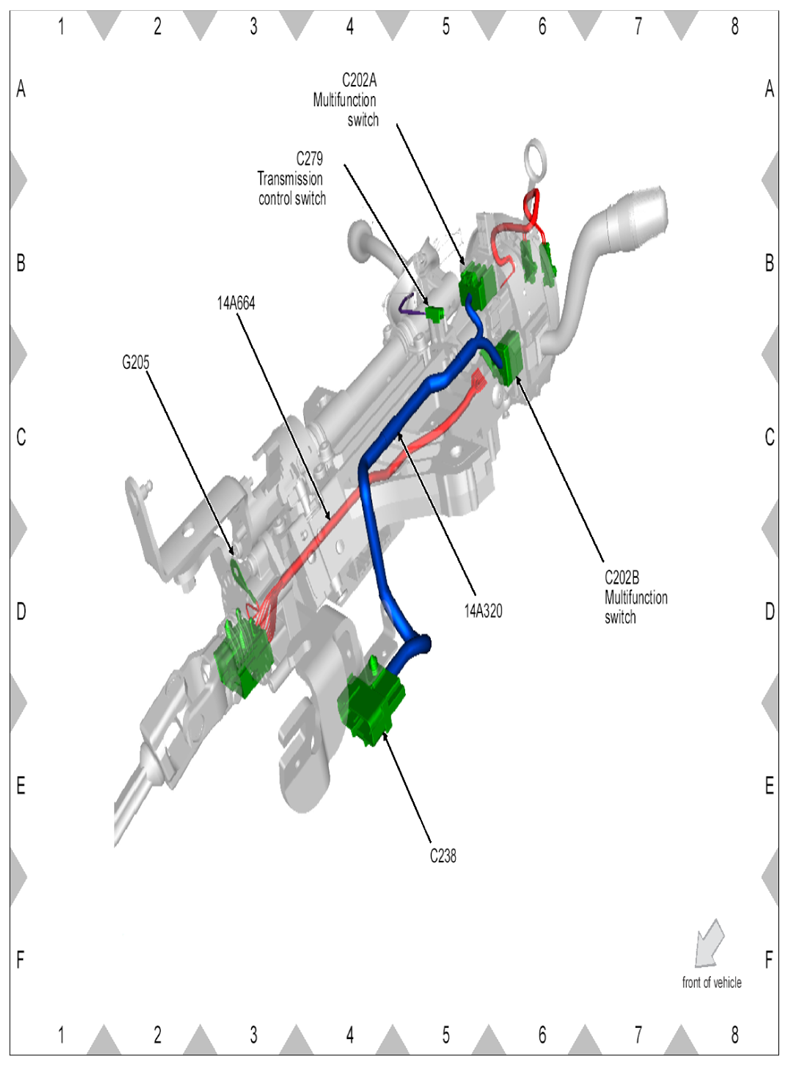

Fig 12: Identifying Steering Column Wiring Harness Connectors Location

G07881811

Courtesy of FORD MOTOR CO.

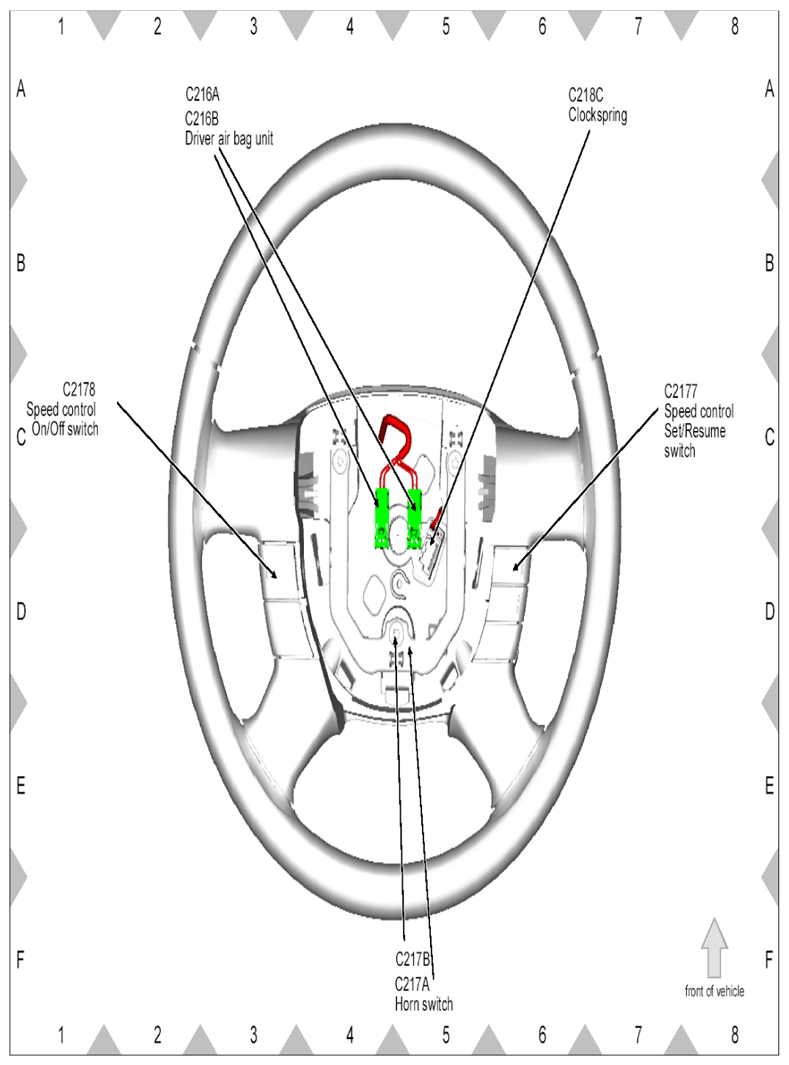

Fig 13: Identifying Steering Wheel Wiring Harness Connectors Location

G07881812

Courtesy of FORD MOTOR CO.

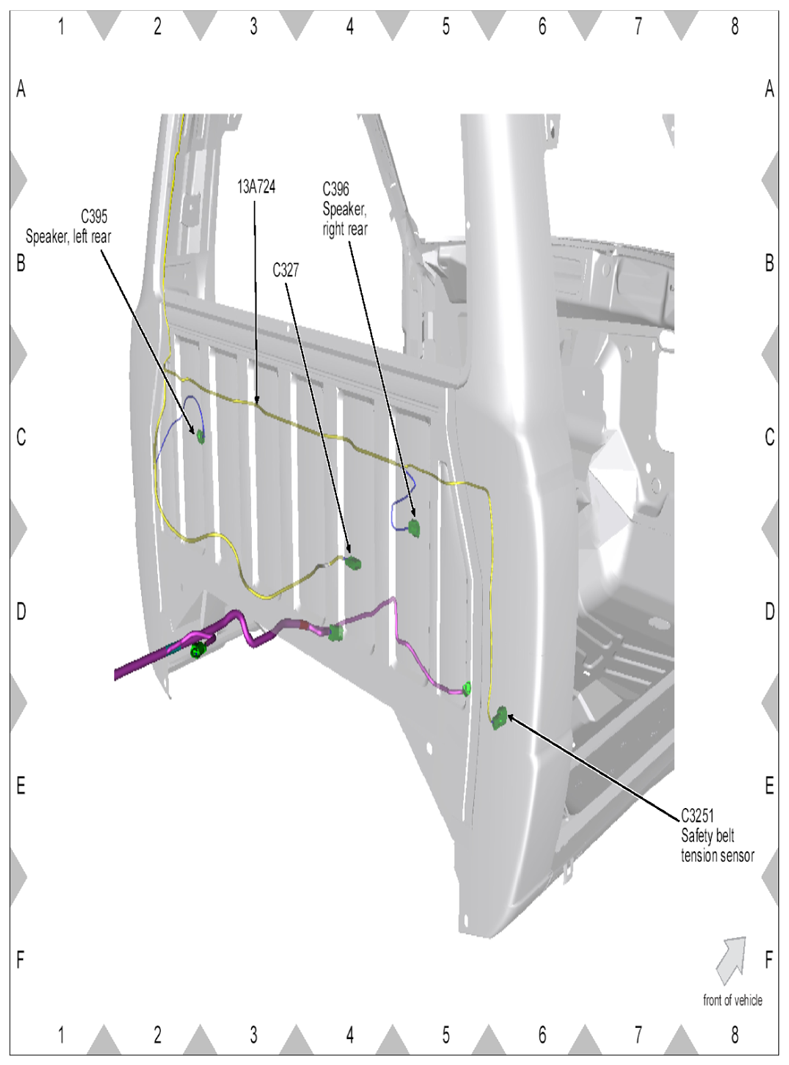

Fig 14: Identifying Passenger Back Side Wiring Harness Connectors Location (1 Of 3)

G07881813

Courtesy of FORD MOTOR CO.

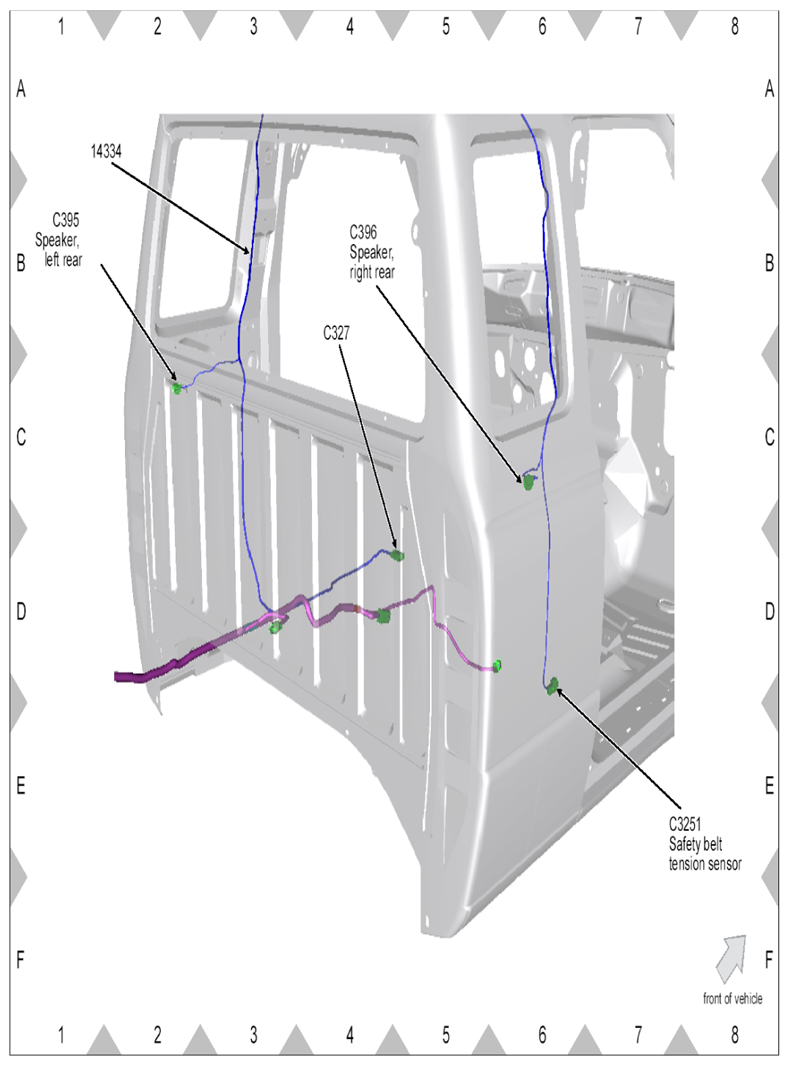

Fig 15: Identifying Passenger Back Side Wiring Harness Connectors Location (2 Of 3)

G07881814

Courtesy of FORD MOTOR CO.

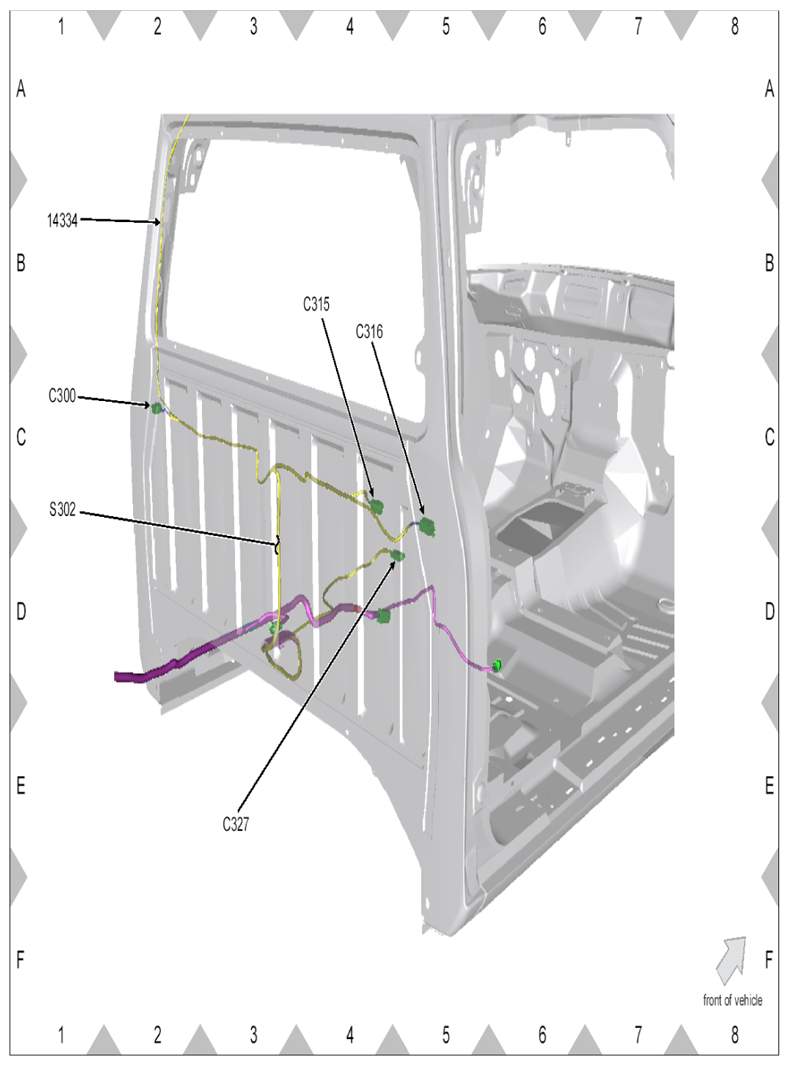

Fig 16: Identifying Passenger Back Side Wiring Harness Connectors Location (3 Of 3)

G07881815

Courtesy of FORD MOTOR CO.

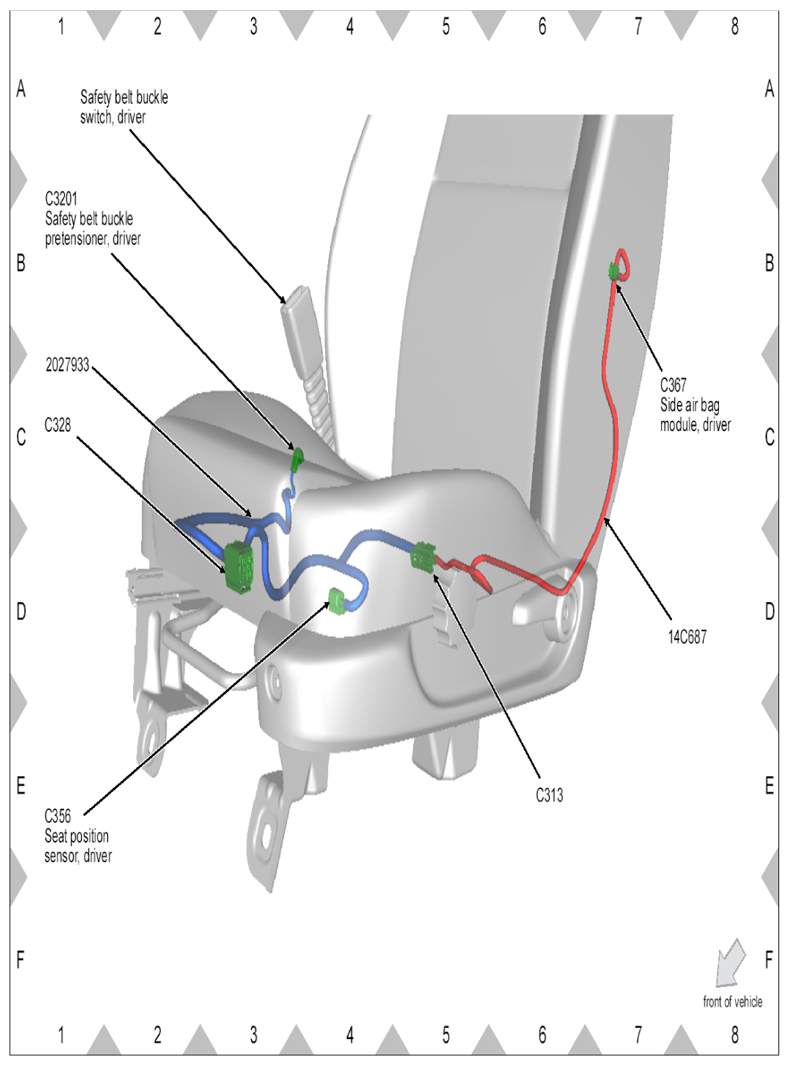

Fig 17: Identifying Driver Side Seat Wiring Harness Connectors Location

G07881816

Courtesy of FORD MOTOR CO.

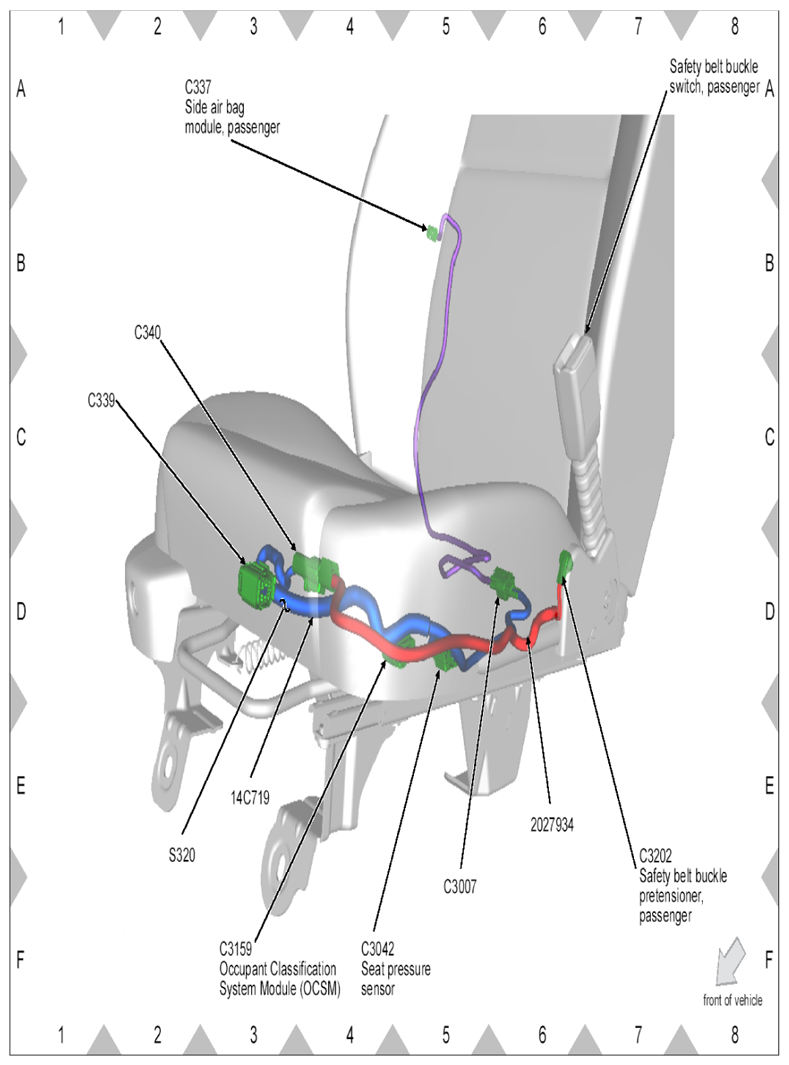

Fig 18: Identifying Passenger Side Seat Wiring Harness Connectors Location

G07881817

Courtesy of FORD MOTOR CO.

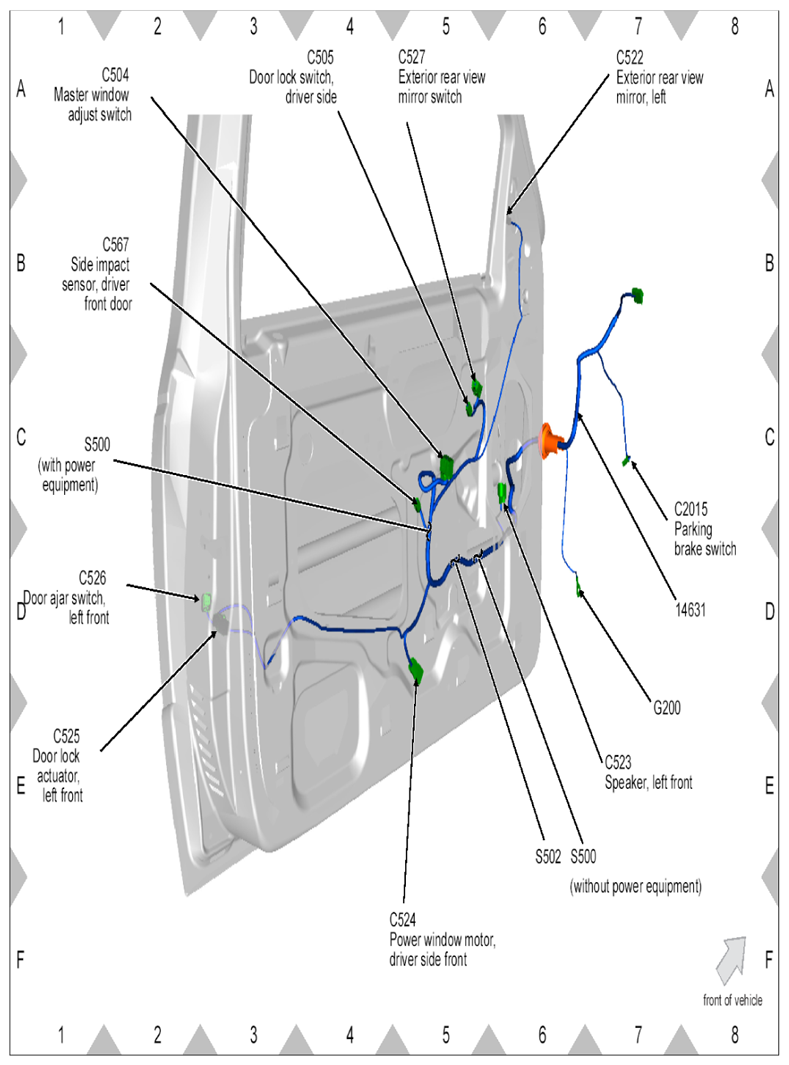

Fig 19: Identifying LH Driver Side Wiring Harness Connectors Location

G07881818

Courtesy of FORD MOTOR CO.

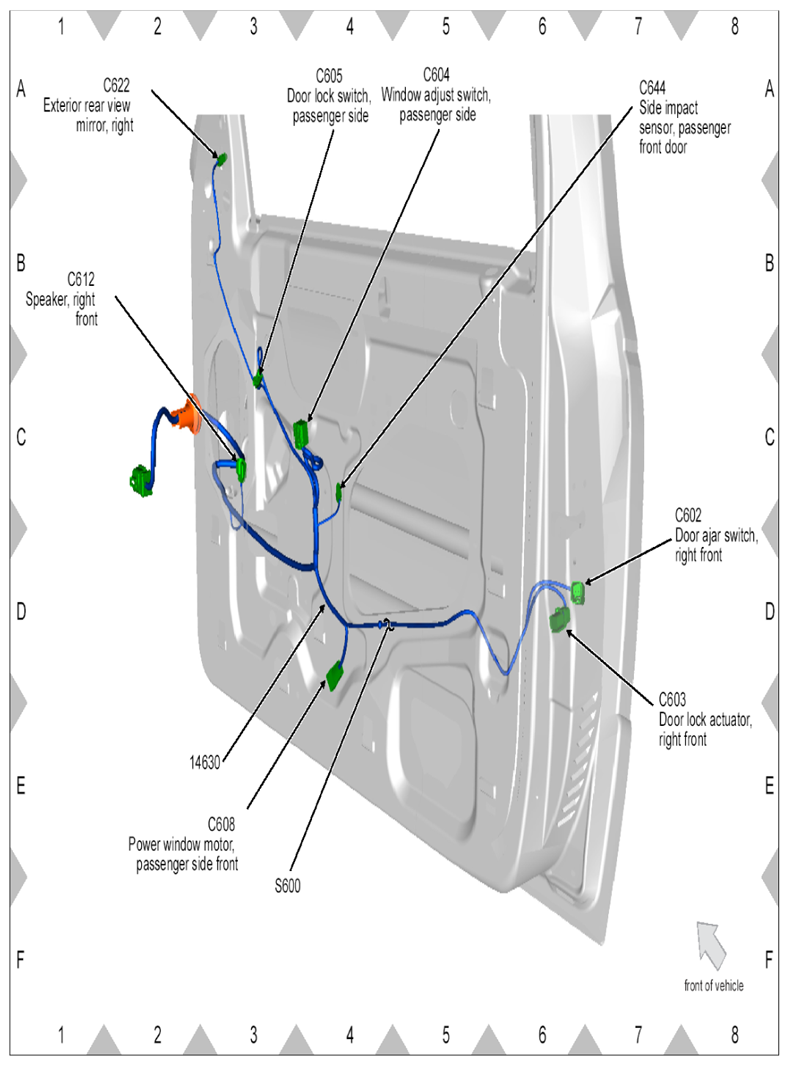

Fig 20: Identifying RH Driver Side Wiring Harness Connectors Location

G07881819

Courtesy of FORD MOTOR CO.

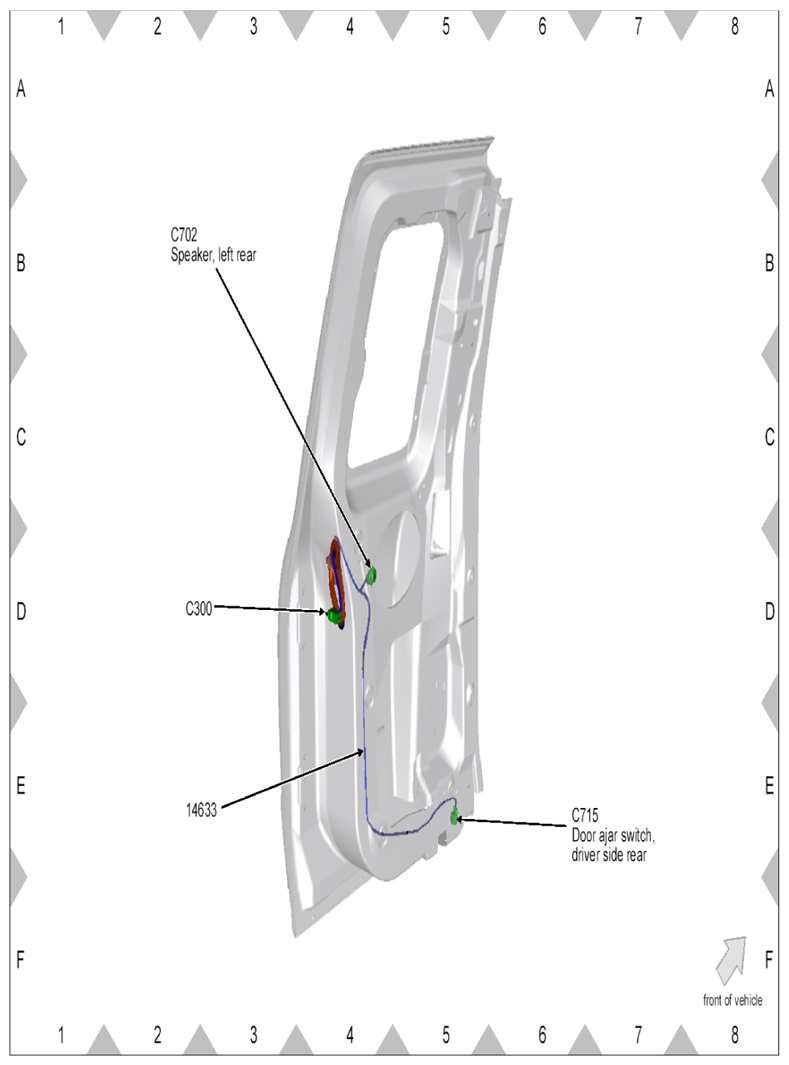

Fig 21: Identifying LH Passenger Side Wiring Harness Connectors Location

G07881820

Courtesy of FORD MOTOR CO.

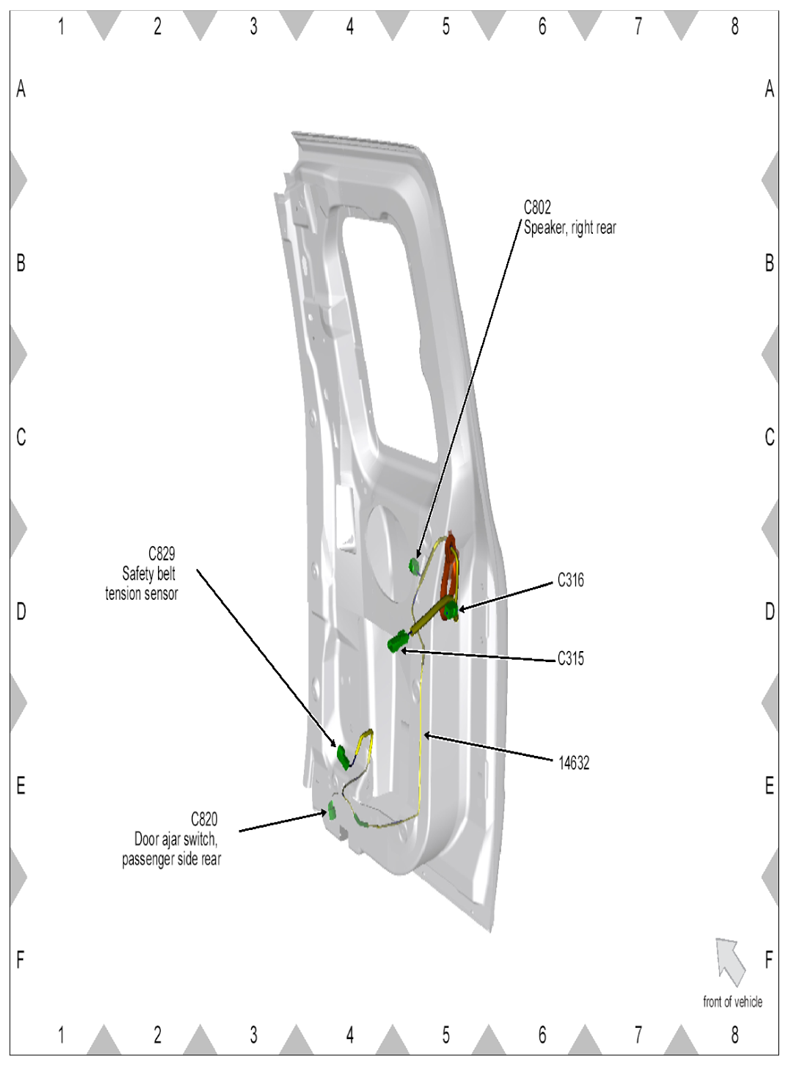

Fig 22: Identifying RH Passenger Side Wiring Harness Connectors Location

G07881821

Courtesy of FORD MOTOR CO.

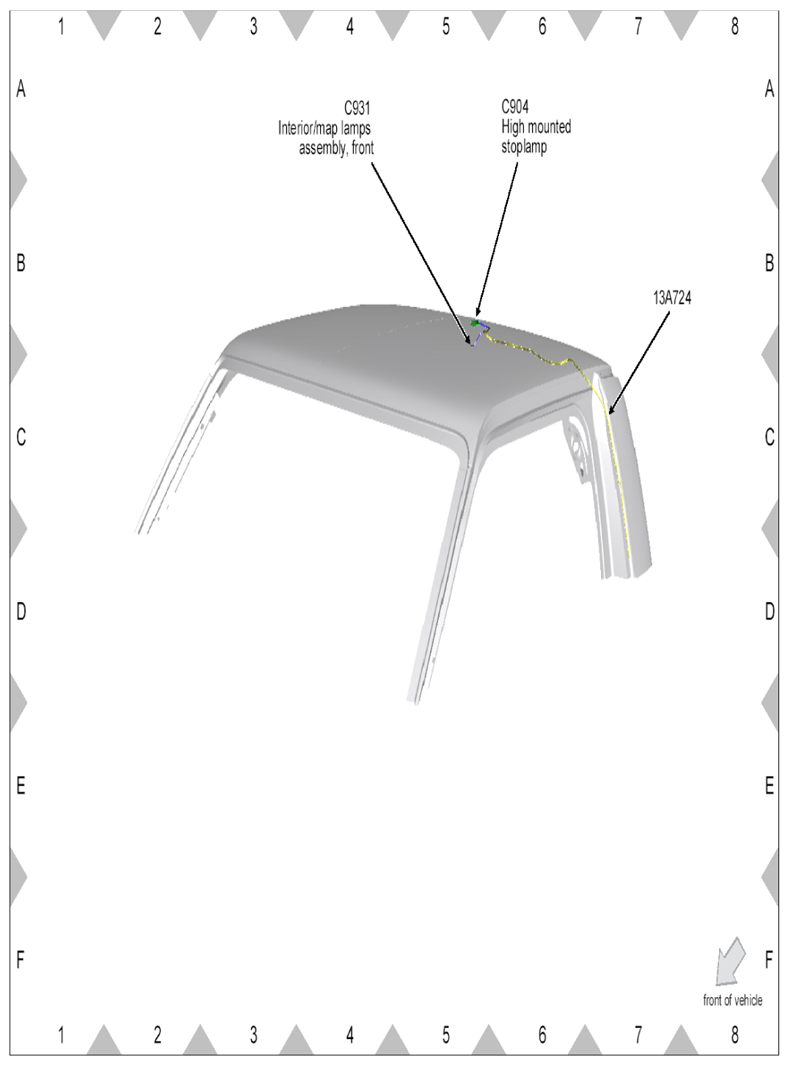

Fig 23: Identifying Roof Panel Wiring Harness Connectors Location (1 Of 3)

G07881822

Courtesy of FORD MOTOR CO.

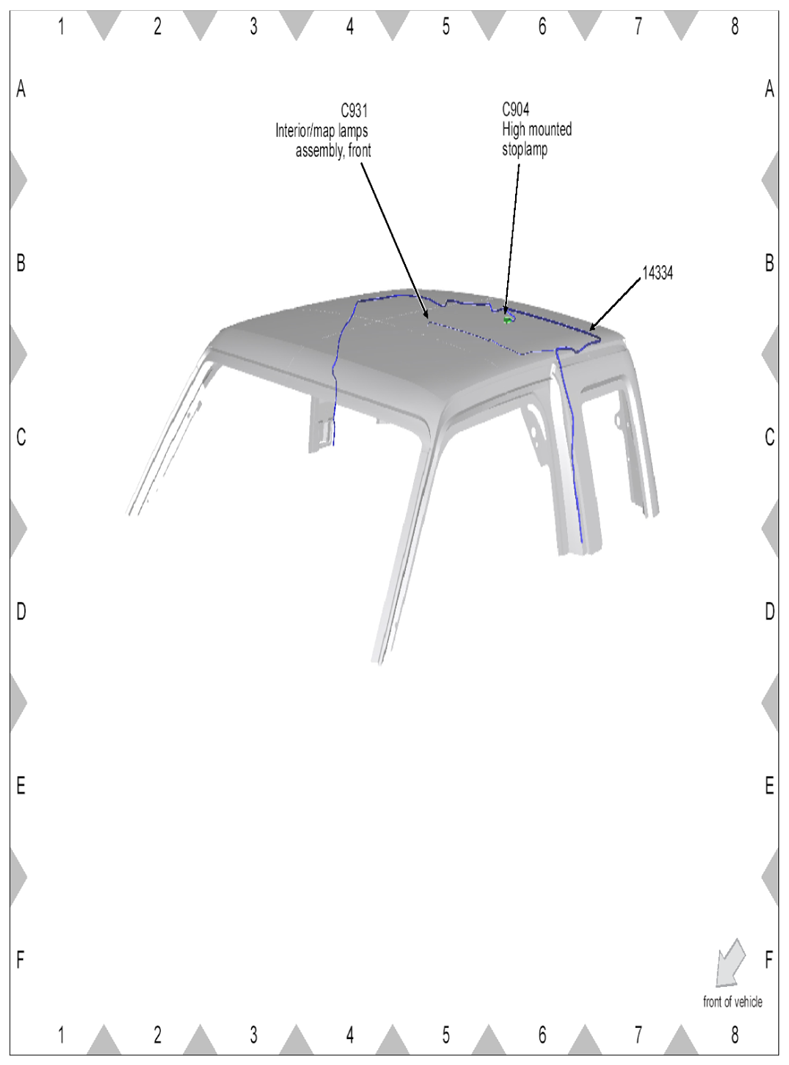

Fig 24: Identifying Roof Panel Wiring Harness Connectors Location (2 Of 3)

G07881823

Courtesy of FORD MOTOR CO.

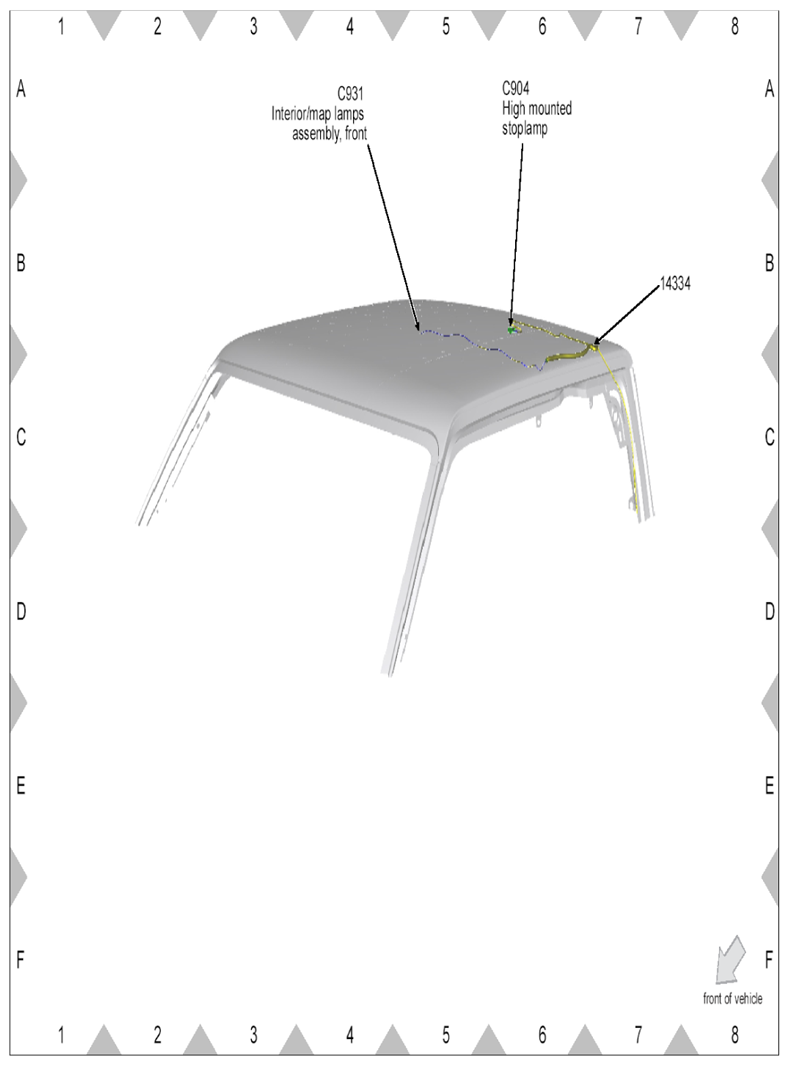

Fig 25: Identifying Roof Panel Wiring Harness Connectors Location (3 Of 3)

G07881824

Courtesy of FORD MOTOR CO.

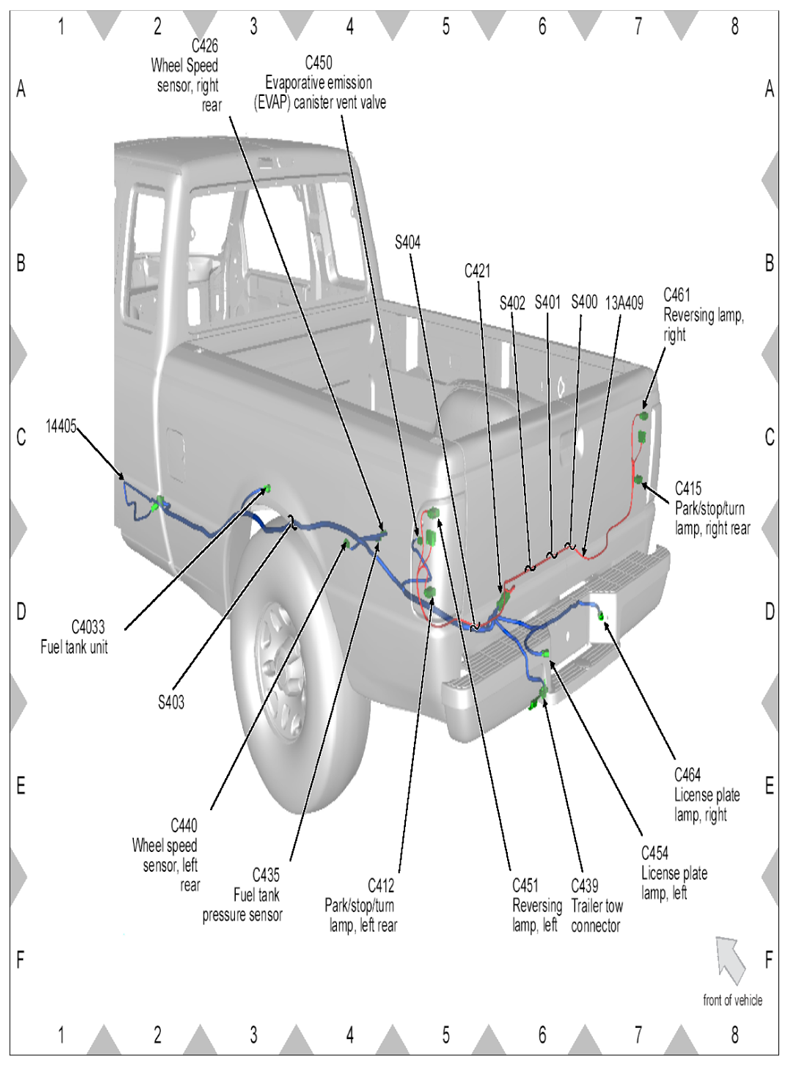

Fig 26: Identifying Rear Side Wiring Harness Connectors Location

G07881825

Courtesy of FORD MOTOR CO.
