Gear Motor Encoder Assembly Connector - C350
Gear Motor Encoder Assembly Connector - C350

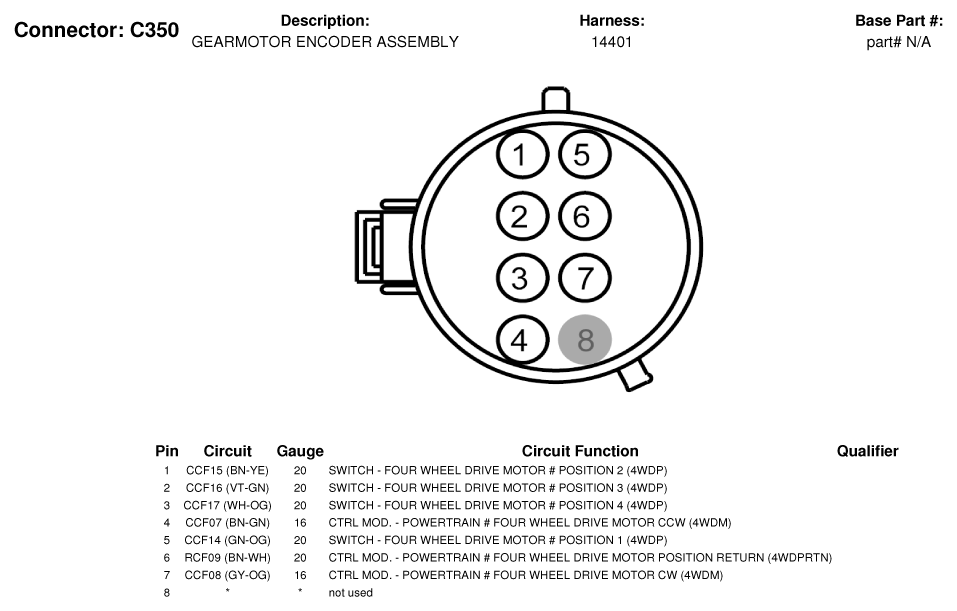

Fig 1: Gear Motor Encoder Assembly Connector End View (C350)
Courtesy of FORD MOTOR CO.
