Component Location Views

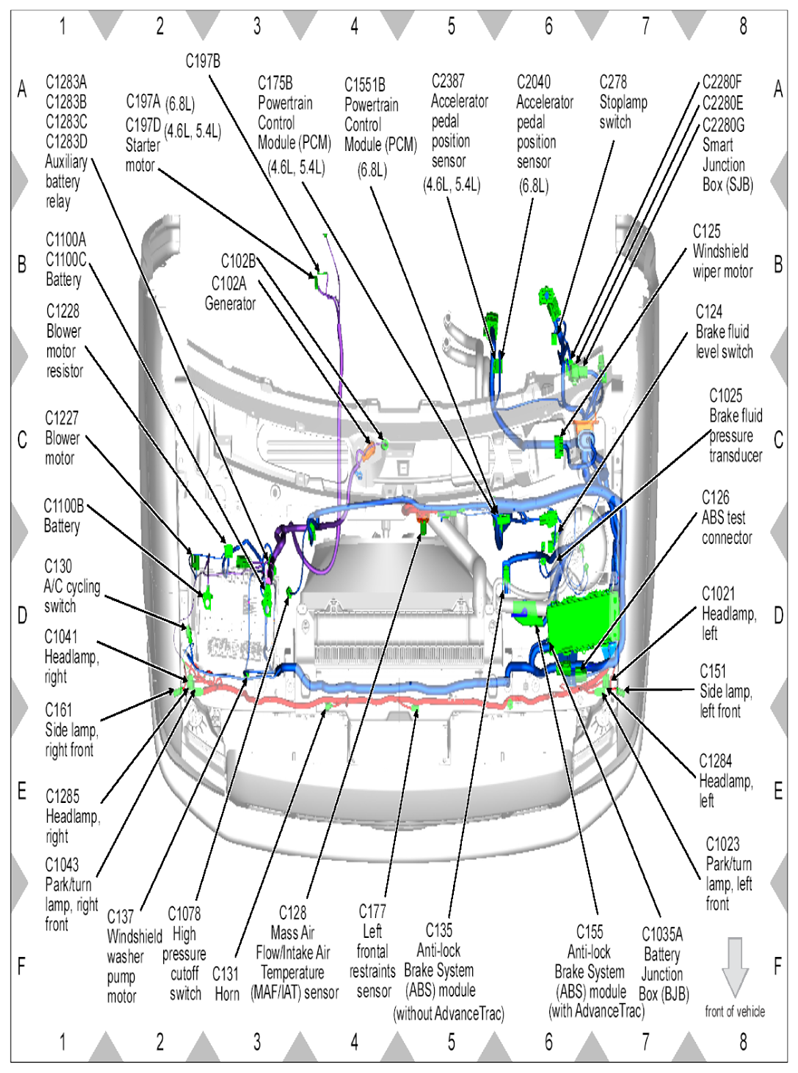

Fig 1: Engine Compartment Wiring Harness Connectors Location (1 Of 2)

G07854163

Courtesy of FORD MOTOR CO.

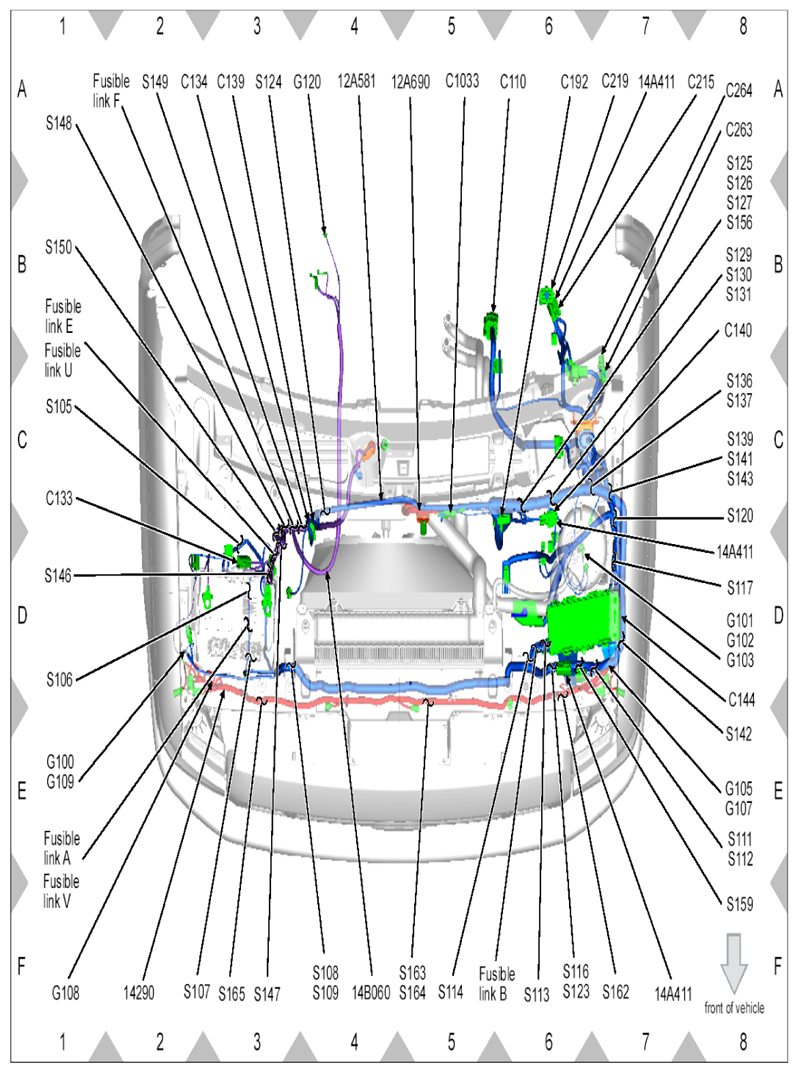

Fig 2: Engine Compartment Wiring Harness Connectors Location (2 Of 2)

G07854164

Courtesy of FORD MOTOR CO.

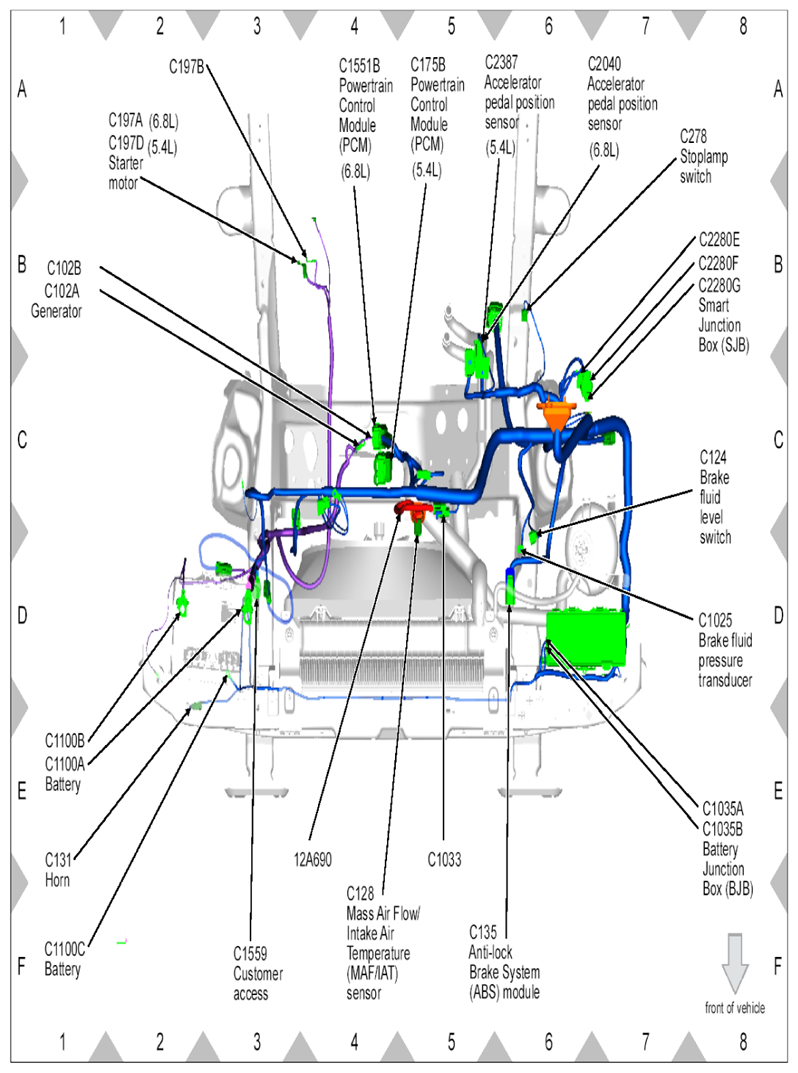

Fig 3: Vehicle Front Body Wiring Harness Connectors Location (1 Of 2)

G07854165

Courtesy of FORD MOTOR CO.

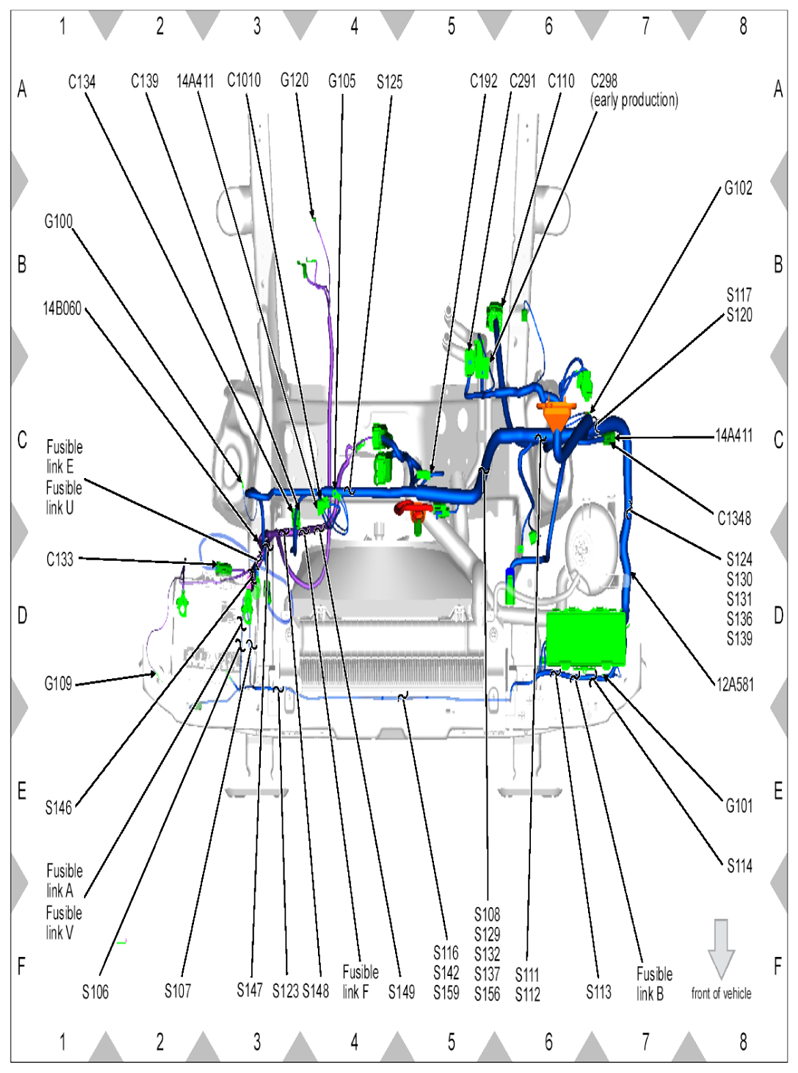

Fig 4: Vehicle Front Body Wiring Harness Connectors Location (2 Of 2)

G07854166

Courtesy of FORD MOTOR CO.

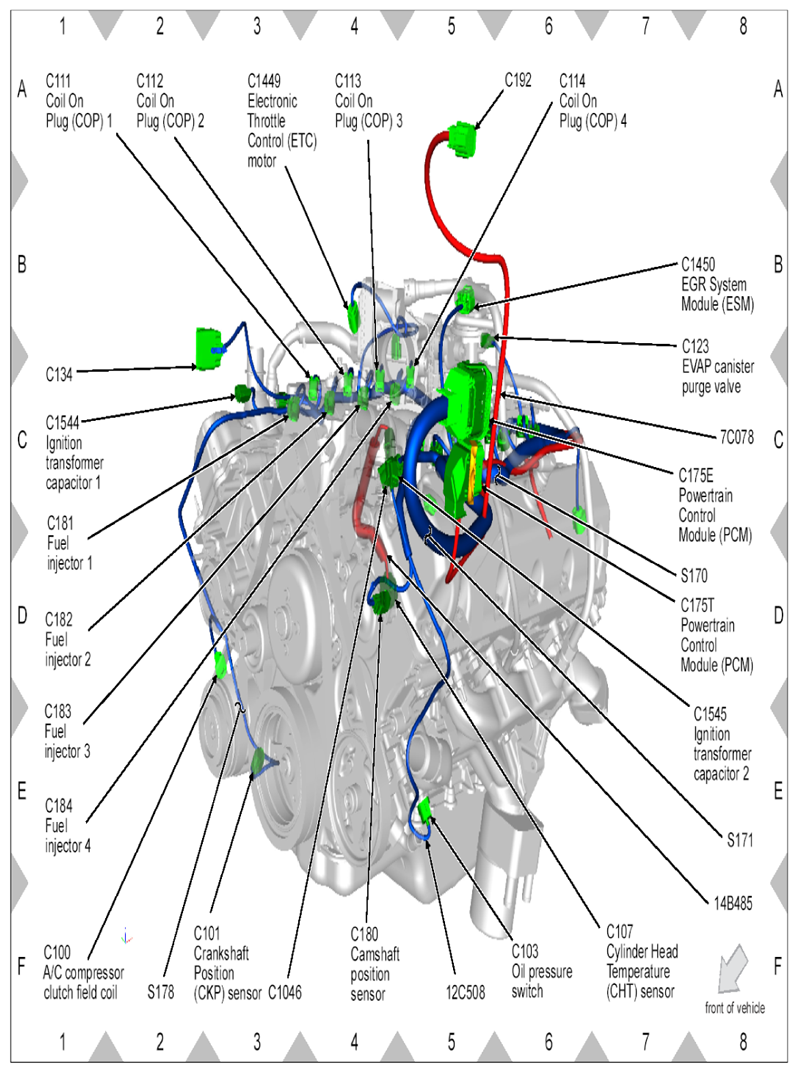

Fig 5: Engine Wiring Harness Connectors Location (1 Of 6)

G07854167

Courtesy of FORD MOTOR CO.

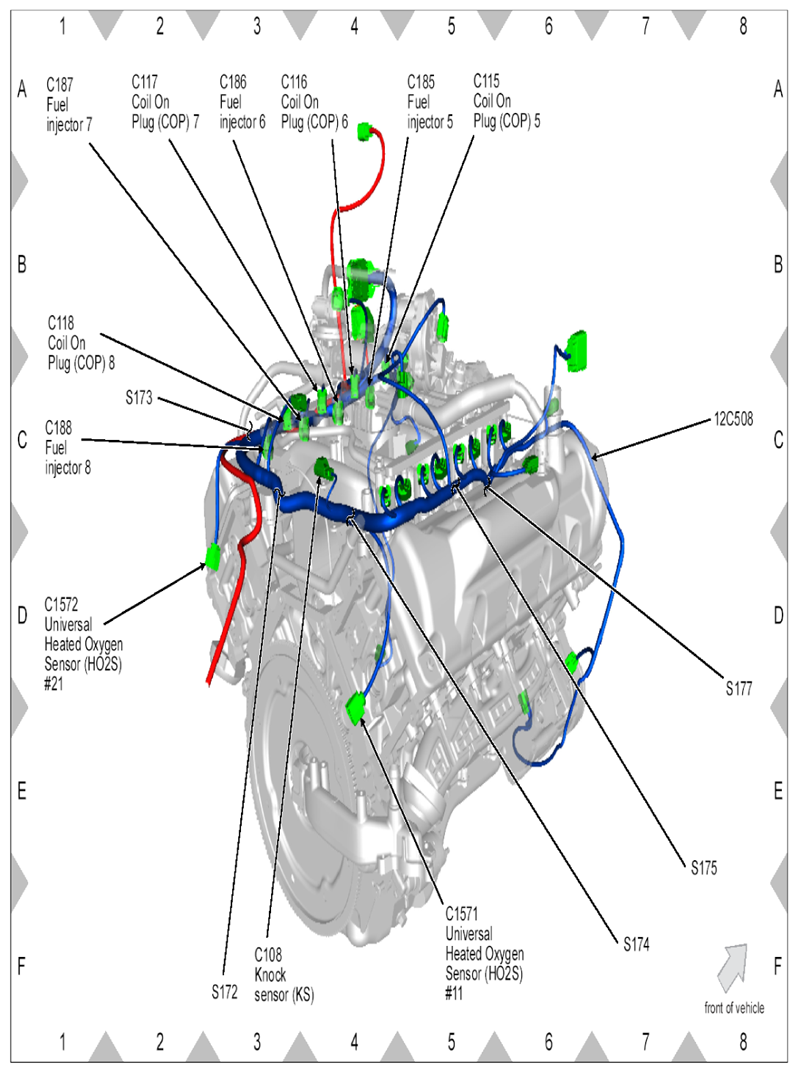

Fig 6: Engine Wiring Harness Connectors Location (2 Of 6)

G07854168

Courtesy of FORD MOTOR CO.

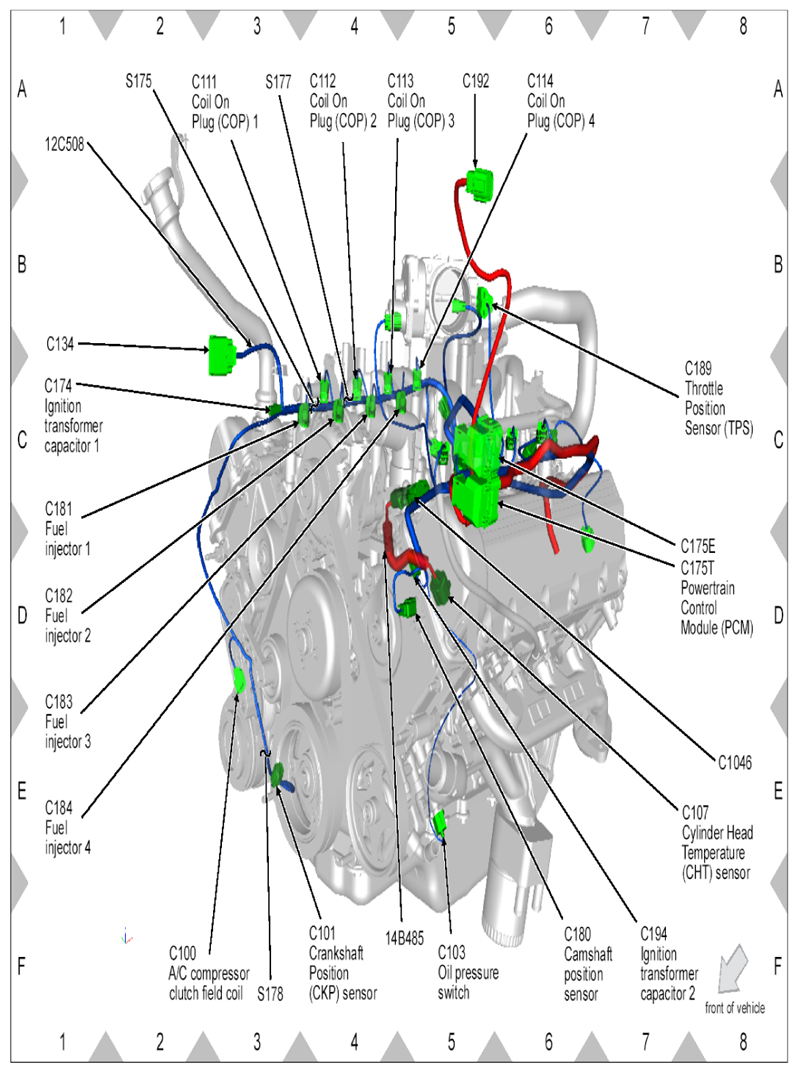

Fig 7: Engine Wiring Harness Connectors Location (3 Of 6)

G07854169

Courtesy of FORD MOTOR CO.

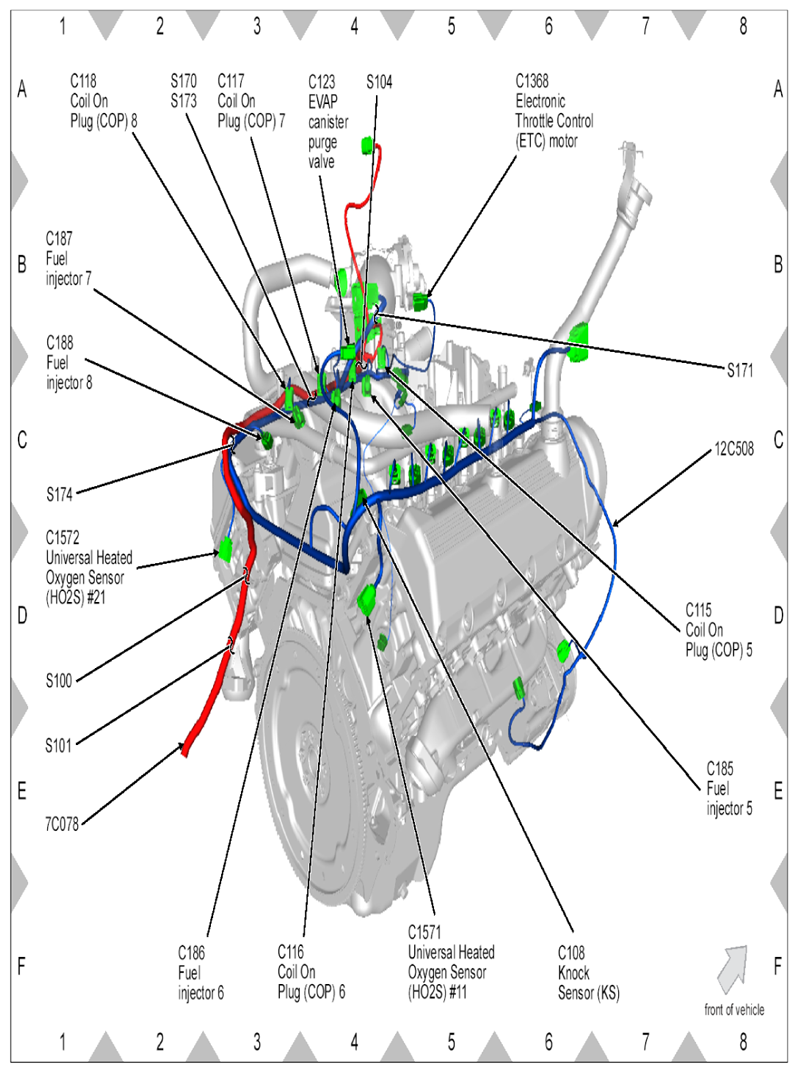

Fig 8: Engine Wiring Harness Connectors Location (4 Of 6)

G07854170

Courtesy of FORD MOTOR CO.

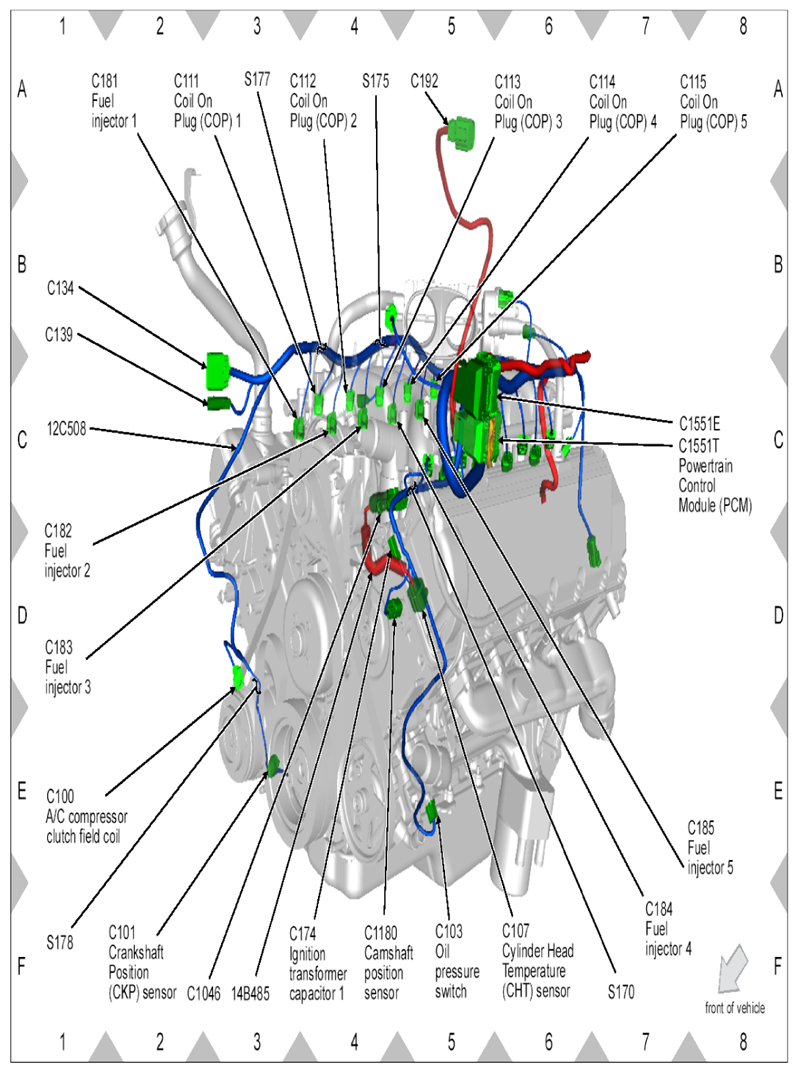

Fig 9: Engine Wiring Harness Connectors Location (5 Of 6)

G07854171

Courtesy of FORD MOTOR CO.

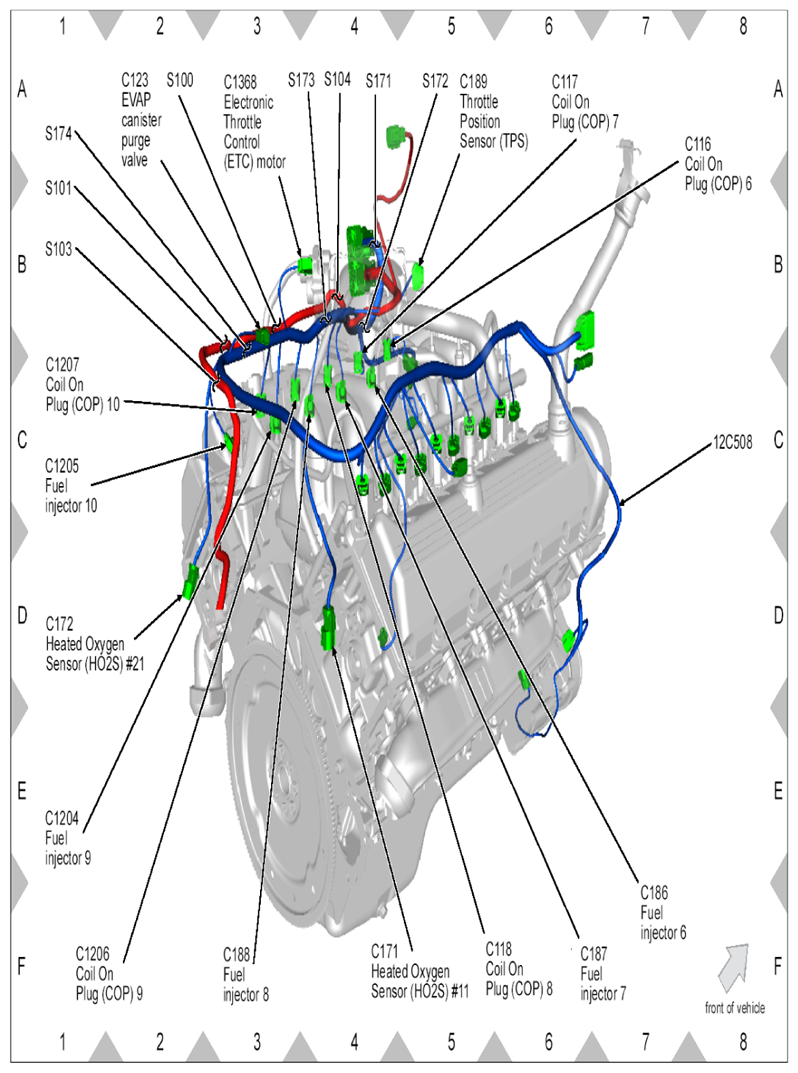

Fig 10: Engine Wiring Harness Connectors Location (6 Of 6)

G07854172

Courtesy of FORD MOTOR CO.

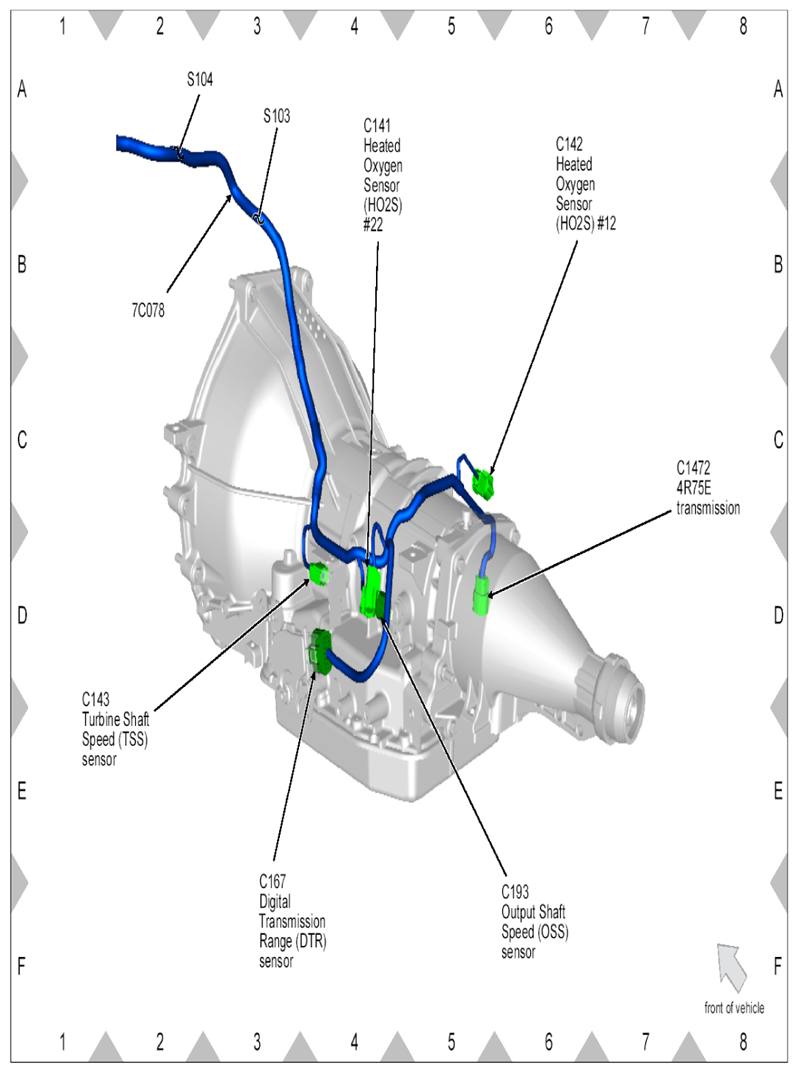

Fig 11: Transmission Wiring Harness Connectors Location (1 Of 2)

G07854173

Courtesy of FORD MOTOR CO.

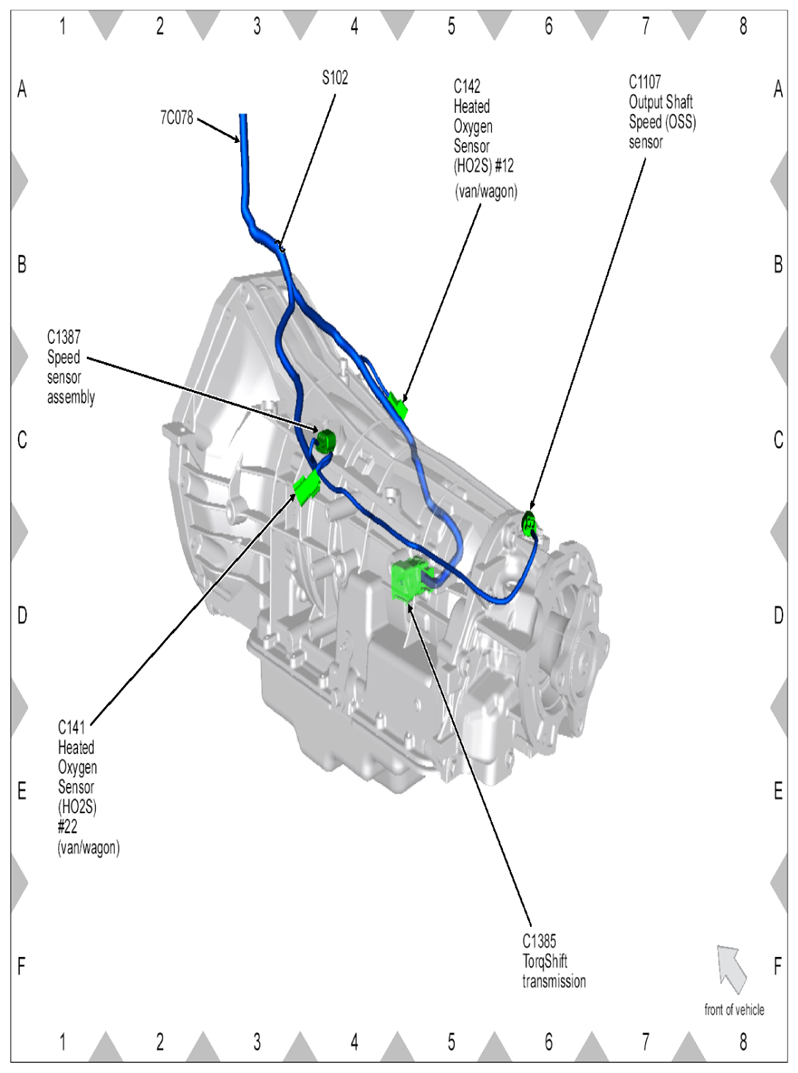

Fig 12: Transmission Wiring Harness Connectors Location (2 Of 2)

G07854174

Courtesy of FORD MOTOR CO.

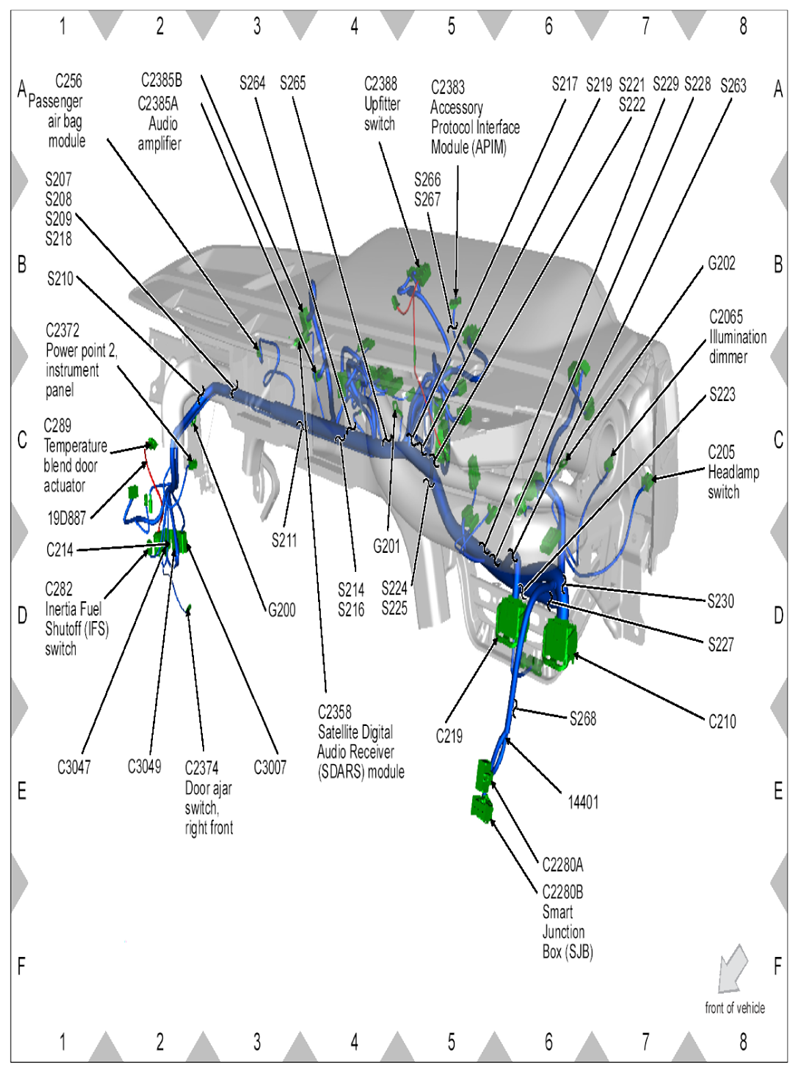

Fig 13: Dashboard Wiring Harness Connectors Location (1 Of 2)

G07854175

Courtesy of FORD MOTOR CO.

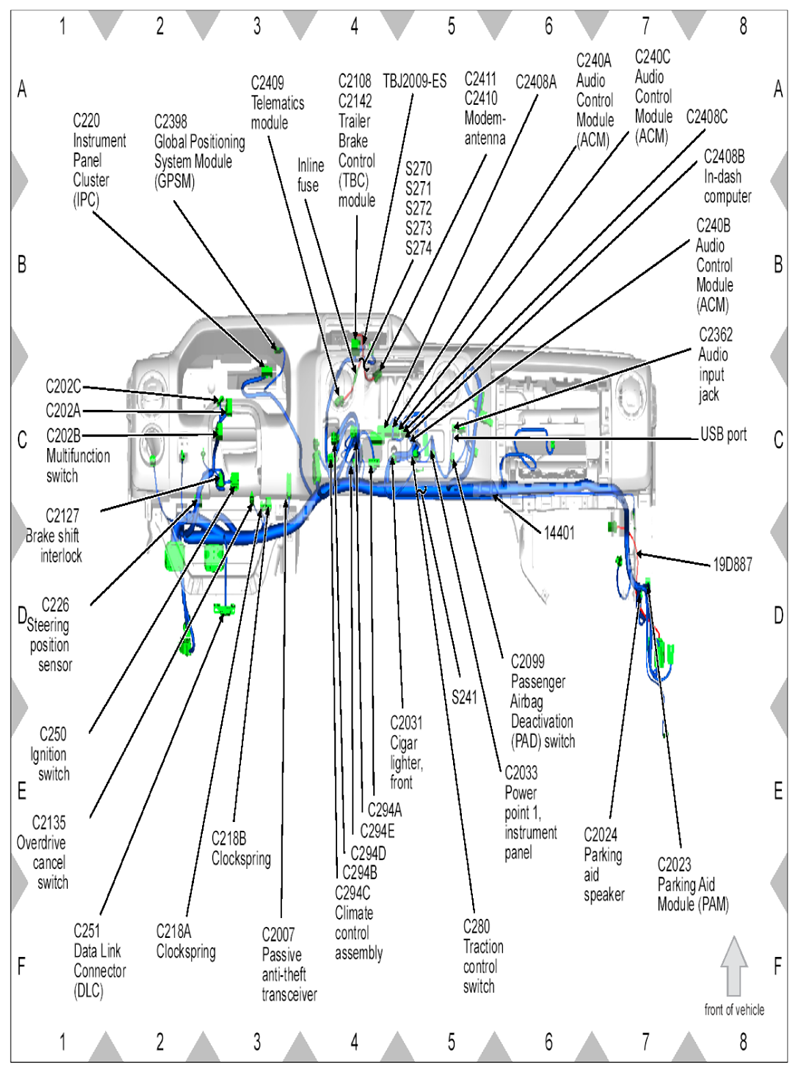

Fig 14: Dashboard Wiring Harness Connectors Location (2 Of 2)

G07854176

Courtesy of FORD MOTOR CO.

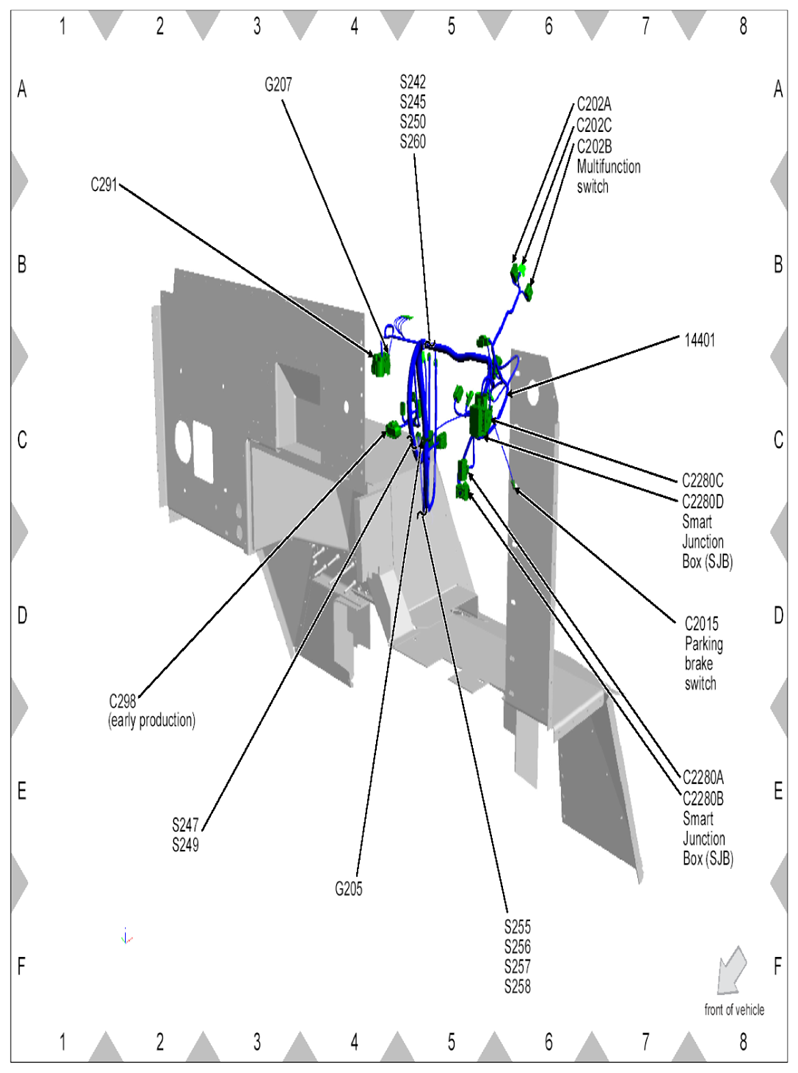

Fig 15: Center Console Wiring Harness Connectors Location

G07854177

Courtesy of FORD MOTOR CO.

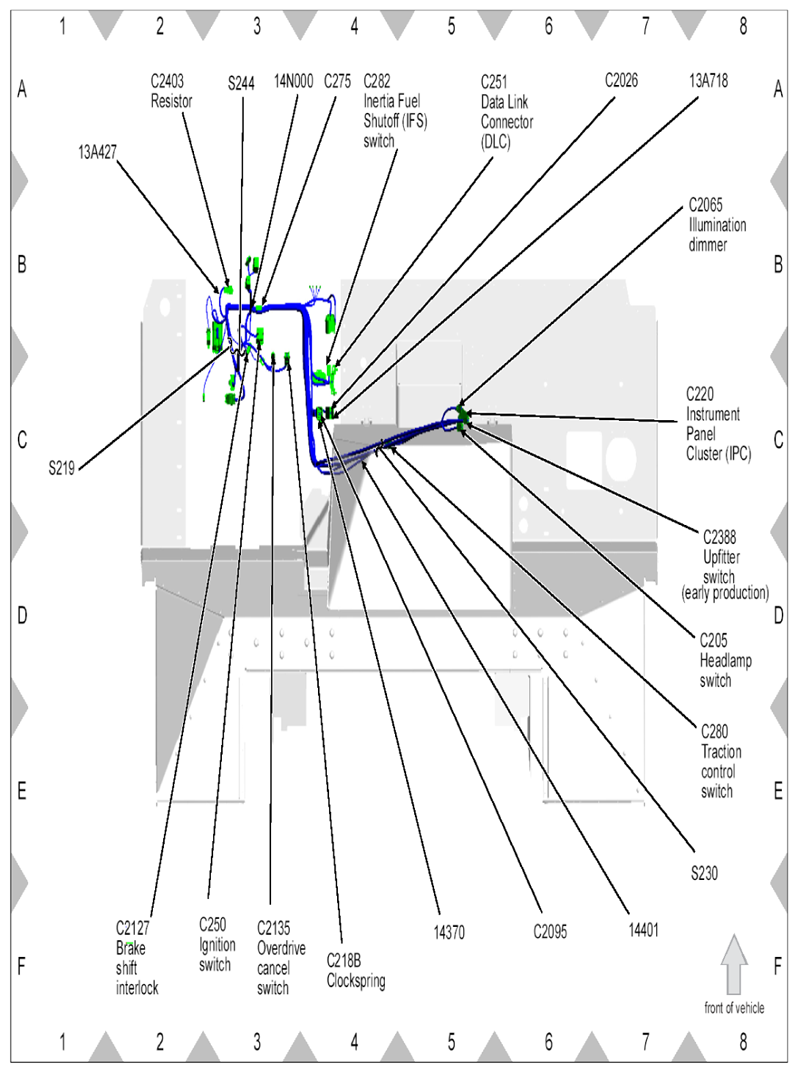

Fig 16: Instrument Panel Wiring Harness Connectors Location

G07854178

Courtesy of FORD MOTOR CO.

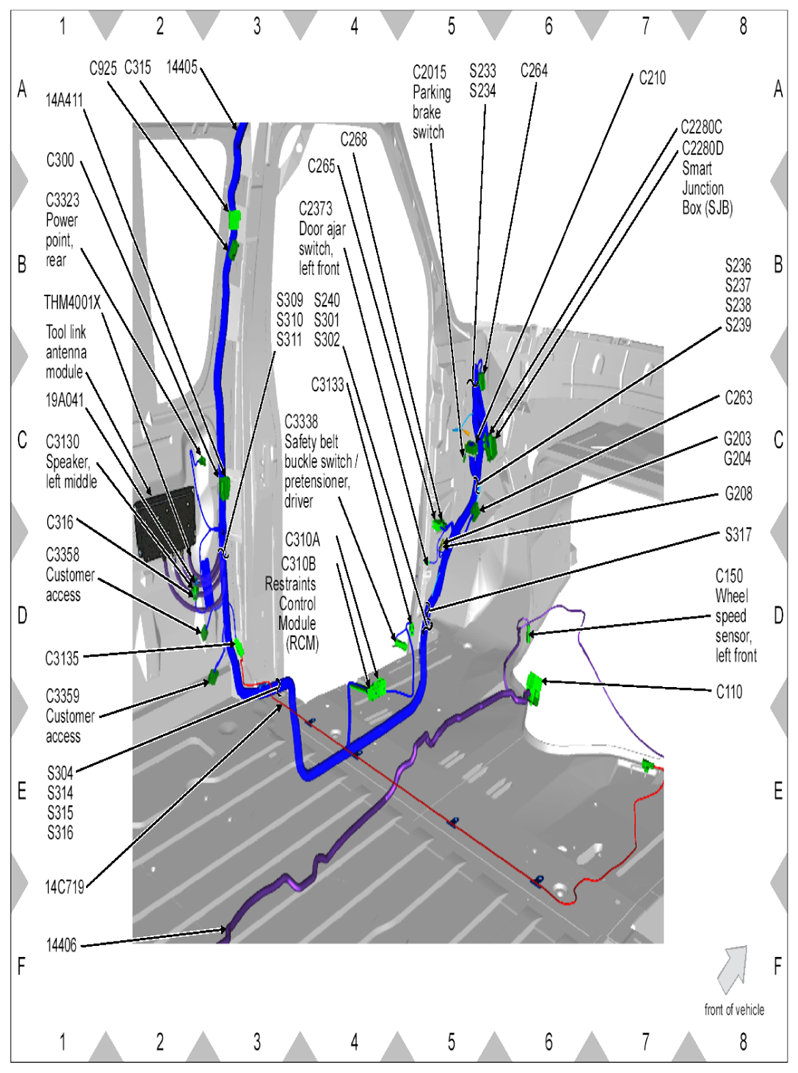

Fig 17: Body Panel Wiring Harness Connectors Location (1 Of 6)

G07854179

Courtesy of FORD MOTOR CO.

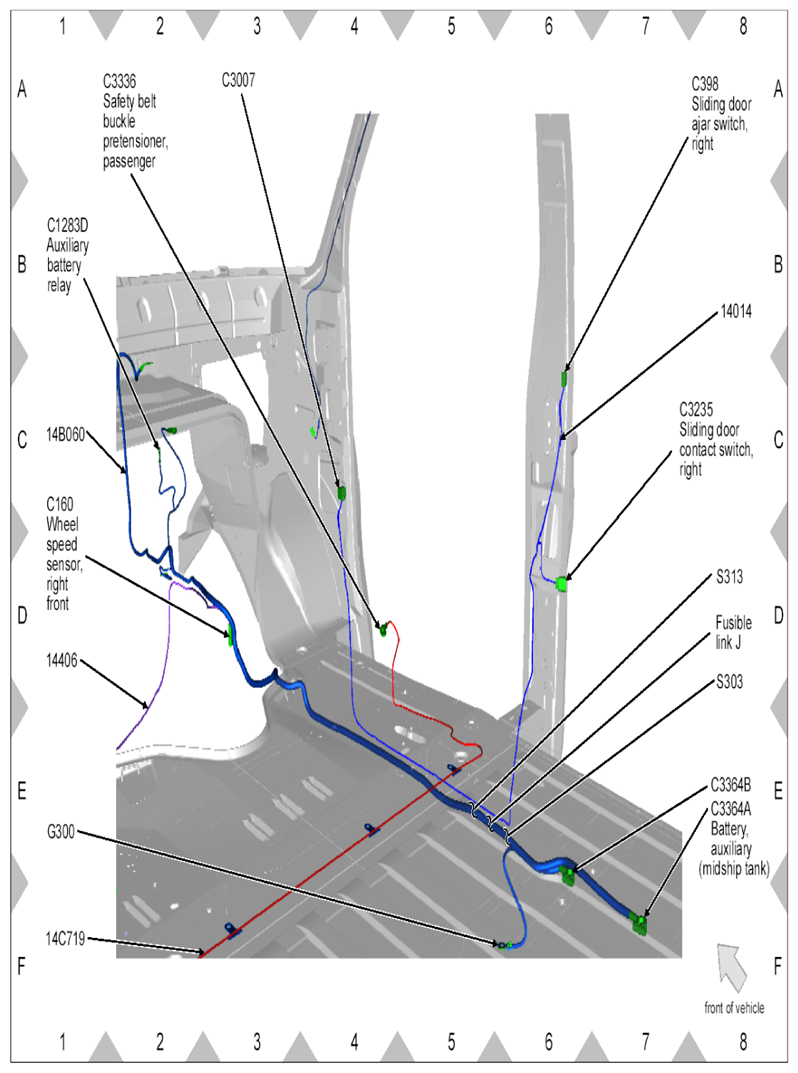

Fig 18: Body Panel Wiring Harness Connectors Location (2 Of 6)

G07854180

Courtesy of FORD MOTOR CO.

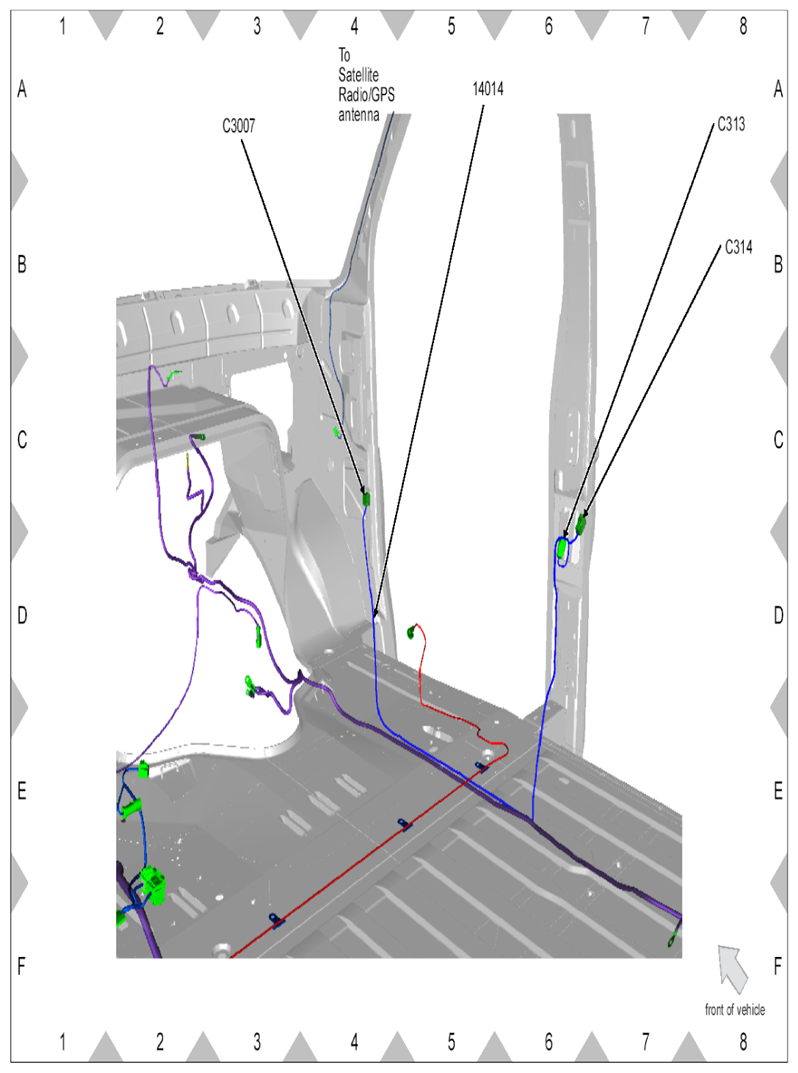

Fig 19: Body Panel Wiring Harness Connectors Location (3 Of 6)

G07854181

Courtesy of FORD MOTOR CO.

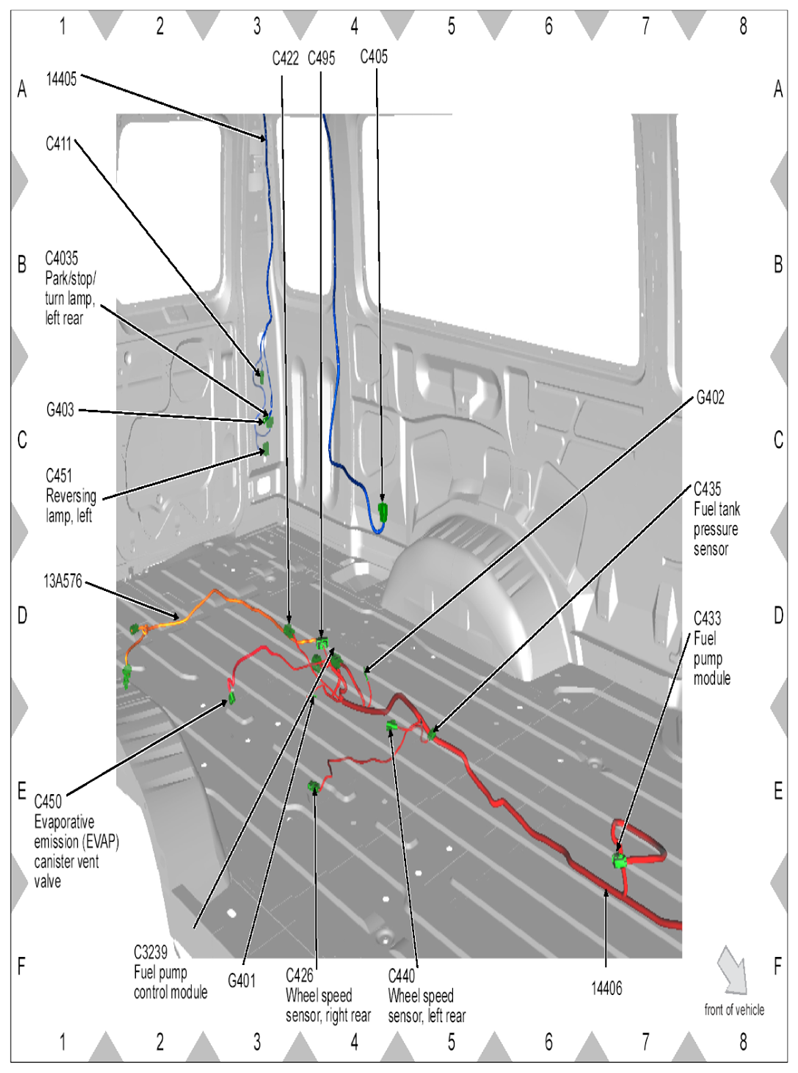

Fig 20: Body Panel Wiring Harness Connectors Location (4 Of 6)

G07854182

Courtesy of FORD MOTOR CO.

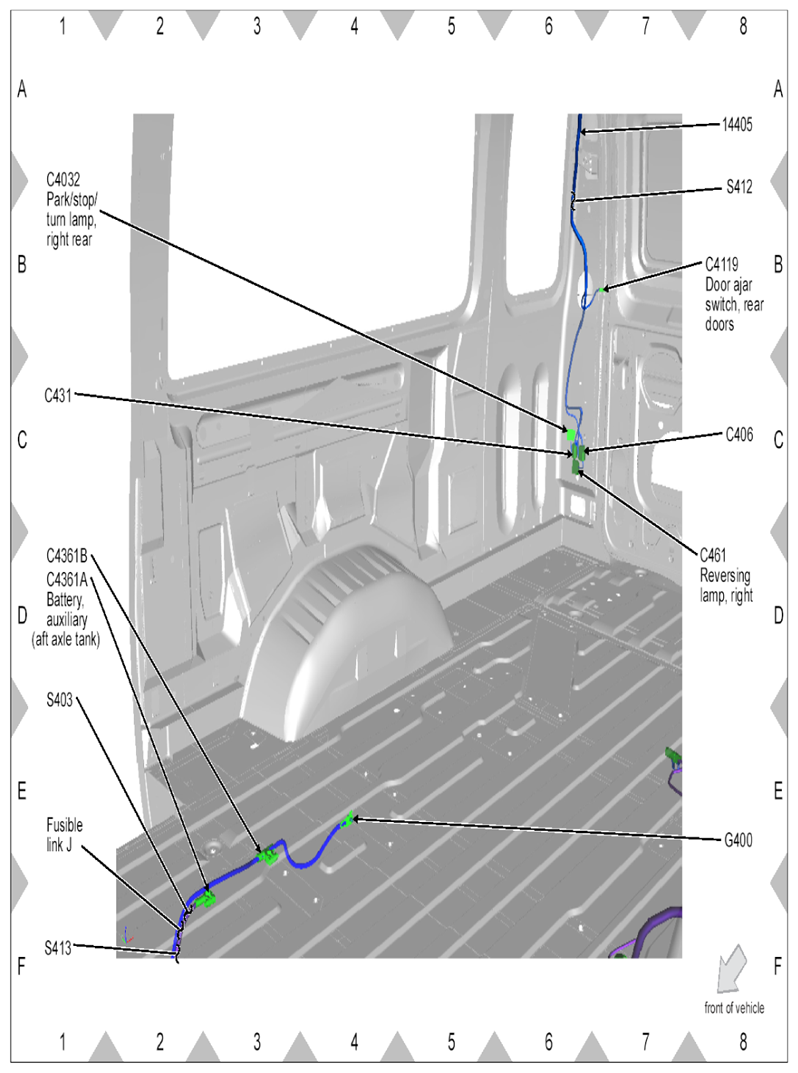

Fig 21: Body Panel Wiring Harness Connectors Location (5 Of 6)

G07854183

Courtesy of FORD MOTOR CO.

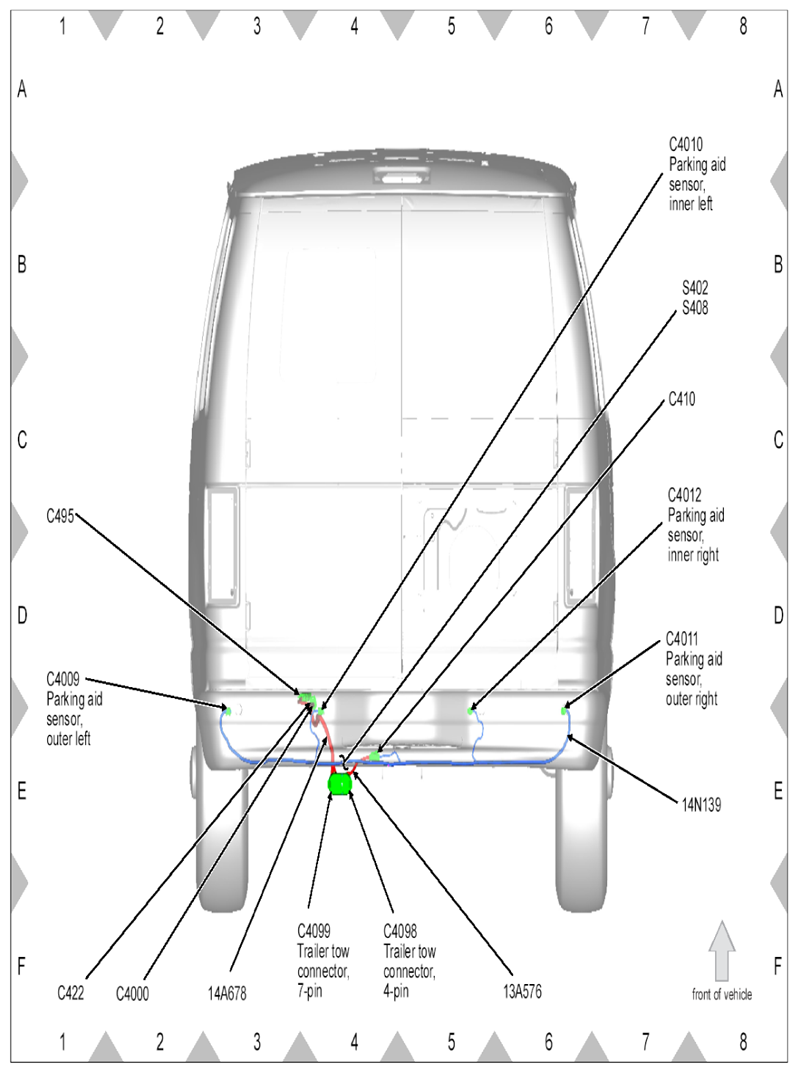

Fig 22: Body Panel Wiring Harness Connectors Location (6 Of 6)

G07854184

Courtesy of FORD MOTOR CO.

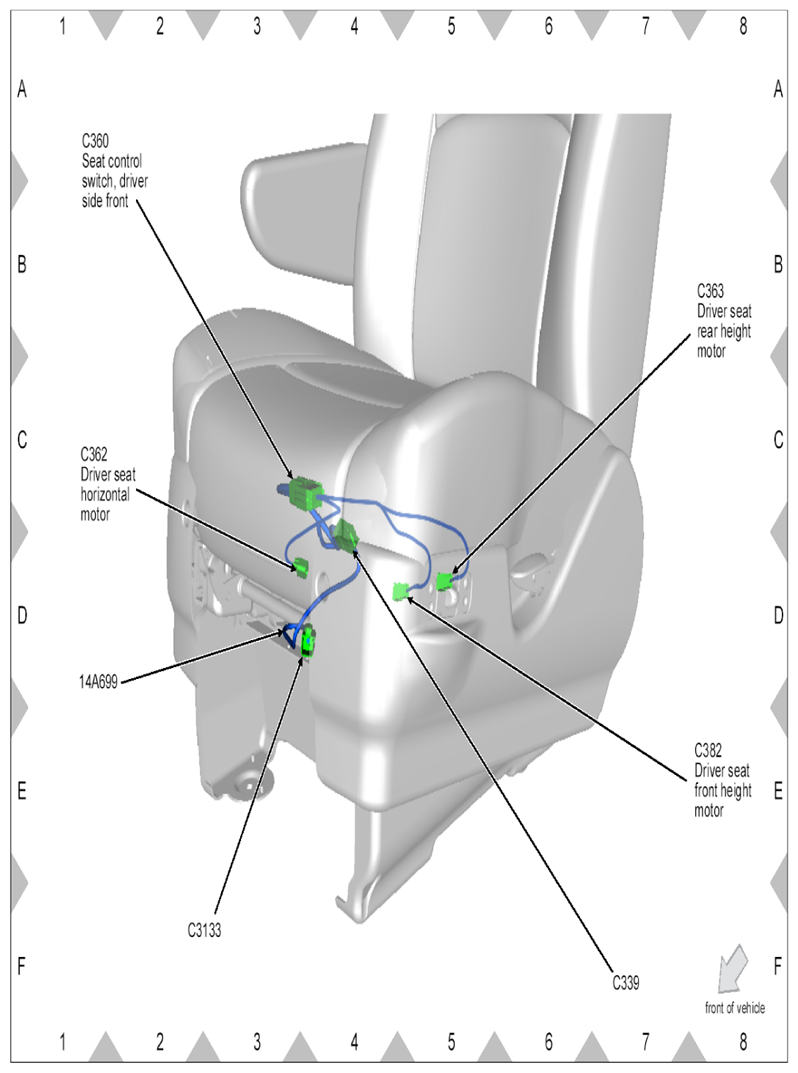

Fig 23: Seat Wiring Harness Connectors Location

G07854185

Courtesy of FORD MOTOR CO.

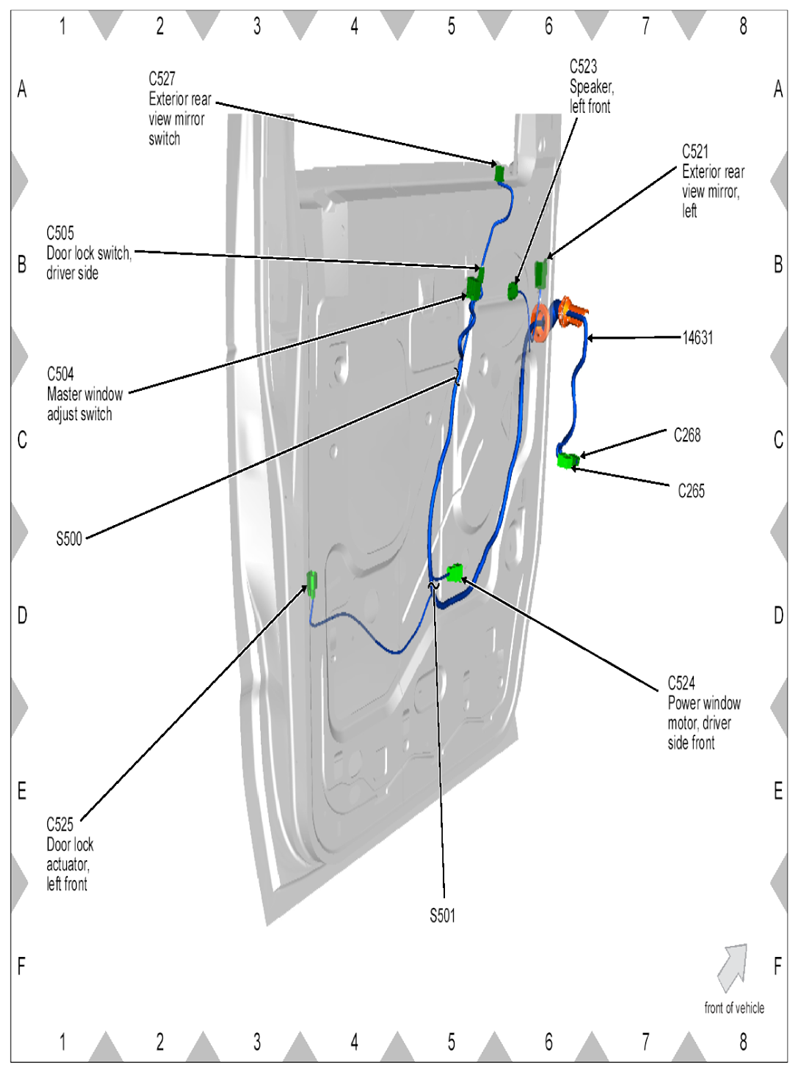

Fig 24: Door Panel Wiring Harness Connectors Location (1 Of 5)

G07854186

Courtesy of FORD MOTOR CO.

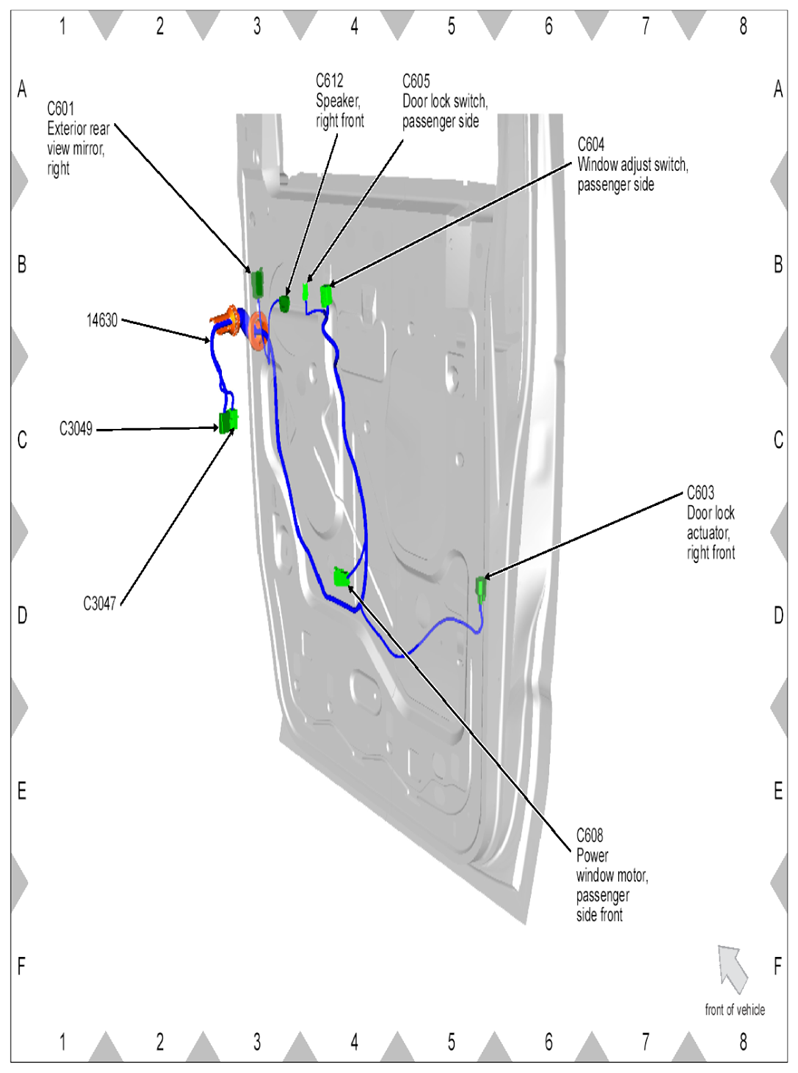

Fig 25: Door Panel Wiring Harness Connectors Location (2 Of 5)

G07854187

Courtesy of FORD MOTOR CO.

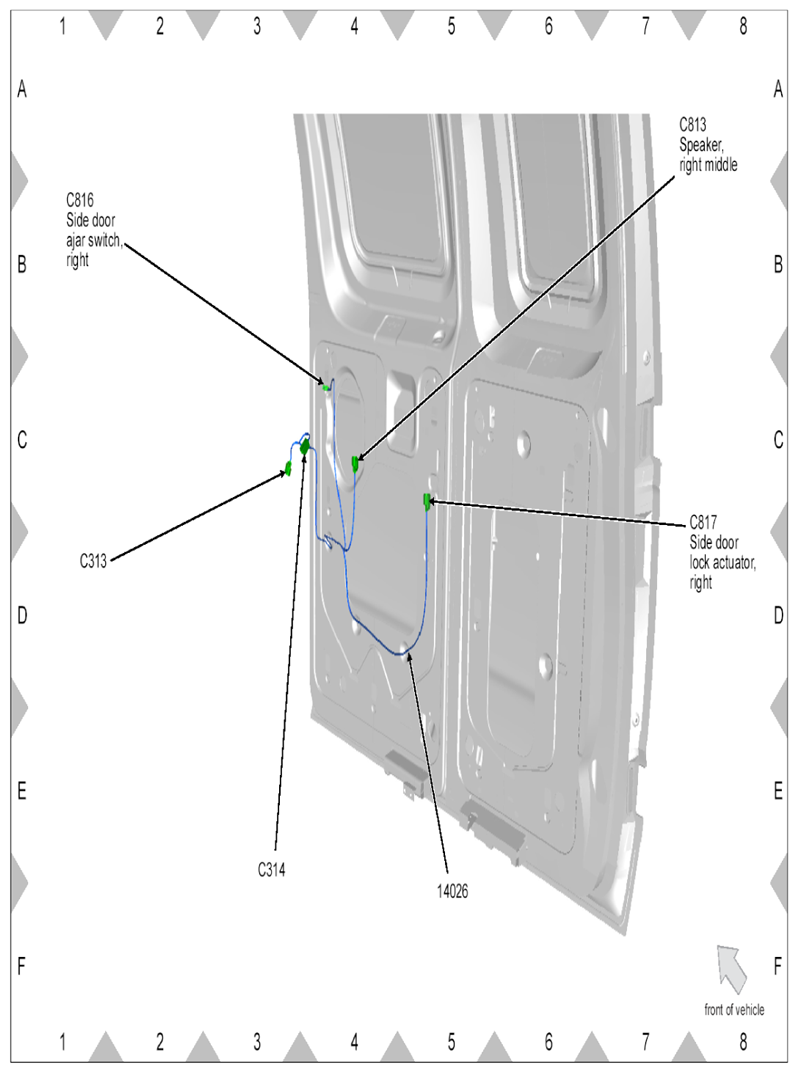

Fig 26: Door Panel Wiring Harness Connectors Location (3 Of 5)

G07854188

Courtesy of FORD MOTOR CO.

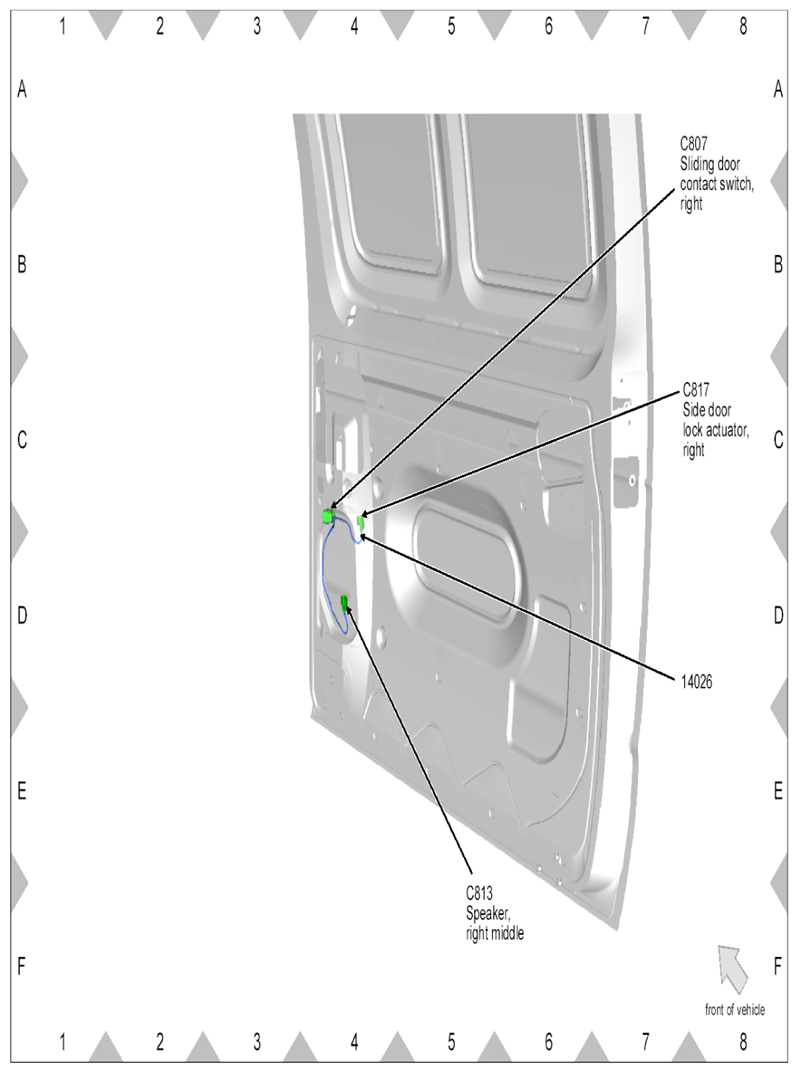

Fig 27: Door Panel Wiring Harness Connectors Location (4 Of 5)

G07854189

Courtesy of FORD MOTOR CO.

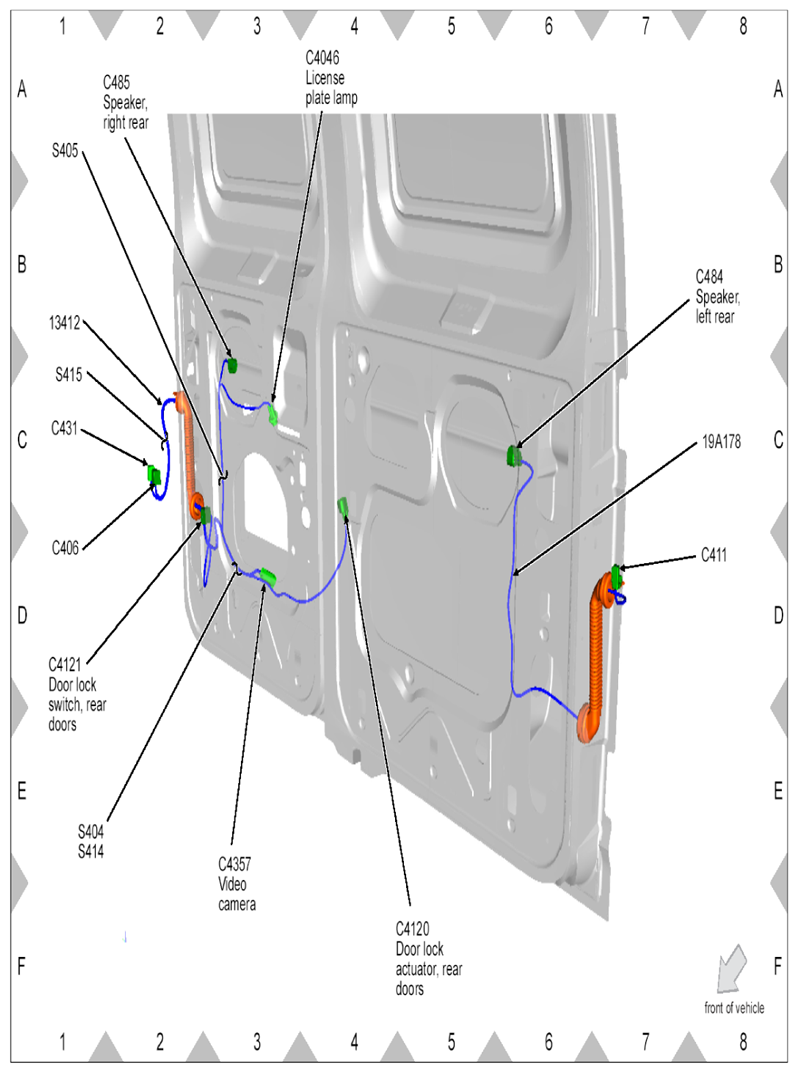

Fig 28: Door Panel Wiring Harness Connectors Location (5 Of 5)

G07854190

Courtesy of FORD MOTOR CO.

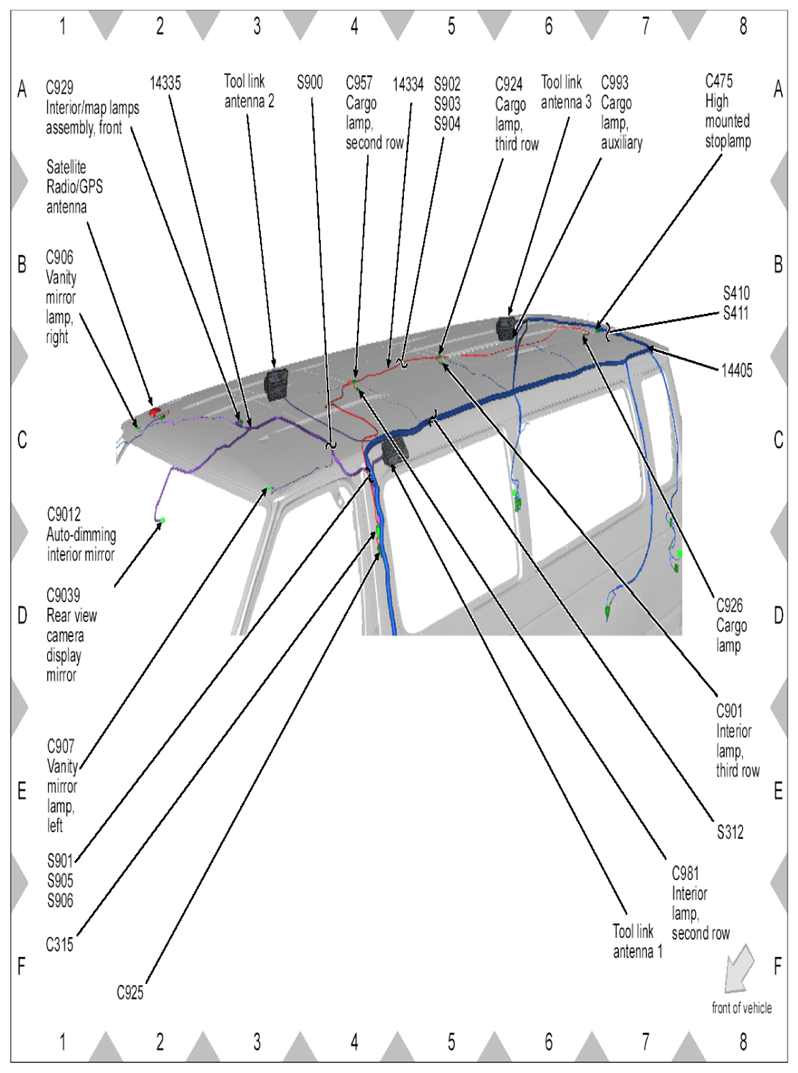

Fig 29: Roof Panel Wiring Harness Connectors Location

G07854191

Courtesy of FORD MOTOR CO.

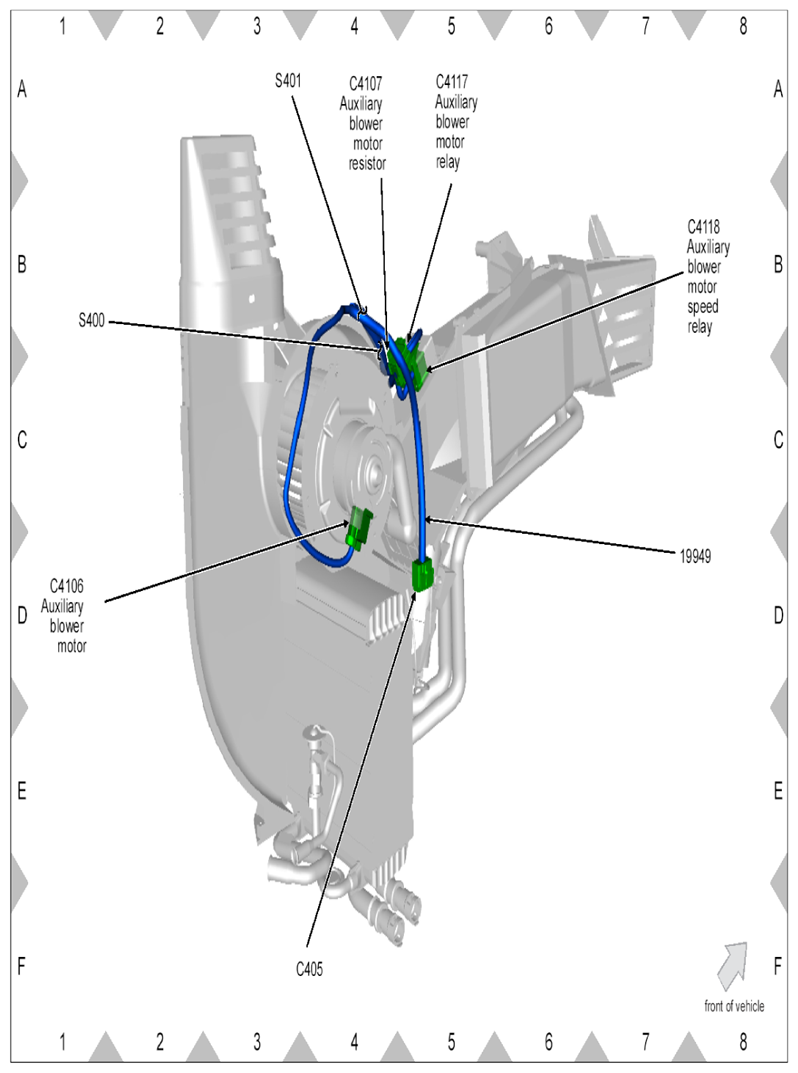

Fig 30: Auxiliary Blower Motor Wiring Harness Connectors Location

G07854192

Courtesy of FORD MOTOR CO.

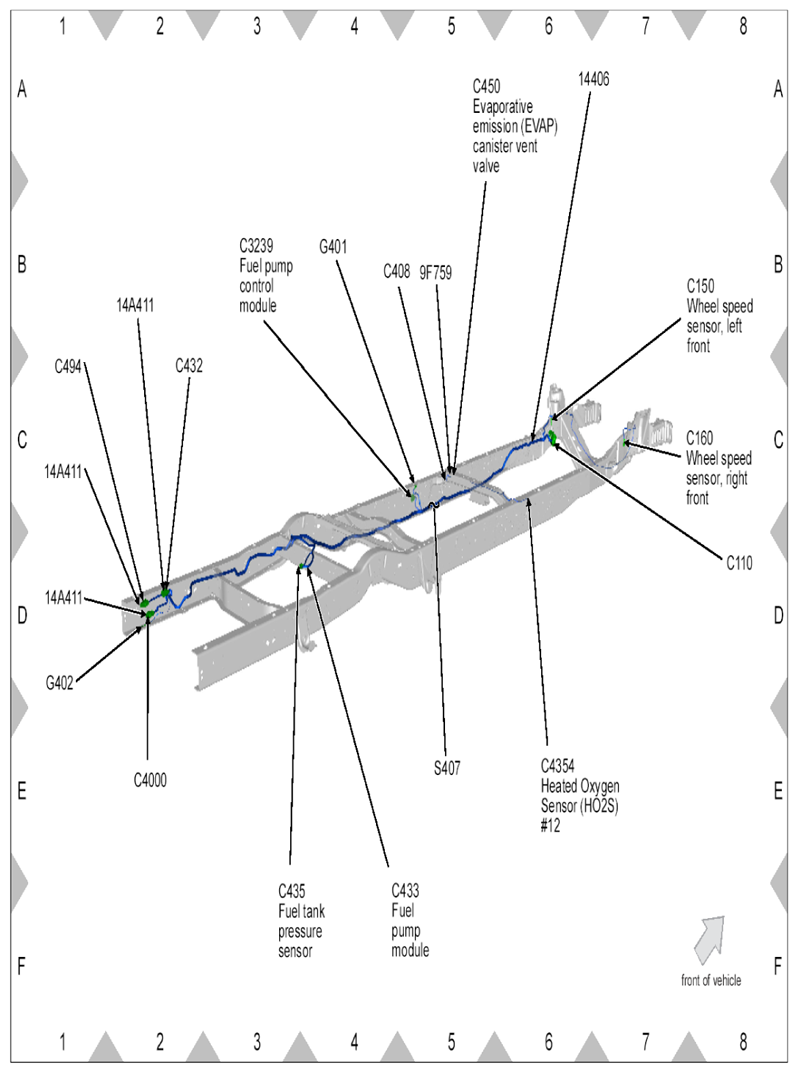

Fig 31: Frame Wiring Harness Connectors Location

G07854193

Courtesy of FORD MOTOR CO.

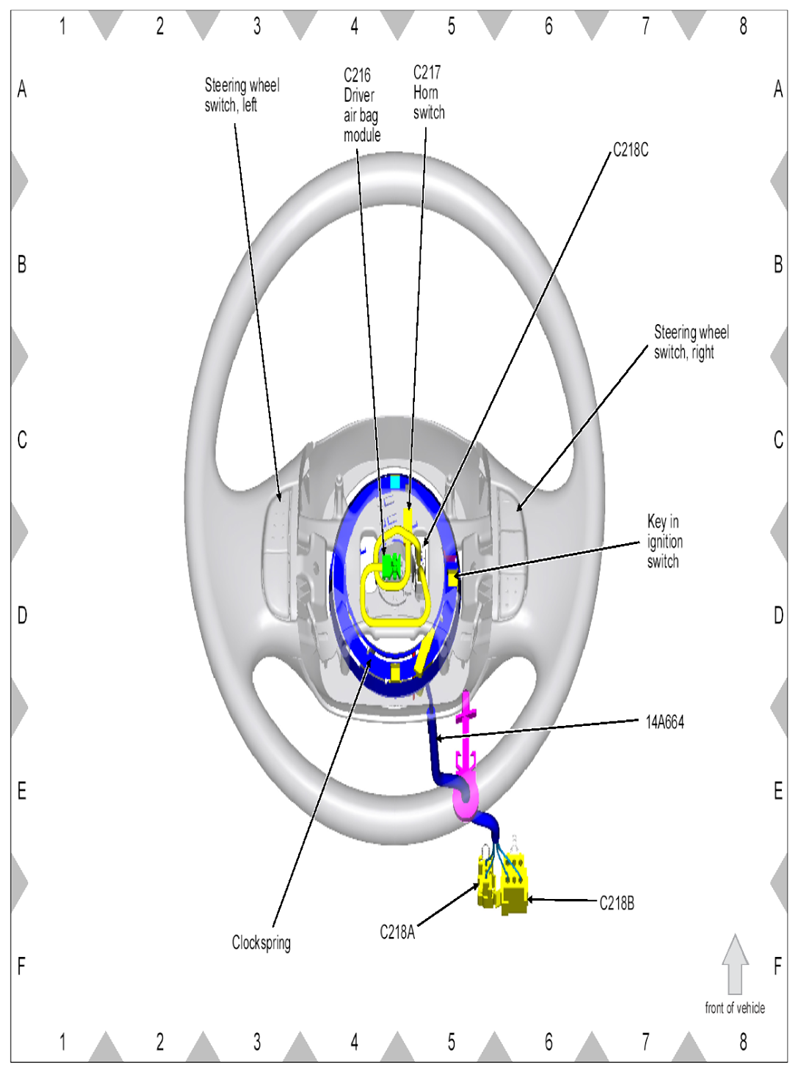

Fig 32: Steering Wiring Harness Connectors Location

G07854194

Courtesy of FORD MOTOR CO.
