Removal And Installation: Generator
NOTE:

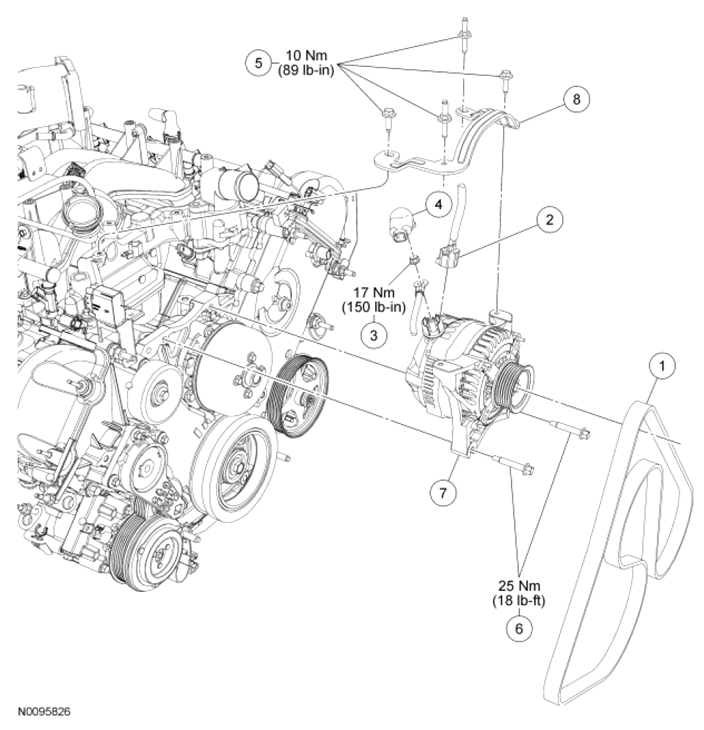

This procedure applies to the 4.6L, 5.4L and 6.8L engines. The 5.4L shown in the figure, other engines similar.
PARTS DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 8620 | Accessory drive belt |
| 2 | - | Generator electrical connector (part of 14305) |
| 3 | W711953 | Generator B+ terminal nut |
| 4 | - | Generator B+ terminal (part of 14305) |
| 5 | N807309 | Generator bracket bolts (4 required) |
| 6 | N811334 | Generator bolts (2 required) |
| 7 | 10300 | Generator |
| 8 | 10153 | Generator bracket |
