Side Impact Sensor: Notes
NOTE:

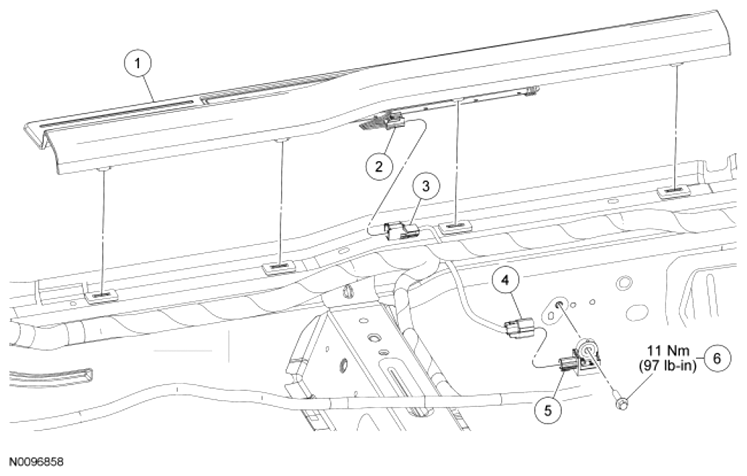

RH shown in illustration, LH similar.
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 13208 | Illuminated scuff plate trim panel (if equipped) |
| 2 | - | Electrical connector (part of 13208) (if equipped) |
| 3 | - | Electrical connector (part of 14A005) (if equipped) |
| 4 | - | Side impact sensor electrical connector (part of 14A005) |
| 5 | 14B345 | Side impact sensor |
| 6 | W505256 | Side impact sensor bolt |
