Side Air Bag Module: Notes

NOTE: Driver seat shown in illustration, passenger similar.

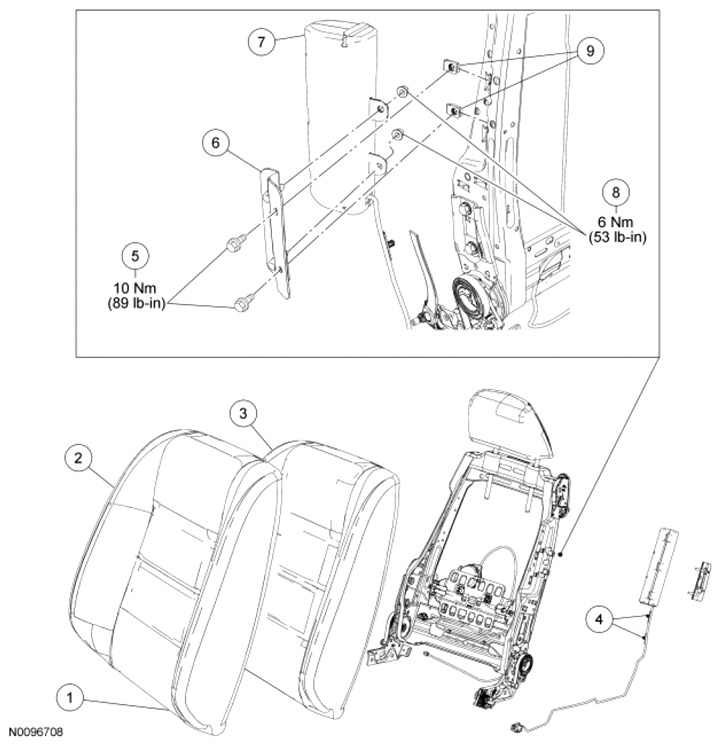

Fig 1: Exploded View Of Side Air Bag Module Components With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	-	Seat back cover J-clip and pin-type retainer (part of 64417)
2	64417	Seat back cover
3	64810	Seat back foam pad
4	-	Side air bag module electrical wiring pin-type retainers (part of 611D10)
5	N605892	Side air bag module bolts (2 required)
6	611D79	Side air bag module bracket
7	611D10	Side air bag module
8	-	Side air bag module-to-bracket nuts (part of 611D10) (2 required)
9	W520822	U-nuts
