Restraints Control Module (RCM): Removal

WARNING: If a vehicle has been in a crash, inspect the restraints control module (RCM) and the impact sensor (if equipped) mounting areas for deformation. If damaged, restore the mounting areas to the original production configuration. A new RCM and sensors must be installed whether or not the air bags have deployed. Failure to follow these instructions may result in serious personal injury or death in a crash.

NOTE: When installing a new Restraints Control Module (RCM), it is necessary to carry out Programmable Module Installation (PMI). System failure may occur if PMI is not performed. For additional information, refer to MODULE COMMUNICATIONS NETWORK - MODULE CONFIGURATION article.

NOTE: When installing a new Restraints Control Module (RCM) always make sure the correct RCM is being installed. If an incorrect RCM is installed, DTCs will result.

NOTE: The air bag warning indicator illuminates when the correct RCM fuse is removed and the ignition is ON.

NOTE: The Supplemental Restraint System (SRS) must be fully operational and free of faults before releasing the vehicle to the customer.

If installing a new RCM , carry out the steps necessary to prepare for Programmable Module Installation (PMI). For additional information, refer to MODULE COMMUNICATIONS NETWORK - MODULE CONFIGURATION article.
Depower the SRS . For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING in the General Procedures portion of this service information.
Remove the floor console. For additional information, refer to the Removal and Installation procedures in INSTRUMENT PANEL AND CONSOLE article.
Disconnect the large RCM connector.
1. Pinch the thumb tab and pivot the Connector Position Assurance (CPA) lever back.
2. Disconnect the RCM connector.

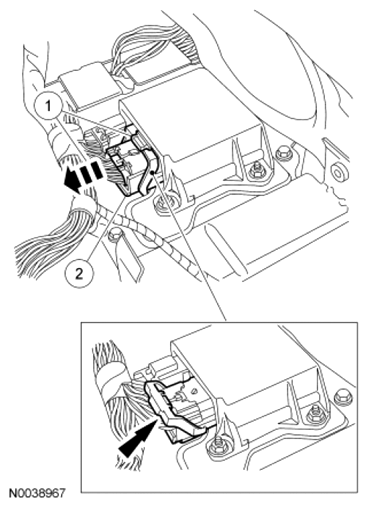

  Fig 1: Disconnecting Large RCM Connector
  Courtesy of FORD MOTOR CO.
Disconnect the small RCM electrical connector.
Remove the 3 nuts and RCM .
