Passenger Air Bag Module: Notes

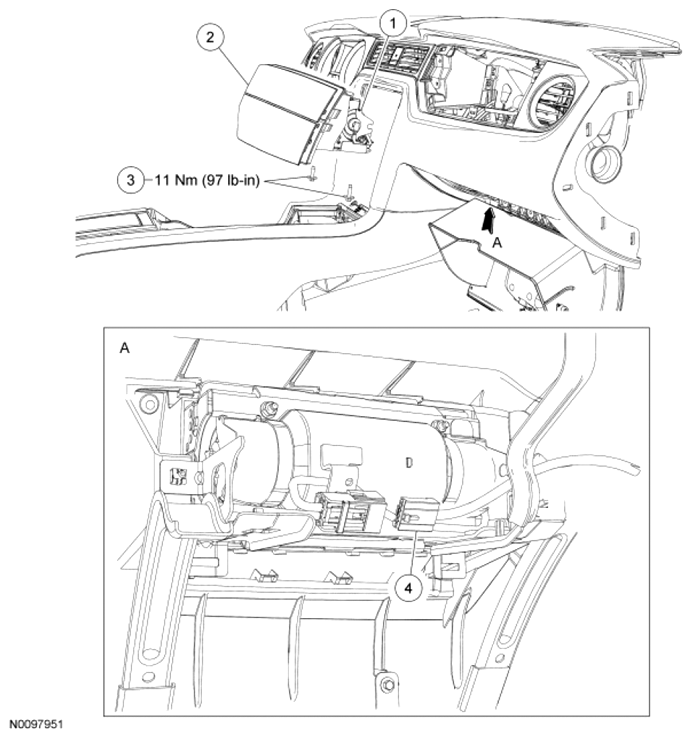

Fig 1: Passenger Air Bag Module Replacement Components With Torque Specifications
G07477505Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 044A74 Passenger air bag module assembly
2 04338 Air bag trim cover
3 W709783 Passenger air bag module bolts (2 required)
4 - Electrical connector (part of 14401)
