Occupant Classification Sensor: Removal

NOTE: To prevent system failure, it is necessary to carry out the Occupant Classification System (OCS) system reset when a front passenger seat cushion is disassembled, a new cover installed or an OCS system service kit is installed. A scan tool is used to carry out the OCS system reset.

NOTE: Do not install a new heater mat on a front passenger seat cushion. Install a new Occupant Classification System (OCS) system service kit. Failure to follow this instruction can cause incorrect OCS system operation. Refer to Occupant Classification System (OCS) Service Kit for the Occupant Classification Sensor Removal and Installation procedure.

NOTE: An Occupant Classification System (OCS) system service kit has the electrical connector glued to the Occupant Classification System Module (OCSM). It cannot and should not be disconnected or altered.

NOTE: The air bag warning indicator illuminates when the correct Restraints Control Module (RCM) fuse is removed and the ignition is ON.

NOTE: The Supplemental Restraint System (SRS) must be fully operational and free of faults before releasing the vehicle to the customer.

Remove the front passenger seat. For additional information, refer to SEAT SYSTEM article.
Remove the seat backrest. For additional information, refer to SEAT SYSTEM article.
Remove the seat track. For additional information, refer to SEAT SYSTEM article.
Release the tab and remove the pressure sensor from the bracket.
- For a production OCS system , disconnect the pressure sensor electrical connector from the seat wiring harness.

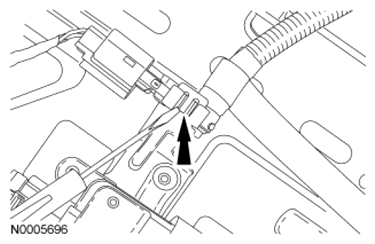

  Fig 1: Releasing Pressure Sensor Tabs
  Courtesy of FORD MOTOR CO.

NOTE: To prevent system failure, do not oversize the seat cushion frame holes used to rivet the Occupant Classification System Module (OCSM) in place.

Using a 5 mm (0.196 in) drill, remove the rivets and remove the OCSM from the bracket.
- For a production OCS system , disconnect the OCSM electrical connector from the seat wiring harness.

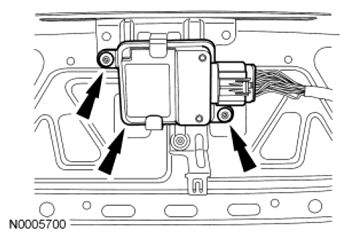

  Fig 2: Locating OCSM Electrical Connector And Bolts
  Courtesy of FORD MOTOR CO.

NOTE: Note position of hose routing for installation.

Remove the OCS system from the seat cushion frame.
- For a production OCS system , remove the 2 pin-type retainers and bladder from the seat cushion frame.
- Feed the hose, pressure sensor, wire harness, electrical connector and OCSM out of the opening in the seat cushion frame.

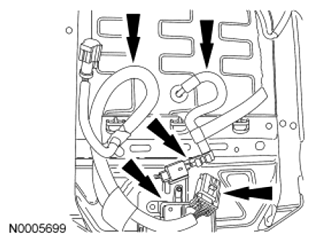

  Fig 3: Locating OCSM Hose, Pressure Sensor, Wire Harness And Electrical Connector
