Vehicle Identification Number (VIN) Locator

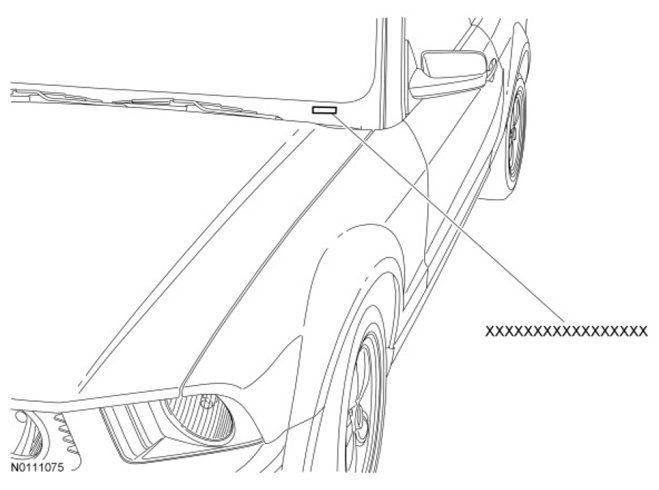

Fig 1: Identifying Vehicle Identification Number (VIN) Locator
G07486639Courtesy of FORD MOTOR CO.

The Vehicle Identification Number (VIN) is a 17-digit alphanumeric code. The VIN  is stamped on a metal tab riveted to the instrument panel, top upper left of the dash. The VIN  number is also found on the Vehicle Certification (VC) label.

If the VIN  plate requires replacement, authorized dealers must contact their respective regional office.

Fig 2: Identifying Vehicle Identification Number Sequence Code
G06937865Courtesy of FORD MOTOR CO.
PARTS DESCRIPTION CHART

Item Description
1 World Manufacturer Identifier (WMI)
2 Restraint-type code
3 Line and series
4 Engine code
5 Computer-generated check digit
6 Model year code
7 Assembly plant code
8 Production sequence number
