Inner Tie Rod: Material
WARNING: This page is about a different car, the 2010 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS CHART
| Item | Specification |
|---|---|
| Premium Long-Life Grease XG-1-C or XG-1-K (US); CXG-1-C (Canada) |
ESA-M1C75-B |

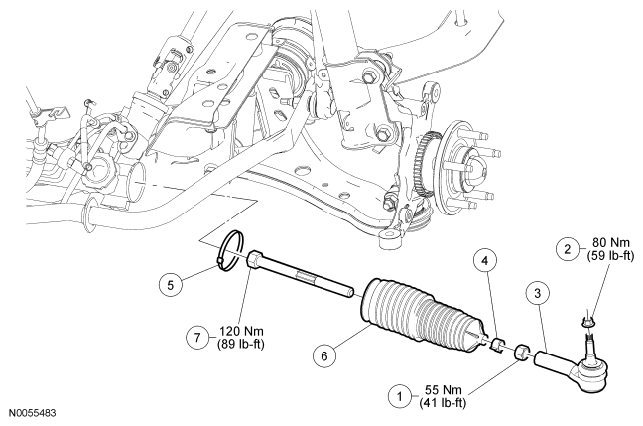

ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 14094 | Tie-rod jam nut (part of 3280) |
| 2 | W705606 | Tie-rod end nut |
| 3 | 3289 | Tie-rod end |
| 4 | 3C650A | Outer bellows boot clamp |
| 5 | 3K745 | Inner bellows boot clamp |
| 6 | 3K661 | Steering gear bellows boot |
| 7 | 3280 | Inner tie rod |
