Generator - 4.6L (3V): Notes
WARNING: This page is about a different car, the 2010 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

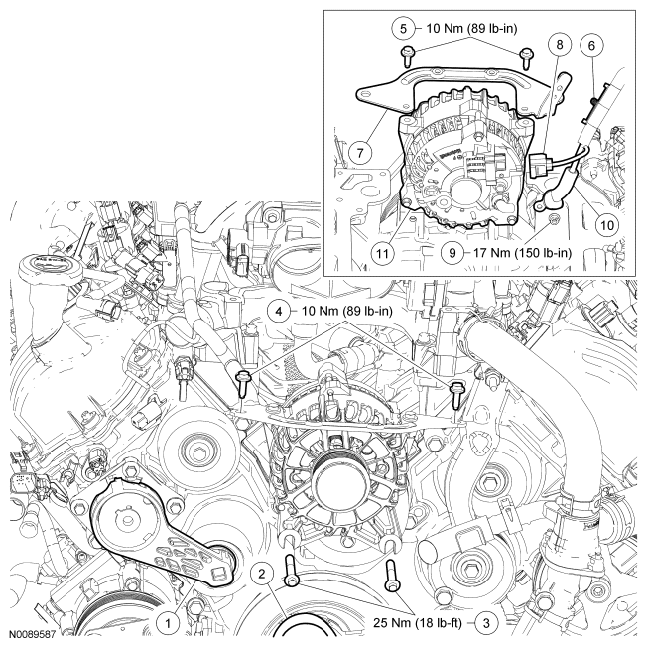

ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 6B209 | Front End Accessory Drive (FEAD) belt tensioner |
| 2 | 8620 | FEAD belt |
| 3 | - | Generator bolts (2 required) |
| 4 | N807309-S | Generator bracket bolts (outer) (2 required) |
| 5 | N807309-S | Generator bracket bolts (inner) (2 required) |
| 6 | - | Generator harness locator (part of 14305) |
| 7 | 10153 | Generator bracket |
| 8 | - | Generator electrical connector (part of 14305) |
| 9 | W711953 | Generator B+ terminal nut |
| 10 | - | Generator B+ terminal (part of 14305) |
| 11 | 10300 | Generator |
