Mode 6 - 2011 Ford - Except Diesel
>>
Rear Ho2S Heater Monitor
Rear Ho2S Heater Monitor

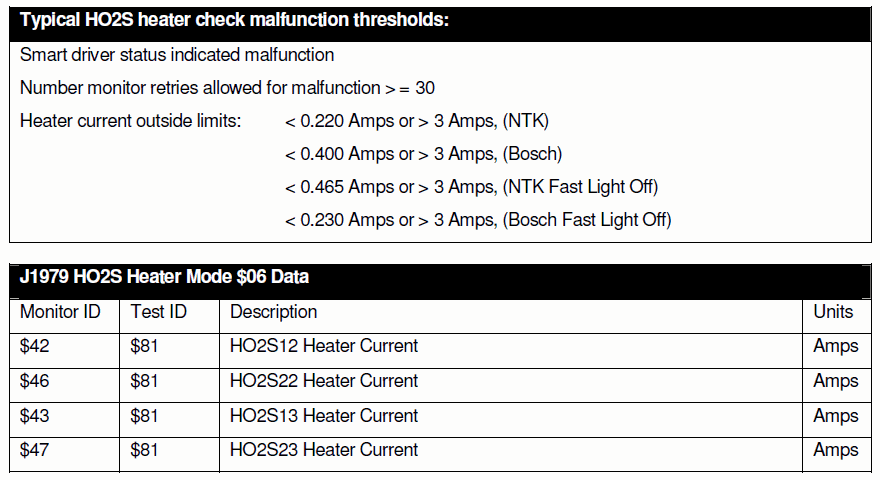

Fig 1: Mode $06 Data For Rear HO2S Heater Monitor
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
