Hood Latch: Notes

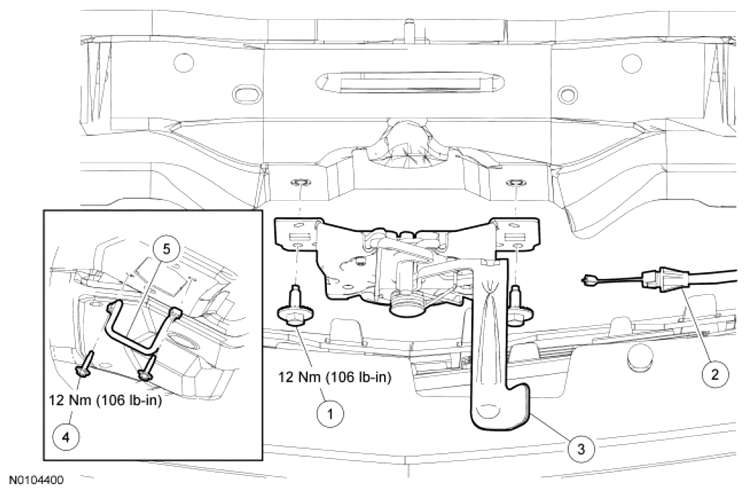

Fig 1: Hood Latch Replacement Components With Torque Specifications
G07477327Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 W712050 Hood latch bolts (2 required)
2 16916 Hood latch release cable
3 16700 Hood latch
4 W505422 Hood latch striker bolts (2 required)
5 16K689 Hood latch striker
