Latch Lubrication: Material

MATERIAL SPECIFICATIONS

Item	Specification
Multi-Purpose Grease XG-4 and/or XL-5, or equivalents	ESB-M1C93-B

Open the door.
Using a screwdriver, fully close the latch (2 clicks).

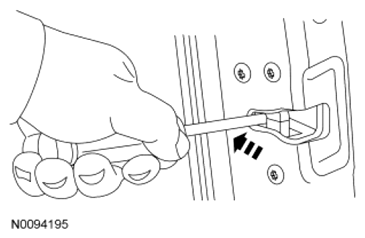

Fig 1: Closing Latch Using Screwdriver
Courtesy of FORD MOTOR CO.
Spray the multi-purpose grease into the opening on the door latch for approximately 5 seconds.

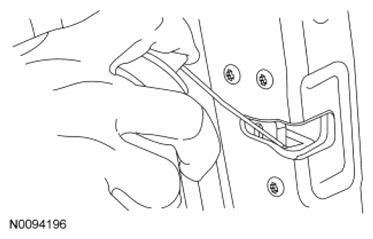

Fig 2: Spraying Multi-Purpose Grease Into Opening On Door Latch
Courtesy of FORD MOTOR CO.
Open the latch using either the interior or exterior door handle.
Open and close the door several times to circulate the lubricant inside the latch.
Wipe off any excess grease.
