Front Display Interface Module Connector - C2123

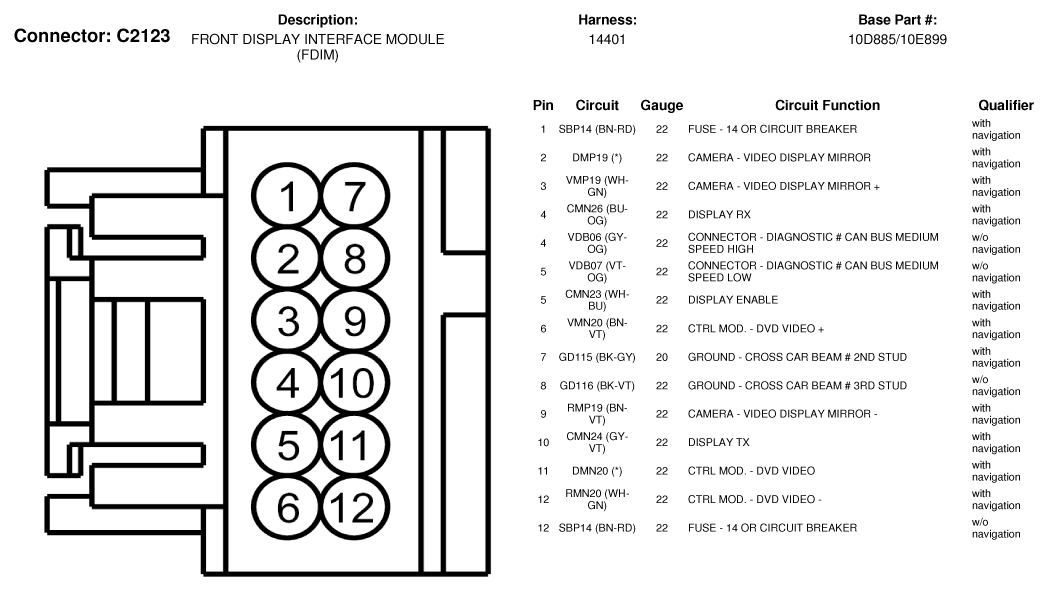

Fig 1: Front Display Interface Module Connector End View (C2123)

G07336730

Courtesy of FORD MOTOR CO.
