Module Communication Network

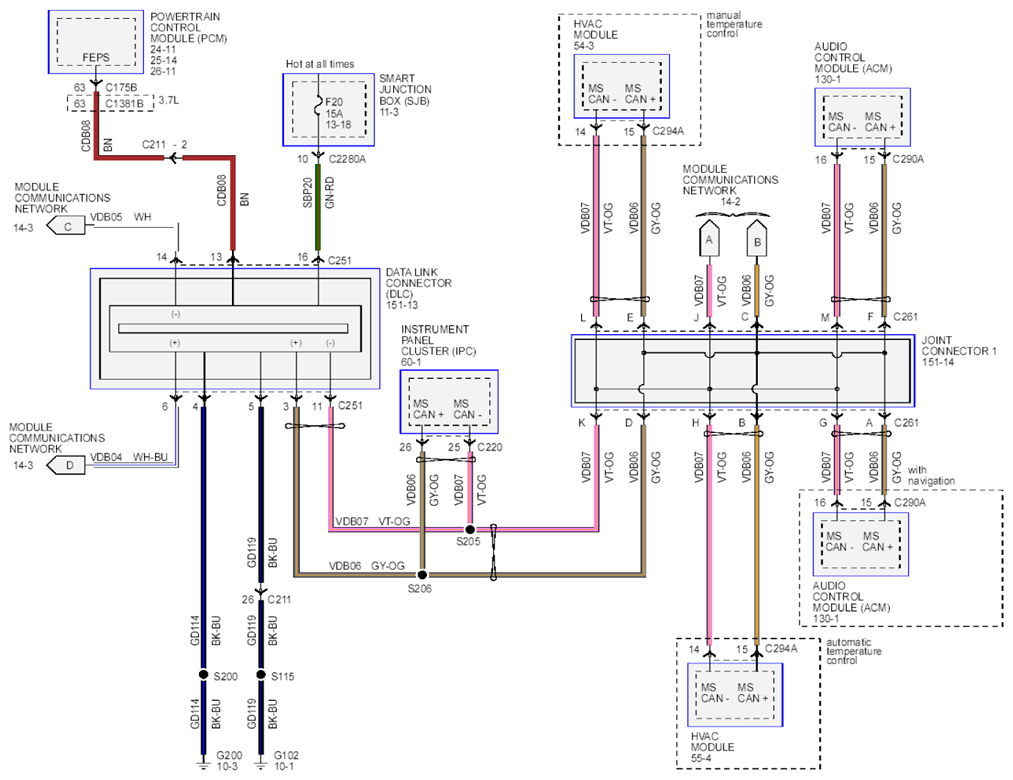

Fig 1: Module Communication Network Circuit Diagram (1 Of 3)
G07881121Courtesy of FORD MOTOR CO.

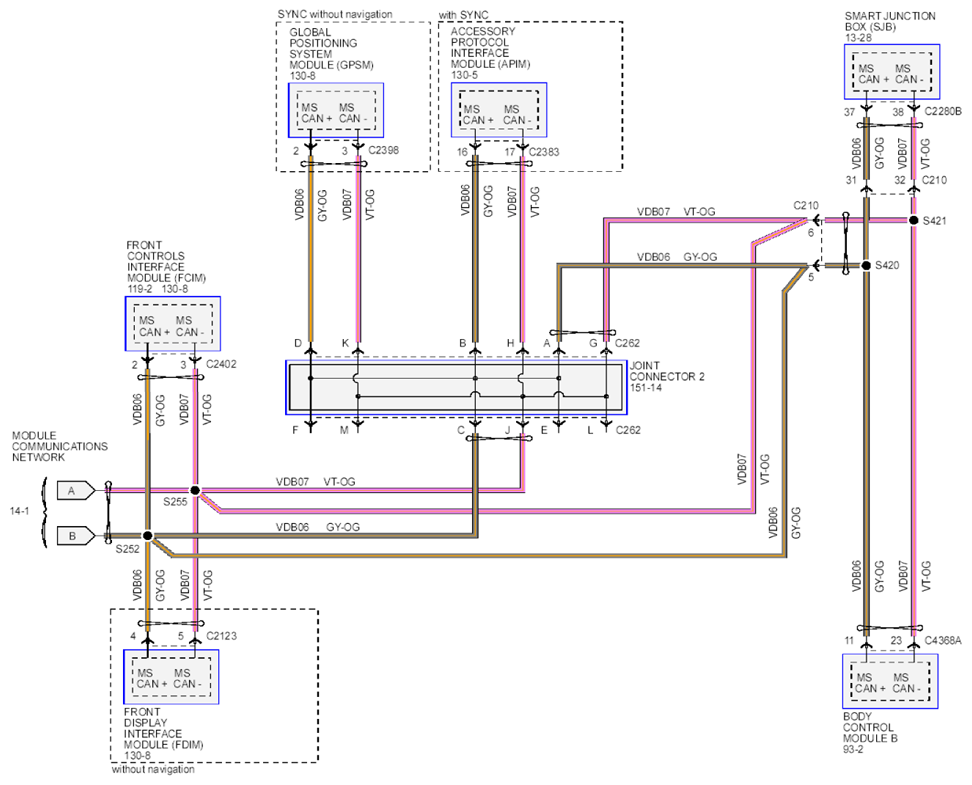

Fig 2: Module Communication Network Circuit Diagram (2 Of 3)
G07881122Courtesy of FORD MOTOR CO.

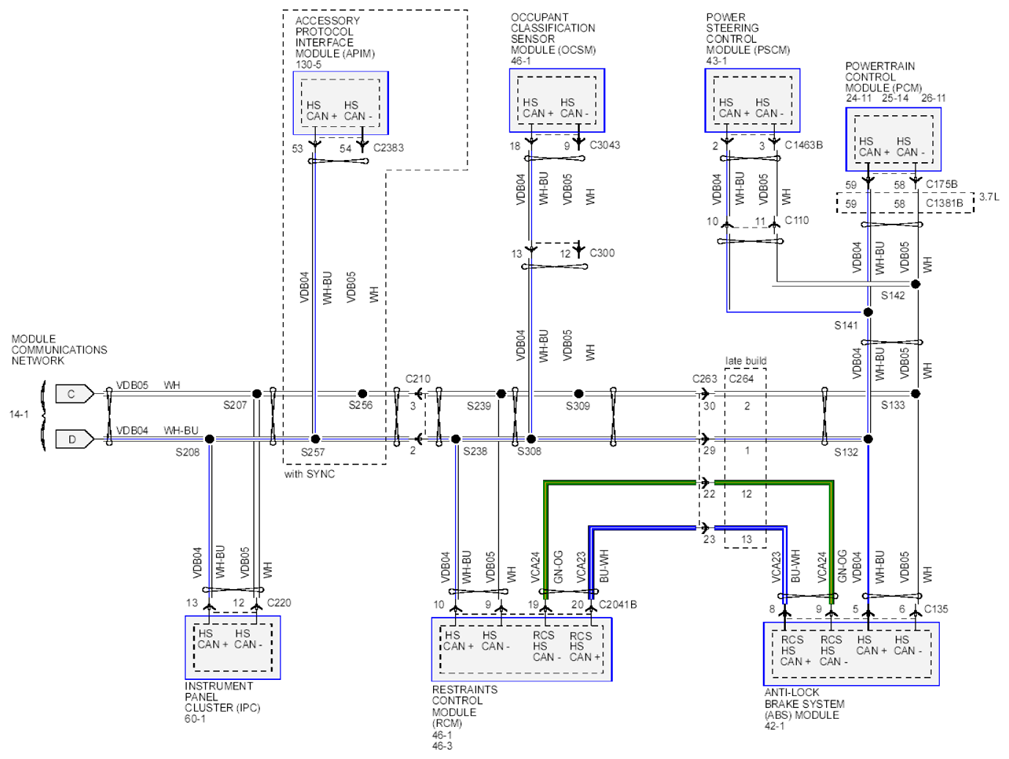

Fig 3: Module Communication Network Circuit Diagram (3 Of 3)
G07881123Courtesy of FORD MOTOR CO.
